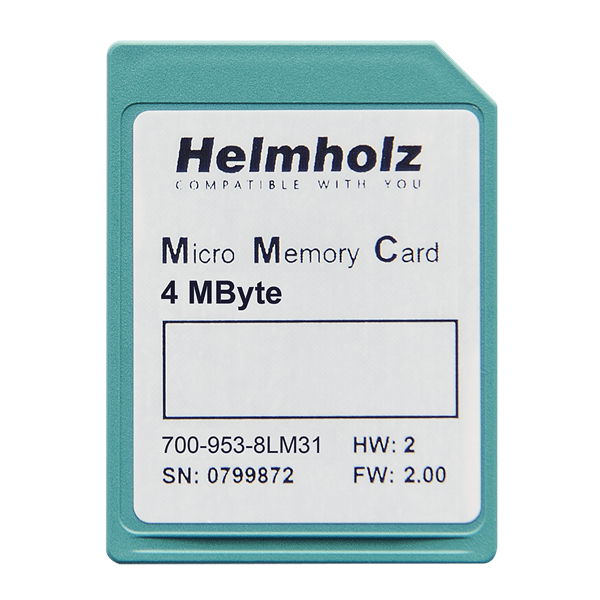

Thẻ nhớ PLC S7-300 4MByte 700-953-8LM31 - header

Thẻ nhớ PLC S7-300 4MByte 700-953-8LM31

Thẻ nhớ PLC S7-300 4MByte 700-953-8LM31

– Tiết kiệm chi phí
– Plug and play
– Dùng cho dòng S7-300
– Có sẵn trực tiếp từ kho Đức

Thẻ nhớ PLC S7-300 4MByte 700-953-8LM31

Thẻ nhớ cho PLC S7-300_1200_1500 - interface

Thẻ nhớ PLC S7-300 4MByte từ Helmholz phù hợp để sử dụng trong dòng S7-300 của Siemens AG

Thẻ nhớ PLC S7-300 - install

Thẻ nhớ tương tự

Thông số kỹ thuật – Thẻ nhớ PLC S7-300 4MByte 700-953-8LM31

Micro Memory Cards for S7 300 series 4 MByte

General information

  • Order number 700-953-8LM31
  • Dimensions (D x W x H) 32 x 24 1,4 mm
  • Article name Micro Memory Card, 4 MByte, for 300 series
  • Scope of delivery Micro Memory Card, 4 MByte

Properties

  • Storage volume 4 MByte
  • Power supply 2.7 … 3.6 V
  • Extended Temperature range -25° … 90°C
  • Number of card insertions/removals > 10,000
  • Max. 16 sectors data loss (old data kept)
  • Four integrated 4KByte Sector Buffers for fast data transfer
  • Fully compliant with MMC Card specification 3.31, 4.1, and 4.2
  • Data Retention: 10 year (JEDEC)
  • 1 bit MMC or SPI data transfer
  • MMC and SPI burst up to 52Mbit/s (6.5 MB/s)
  • Flash burst 33 MB/s
  • RoHS (2002/95/EC) compliant and lead-free

Possible applications

300 compatible controls

  • CPU 312 C
  • CPU 313 C
  • CPU 314 C
  • CPU 312 … 317
  • IM 151
  • IM 153
  • IM 154
  • CPU C7
