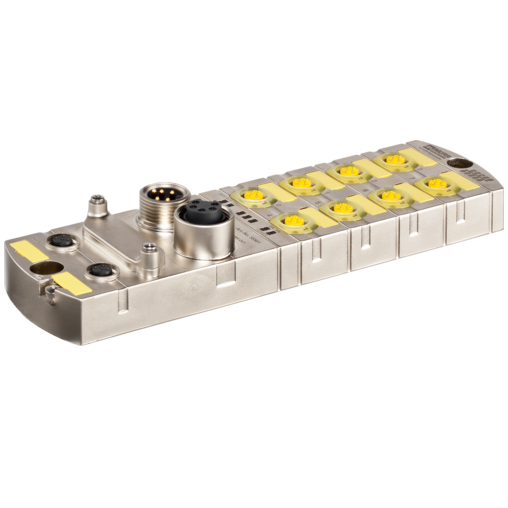

Safe IOs – Profinet DI8/4 F DO4 7/8″ 55557
@ Mô-đun filebus I/O của Murrelektronik 55557 đạt chuẩn an toàn:
– Cat.4/PLe (EN ISO 13849-1)
– SIL3 (IEC 61508)
– SILCL3 (IEC 62061)
@ Mạng Profinet/PROFIsafe, compact, vỏ kim loại
Murrelektronik 55557 – mô-đun filebus I/O đạt chuẩn an toàn: cat.4/PLe (EN ISO 13849-1), SIL3 (IEC 61508), SILCL3 (IEC 62061)
Ethernet 10/100 Mbit/s; Đầu nối dữ liệu M12, D-cod.
Đầu nối nguồn 2 x 7/8″, 5 cực, tối đa 9 A
Đầu nối cho cảm biến M12, 5 cực, A-cod.
Murrelektronik 55563 trong hệ thống mạng Profinet
Thông số kỹ thuật Murrelektronik 55557
SAFETY CODES
| DCavg (EN ISO 13849-1) | 98 % |
| Service life | 20 a |
| Category (EN ISO 13849-1) | 4 |
| PFHd (IEC 61508) | 16,53 E-10/h |
| Performance level (EN ISO 13849-1) | e |
| SIL (IEC 61508) | 3 |
| SIL CL (IEC 62061) | 3 |
ELECTRICAL DATA | SUPPLY
| Norm operating voltage | EN 61131-2 |
| Operating voltage UA DC | 24 V |
| Operating current per pin max. | when using pin 1 and pin 5, when using pin 1 or pin 5, 0.2 A, 0.7 A |
| Total current UA max. | 9 A |
| Total current US max. | 9 A |
ELECTRICAL DATA | INPUT
| Operating voltage F input | 24 V |
| Type Safety input | for electronical sensors or mechanical switches |
ELECTRICAL DATA | OUTPUT
| Output current per pin (safety) max. | 2 A |
INDUSTRIAL COMMUNICATION
| Supported protocol | PROFINET |
INDUSTRIAL COMMUNICATION | PROFINET
| Number of active connections (IO controller) max. | 2 |
| IRT (network communication) | yes |
| MRP client | yes |
| PROFINET addressing | DCP |
| PROFINET conformance class | C |
| PROFINET specification | V2.2 |
| Shared device/input | yes |
DIAGNOSTICS
| Actuator warning | per channel via LED and BUS |
| Diagnostic | No voltage, Under voltage |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Wire break detection | yes |
| Short circuit diagnosis | yes |
| LED display | Ethernet connection/data traffic |
| Cross-link detection | Sensor/Actuator |
| Overload diagnosis | yes |
DEVICE PROTECTION | ELECTRICAL
| Degree of protection (EN IEC 60529) | IP67 |
| Overload resistant | yes |
| Short-circuit protected | yes |
