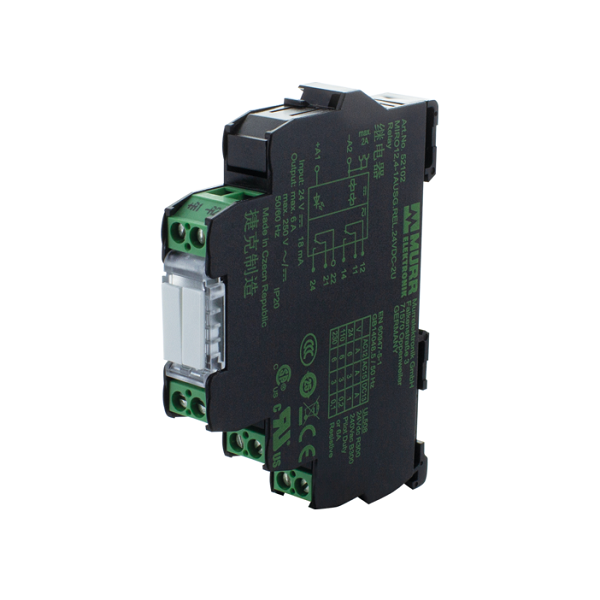

Rơ-le quang điện 24VDC 2 C/O 6A MIRO 52102
– Nguồn cấp 24 V DC, đầu ra 250 V AC/DC
– Đầu ra transistor: 6 A, có thể chọn NO/ NC
– Screw terminals
– Vỏ nhựa, màu: đen
– Có LED báo trạng thái
Rơ-le quang điện 24VDC 2 C/O 6A MIRO 52102
(IN: 24 VDC – OUT: 250 VAC/DC / 6 A)
– Nguồn cấp 24 V DC, đầu ra 250 V AC/DC
– Đầu ra transistor: 6 A, có thể chọn NO/ NC
– Screw terminals
– Kích thước (mm): 70 x 12.4 x 90 mm
Thông số kỹ thuật – Rơ-le quang điện 24VDC 2 C/O 6A MIRO 52102
| Material short text | MIRO12,4-1AUSG.REL.24VDC-2U |
|---|
| Input voltage DC | 24 V |
|---|---|
| Input voltage DC min. | 19,2 V |
| Input voltage DC max. | 30 V |
| Input current | 18 mA |
| Switching voltage AC max. | 250 V |
|---|---|
| Switching voltage DC max. | 250 V |
| Switching current max. | 6 A |
| Switching current DC | 100 mA |
| Switching frequency max. | 10 Hz |
| Power rating AC max. | 1.500 VA |
| Power rating DC max. | 120 W |
| Utilization category AC-12 (EN IEC 60947-5-1) | 6 A @ 24 V 6 A @ 110 V 6 A @ 230 V |
| Utilization category AC-15 (EN IEC 60947-5-1) | 3 A @ 24 V 3 A @ 110 V 3 A @ 230 V |
| Utilization category DC-13 (EN IEC 60947-5-1) | 1 A @ 24 V 0.2 A @ 110 V 0.1 A @ 230 V |
| Status indication LED | green |
|---|
| Condition lifetime | load-dependent |
|---|
| Electrical lifetime | 0 cycles |
|---|---|
| Rated surge voltage | 4 kV |
| Mechanical endurance | 0 cycles |
|---|
| Response time max. | 10 ms |
|---|---|
| Drop-out time max. | 15 ms |
| Bounce time max. | 1,5 ms |
| Material contact | Ag Sn O2 |
|---|
| Height | 90 mm |
|---|---|
| Width | 12,4 mm |
| Depth | 70 mm |
| Mounting method | geschnappt |
| Suitable for mounting type | (EN 60715), mounting rail |
| Operating temperature min. | -20 °C |
|---|---|
| Operating temperature max. | 55 °C |
