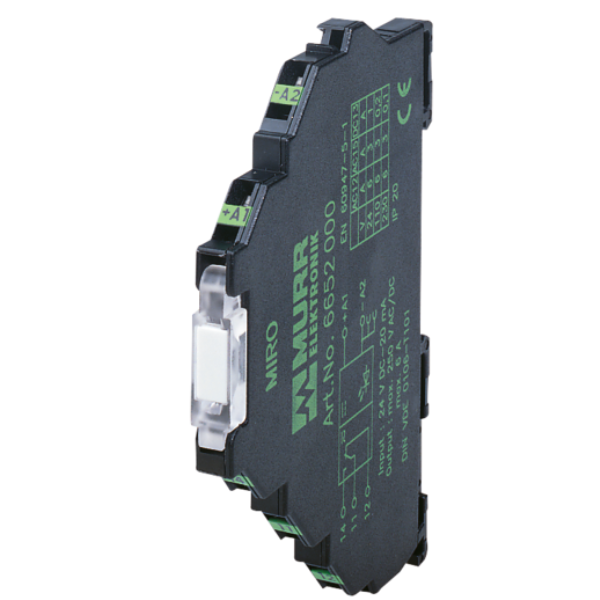

Rờ le Murrelektronik 6652510
– Điện áp hoạt động: 24 VDC
– Đầu ra transistor 0.5 A, có thể chọn NO/ NC
– Spring clamp terminals
– Kích thước (mm): 91 x 6.2 x 90
– Vỏ nhựa, màu: đen
Rờ le Murrelektronik 6652510
(IN: 53 VDC – OUT: 48 VDC / 0,5 A – 1 C/O contact)
– Điện áp hoạt động: 24 VDC
– Đầu ra transistor 0.5 A, có thể chọn NO/ NC
– Spring clamp terminals
– Kích thước (mm): 91 x 6.2 x 90

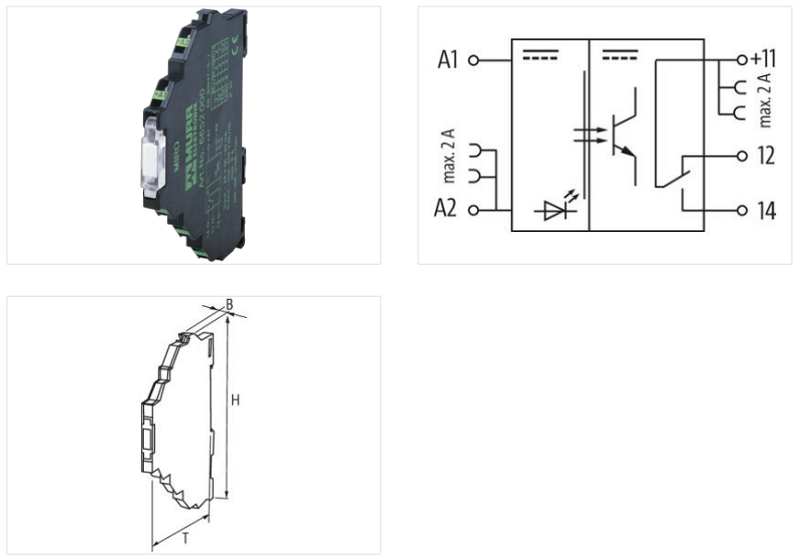

Electrical data | Input
| Input voltage OFF DC min. | 0 V |
| Input voltage OFF DC max. | 5 V |
| Input voltage DC min. | 10 V |
| Input voltage DC max. | 53 V |
| Current input DC | 6,5 mA |
Electrical data | Output
| Switch off delay max. | 150 µs |
| Quiescent current OFF max. | 0,1 mA |
| Switching frequency max. | 10 Hz |
| Voltage switching DC min. | 5 V |
| Switching voltage DC max. | 48 V |
| Switching current min. | 0,1 mA |
| Switching current max. | 0,5 A |
| Voltage drop DC max. | 1,2 V |
Diagnostics
| Status indication LED | yellow |
Device protection | Electrical
| Rated insulation voltage | 3750 V |
Device protection | Media
| Flame resistance | flame retardant |
Mechanical data | Material data
| Color housing | black |
| Material housing | Plastic |
Mechanical data | Mounting data
| Mounting method | geschnappt |
| Suitable for mounting type | mounting rail, (EN 60715) |
| Height | 91 mm |
| Width | 6,2 mm |
| Depth | 70 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
