Rờ le Murrelektronik 52000
– IN: 24 VDC – OUT: 250 VAC/DC / 6 A
– Relay output: NO/NC (SPDT)
– Screw terminal

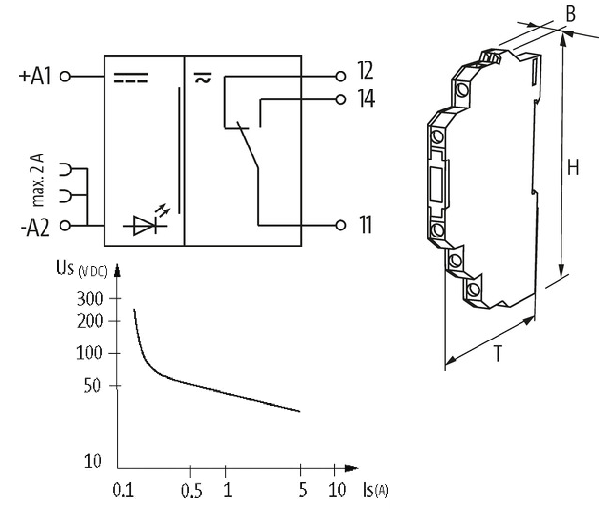

– Kích thước (mm): 91 x 6.2 x 71
Rờ le Murrelektronik 52000
– IN: 24 VDC – OUT: 250 VAC/DC / 6 A
– Ngõ ra relay: NO/NC (SPDT)
– Screw terminal
– Kích thước (mm): 91 x 6.2 x 71
THÔNG SỐ KỸ THUẬT – Rờ le Murrelektronik 52000
Electrical data | Input
| Input voltage DC | 24 V |
| Input voltage DC min. | 19,2 V |
| Input voltage DC max. | 30 V |
| Input current | 14 mA |
Electrical data | Output
| Utilization category AC-12 (EN IEC 60947-5-1) | 6 A @ 24, 6 A @ 110 V, 6 A @ 230 V |
| Utilization category AC-15 (EN IEC 60947-5-1) | 3 A @ 24 V, 3 A @ 110 V, 3 A @ 230 V |
| Utilization category DC-13 (EN IEC 60947-5-1) | 1 A @ 24 V, 0,2 A @ 110 V, 0,1 A @ 230 V |
| Additional condition switching frequency | with load |
| Switching frequency max. | 0,1 Hz |
| Power rating AC max. | 1500 VA |
| Power rating DC max. | 120 W |
| Switching voltage AC max. | 250 V |
| Switching voltage DC max. | 250 V |
| Switching current DC | 100 mA |
| Switching current max. | 6 A |
Diagnostics
| Status indication LED | green |
Device protection
| Condition lifetime | load-dependent |
Device protection | Electrical
| Rated surge voltage | 4 kV |
| Electrical lifetime | 20000000 Cycles |
Device protection | Mechanical
| Mechanical endurance | 20000000 Cycles |
Mechanical data
| Drop-out time max. | 15 ms |
| Response time max. | 10 ms |
| Bounce time max. | 1,5 ms |
