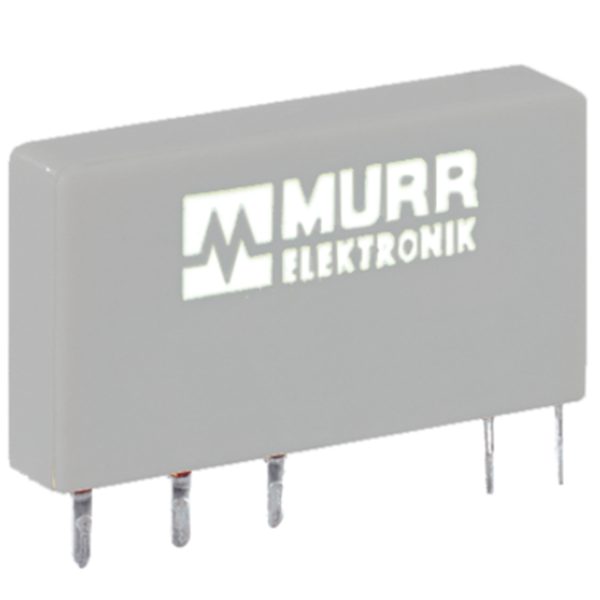

Rơ-le bán dẫn MIRO 6.2 plug-in mô-đun 3000-32522-2100040
– MIRO 6.2 pluggable Plug-in module Optocoupler
– IN: 24 VDC – OUT: 24 VDC / 6 A
– 5 mm Plug-in modul
– IP20
– Kích thước (mm): 15 x 5 x 28
Rơ-le bán dẫn MIRO 6.2 plug-in mô-đun 3000-32522-2100040 được sử dụng để chuyển mạch tín hiệu trong các ứng dụng điện tử hoặc tự động hóa.
– MIRO 6.2 pluggable Plug-in module Optocoupler
– IN: 24 VDC – OUT: 24 VDC / 6 A
– 5 mm Plug-in modul
– IP20
– Kích thước (mm): 15 x 5 x 28
Rơ-le bán dẫn MIRO 6.2 plug-in mô-đun 3000-32522-2100040 – THÔNG SỐ KỸ THUẬT
Electrical data | Input
| Input voltage DC | 24 V |
| Input voltage DC min. | 18 V |
| Input voltage DC max. | 30 V |
| Input current | 9 mA |
Electrical data | Output
| Switch off delay max. | 31 µs |
| Forward voltage max. | 240 mV |
| Switch on delay max. | 15 µs |
| Switching frequency inductive max. | 50 Hz |
| Switching frequency ohmic max. | 500 Hz |
| Voltage switching DC min. | 3 V |
| Switching voltage DC max. | 30 V |
| Switching current min. | 10 mA |
| Switching current max. | 6 A |
Diagnostics
| Status indication LED | yellow |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP20 |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 2,5 kV |
Mechanical data | Mounting data
| Mounting method | inserted |
| Height | 15 mm |
| Width | 5 mm |
| Depth | 28 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 50 °C |
