Rơ-le bán dẫn MIRO 6.2 6652519
– IN: 10-53 VDC – OUT: 5-48 VDC / 6 A

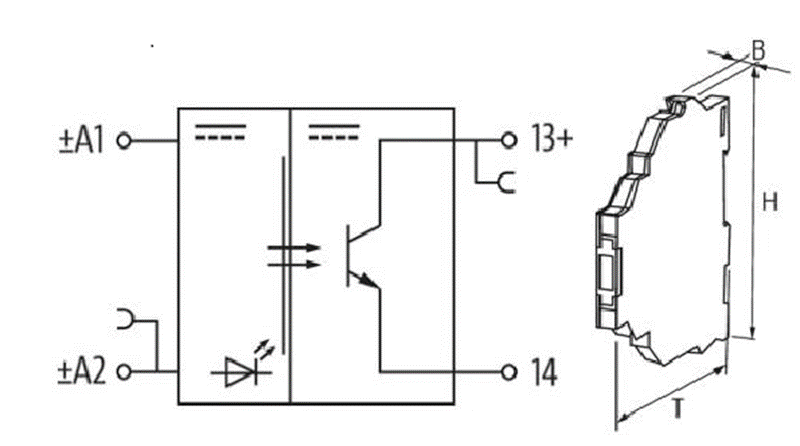

– MIRO 6.2 OPTO-COUPLER MODULE
– 6,2 mm spring clamp
– Kích thước (mm): 78 x 6.2 x 70
Rơ-le bán dẫn MIRO 6.2 6652519 là một thiết bị chuyển mạch 24 VDC sử dụng công nghệ bán dẫn
– IN: 10-53 VDC – OUT: 5-48 VDC / 6 A
– MIRO 6.2 OPTO-COUPLER MODULE
– 6.2 mm spring clamp
– Kích thước (mm): 78 x 6.2 x 70
Rơ-le bán dẫn MIRO 6.2 6652519 – THÔNG SỐ KỸ THUẬT
Electrical data | Input
| Input voltage OFF DC min. | 0 V |
| Input voltage OFF DC max. | 5 V |
| Input voltage DC min. | 10 V |
| Input voltage DC max. | 53 V |
| Current input DC | 10 mA |
Electrical data | Output
| Switch off delay max. | 5 ms |
| Switch on delay max. | 2 ms |
| Quiescent current OFF max. | 0,025 mA |
| Switching frequency inductive max. | 0,1 Hz |
| Switching frequency ohmic max. | 1 Hz |
| Voltage switching DC min. | 5 V |
| Switching voltage DC max. | 48 V |
| Switching current min. | 1 mA |
| Switching current max. | 6 A |
| Voltage drop DC max. | 0,1 V |
Diagnostics
| Status indication LED | yellow |
Device protection | Electrical
| Rated insulation voltage | 2750 V |
Device protection | Media
| Flame resistance | flame retardant |
Mechanical data | Material data
| Color housing | black |
| Material housing | Plastic |
Mechanical data | Mounting data
| Mounting method | geschnappt |
| Suitable for mounting type | mounting rail, (EN 60715) |
| Height | 78 mm |
| Width | 6,2 mm |
| Depth | 70 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
