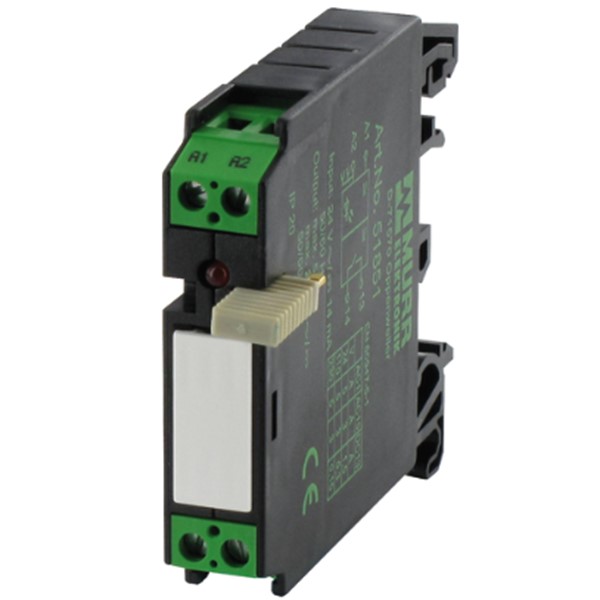

Rơ-le 24 VDC 5A RMM 51851

Rơ-le 24 VDC 5A RMM 51851

– IN: 24 VAC/DC
– OUT: 250 VAC/DC / 5 A
– 1 tiếp điểm N/O; đầu nối kiểu vít 12 mm
– Kích thước (mm): 56 x 12 x 65

Rơ-le 24 VDC 5A RMM 51851: là loại rơ-le công nghiệp gắn trên DIN-rail, dùng để chuyển mạch tín hiệu điều khiển hoặc cách ly tín hiệu từ PLC/ cảm biến…

– IN: 24 VAC/DC
– OUT: 250 VAC/DC / 5 A
– 1 tiếp điểm N/O; đầu nối kiểu vít 12 mm
– Kích thước (mm): 56 x 12 x 65

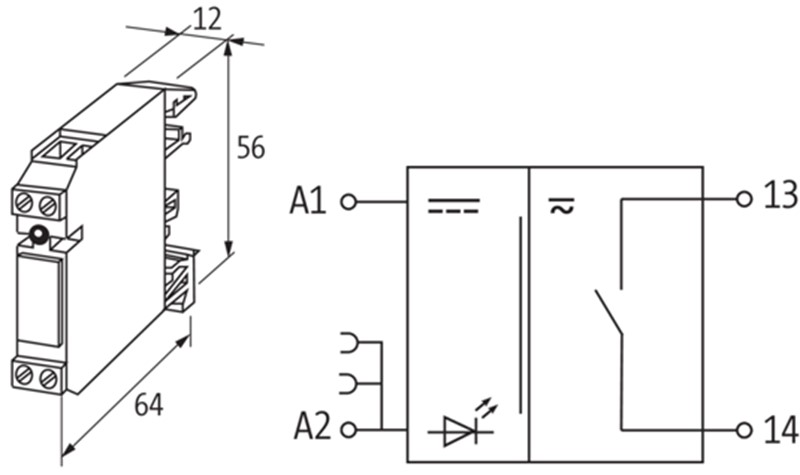

Rơ-le 24 VDC 5A RMM 51851 - detail

Sản phẩm khác

THÔNG SỐ KỸ THUẬT – Rơ-le 24 VDC 5A RMM 51851

Electrical data | Input

Input voltage AC	24 V
Input voltage AC min.	19.2 V
Input voltage AC max.	30 V
Input voltage DC	24 V
Input voltage DC min.	19.2 V
Input voltage DC max.	30 V
Input current	15 mA

Electrical data | Output

Switching voltage AC max.	250 V
Switching voltage DC max.	250 V
Switching current max.	5 A
Switching current DC	100 mA
Switching frequency max.	10 Hz
Power rating AC max.	1,250 VA
Power rating DC max.	240 W
Switching capacity AC-12 (EN IEC 60947-5-1)	5 A (24/110/230 V AC)
Utilization category AC-15 (EN IEC 60947-5-1)	3 A @ 24 V , 3 A @ 110 V , 3 A @ 230 V
Utilization category DC-13 (EN IEC 60947-5-1)	1.5 A @ 24 V , 0.3 A @ 110 V , 0.15 A @ 230 V

Diagnostics

Status indication LED

red

Device protection

Condition lifetime

load-dependent

Device protection | Electrical

Electrical lifetime	10,000,000 Cycles
Rated surge voltage	4 kV

Device protection | Mechanical

Mechanical endurance

10,000,000 Cycles

Mechanical data

Response time max.	10 ms
Drop-out time max.	15 ms
Bounce time max.	1.5 ms

Mechanical data | Material data

Material contact

Ag Ni 0.15 hv

Mechanical data | Mounting data

Height	56 mm
Width	12 mm
Depth	65 mm
Mounting method	geschnappt
Suitable for mounting type	Mounting rail TH35, (EN 60715), G32

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	60 °C
Storage temperature min.	-40 °C
Storage temperature max.	80 °C
