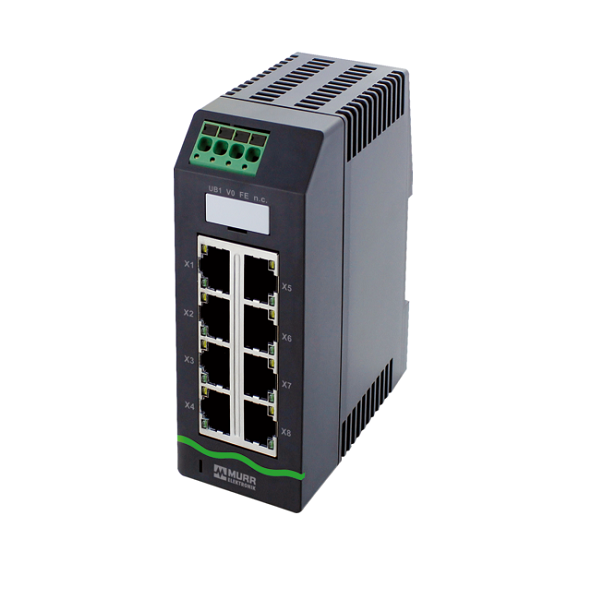

Murrelektronik Xelity 8TX Unmanaged Switch 8 Port 100Mbit 58812
– Switch unmanaged, 8 cổng Ethernet
– Tốc độ truyền dữ liệu tối đa: 100 MBit/s
– Công suất tiêu thụ tối đa: 1.2 W
– Spring clamp terminals FK
– Cổng kết nối: RJ45
– Kích thước: 85.1 x 41.6 x 105 mm
– IP20
Murrelektronik Xelity 8TX Unmanaged Switch 8 Port 100Mbit 58812
– Là bộ switch ethernet, unmanaged, 8 cổng Ethernet
– Tốc độ truyền dữ liệu tối đa: 100 MBit/s
– Công suất tiêu thụ tối đa: 1.2 W
– Spring clamp terminals FK
– Cổng kết nối: RJ45
– Kích thước: 85.1 x 41.6 x 105 mm
Thông số kỹ thuật – Murrelektronik Xelity 8TX Unmanaged Switch 8 Port 100Mbit 58812
Electrical data | Supply
| Operating voltage DC min. | 9,5 V |
| Operating voltage DC max. | 31,5 V |
| Power consumption max. | 1,2 W |
| Current consumption max. | 50 mA |
Industrial communication
| Data transmission rate max. | 100 MBit/s |
Industrial communication | Ethernet functionality
| Auto-crossover | yes |
| Auto-negotiation | yes |
| duplex | Full duplex |
| Switch type | unmanaged |
| VLAN unmanaged (IEEE 802.1Q) | yes |
Diagnostics
| Alarm contact | no |
| Diagnostic | No voltage |
| LED display | Ethernet connection/data traffic |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP20 |
| Invers-polarity protection | yes |
| Over voltage protection | yes |
Mechanical data | Material data
| Color housing | black |
| Material housing | Plastic |
Mechanical data | Mounting data
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, (EN 60715) |
| Height | 105 mm |
| Width | 41,6 mm |
| Depth | 85,1 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 85 °C |
