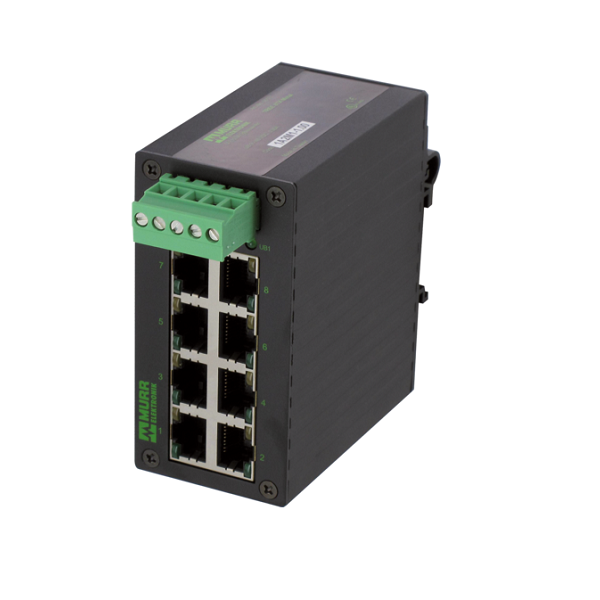

Murrelektronik TREE 8TX METALL – UNMANAGED SWITCH – 8 PORTS 58171

Murrelektronik TREE 8TX METALL – UNMANAGED SWITCH – 8 PORTS 58171
– Switch unmanaged, 8 cổng Ethernet, Gigabit
– Tốc độ truyền dữ liệu tối đa: 100 MBit/s
– Plug-in terminals RK
– Cổng kết nối: RJ45
– Kích thước: 78 x 45.2 x 90 mm
– IP40

Murrelektronik TREE 8TX METALL – UNMANAGED SWITCH – 8 PORTS 58171
– Là bộ switch ethernet, unmanaged, 8 cổng Ethernet, Gigabit
– Tốc độ truyền dữ liệu tối đa: 100 MBit/s
– Plug-in terminals RK

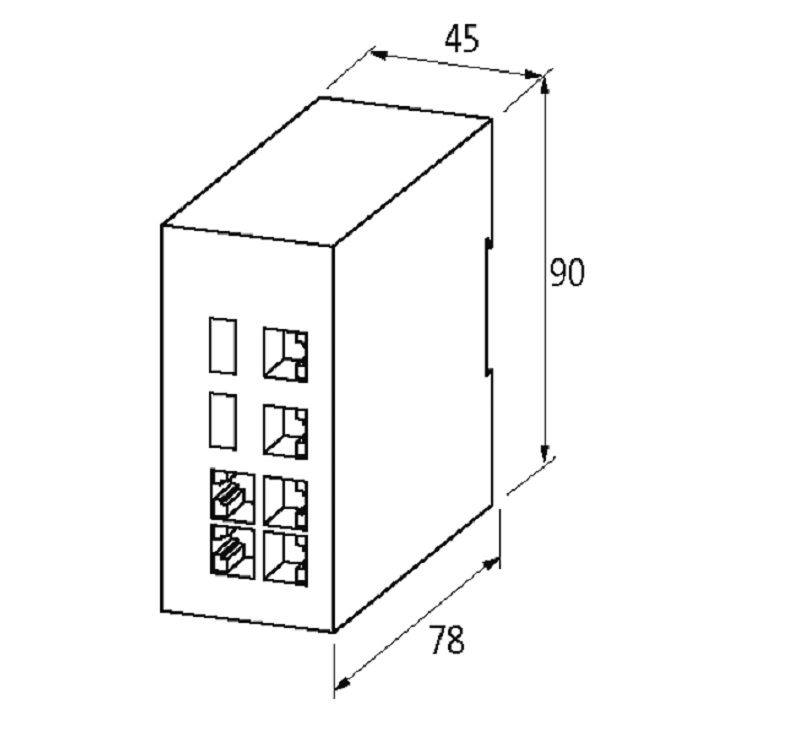

Murrelektronik-TREE-8TX-METALL-UNMANAGED-SWITCH-8-PORTS-58171 - DIMENSION

– Cổng kết nối: RJ45
– Kích thước: 78 x 45.2 x 90 mm

Thông số kỹ thuật – Murrelektronik TREE 8TX METALL – UNMANAGED SWITCH – 8 PORTS 58171

Electrical data | Supply

Operating voltage DC min.	9 V
Operating voltage DC max.	48 V
Current consumption max.	350 mA

Industrial communication

Data transmission rate max.

100 MBit/s

Industrial communication | Ethernet functionality

Auto-crossover	yes
Auto-negotiation	yes
duplex	Full duplex
Switch type	unmanaged
VLAN unmanaged (IEEE 802.1Q)	yes

Diagnostics

Alarm contact	no
Diagnostic	No voltage
LED display	Ethernet connection/data traffic

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP40
Invers-polarity protection	yes
Over voltage protection	yes

Mechanical data | Material data

Color housing	black
Material housing	Metal

Mechanical data | Mounting data

Mounting method	geschnappt
Suitable for mounting type	Mounting rail TH35, (EN 60715)
Height	90 mm
Width	45,2 mm
Depth	78 mm

Environmental characteristics | Climatic

Operating temperature min.	-10 °C
Operating temperature max.	70 °C
Storage temperature min.	-40 °C
Storage temperature max.	85 °C

Datasheet Murrelektronik TREE 8TX METALL – UNMANAGED SWITCH – 8 PORTS 58171
