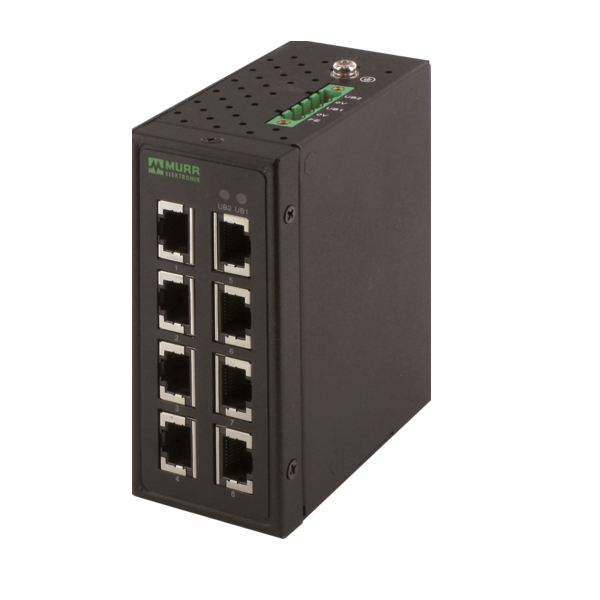

Murrelektronik TREE 8TX META – UNMANAGED SWITCH – 8 PORTS 58152
– Ethernet switch có 8 cổng, unmanaged
– Tốc độ truyền dữ liệu tối đa: 100 MBit/s
– Plug-in terminals RK; (UL-Listed)
– IP50
Murrelektronik TREE 8TX META – UNMANAGED SWITCH – 8 PORTS 58152 là một etnernet switch – umanaged
– Có 8 cổng Ethernet
– Tốc độ truyền dữ liệu tối đa: 100 MBit/s
– Plug-in terminals RK; (UL-Listed)

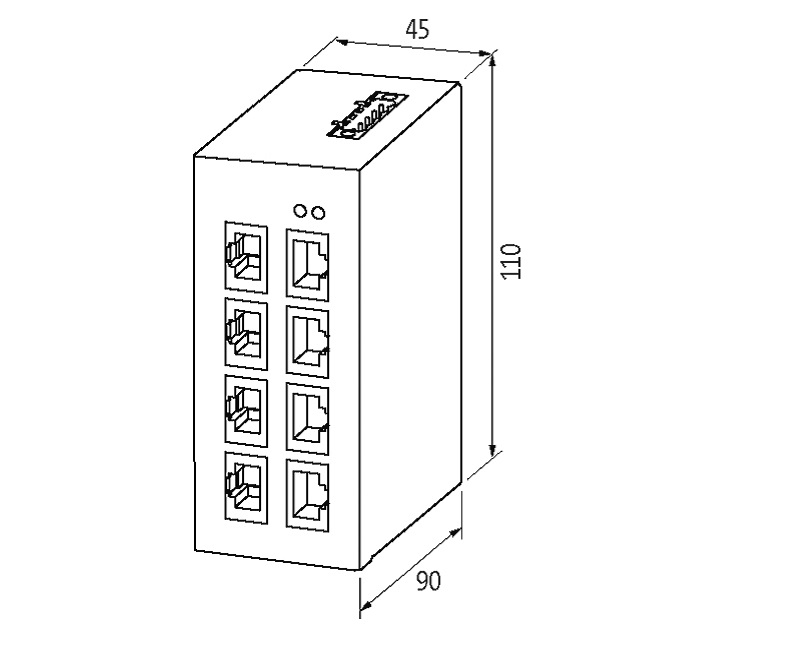

– Kích thước: 43.3 x 89.6 x 110 mm
Thông số kỹ thuật – Murrelektronik TREE 8TX METAL – UNMANAGED SWITCH – 8 PORTS 58152
Electrical data | Supply
| Operating voltage DC min. | 9 V |
| Operating voltage DC max. | 48 V |
Industrial communication
| Data transmission rate max. | 100 MBit/s |
Industrial communication | Ethernet functionality
| Auto-crossover | yes |
| Auto-negotiation | yes |
| duplex | Full duplex |
| Switch type | unmanaged |
| VLAN unmanaged (IEEE 802.1Q) | yes |
Diagnostics
| Alarm contact | no |
| Diagnostic | No voltage |
| LED display | Ethernet connection/data traffic |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP50 |
Mechanical data | Material data
| Color housing | black |
| Material housing | Metal |
Mechanical data | Mounting data
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, (EN 60715) |
| Height | 110 mm |
| Width | 45,3 mm |
| Depth | 89,6 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 85 °C |
