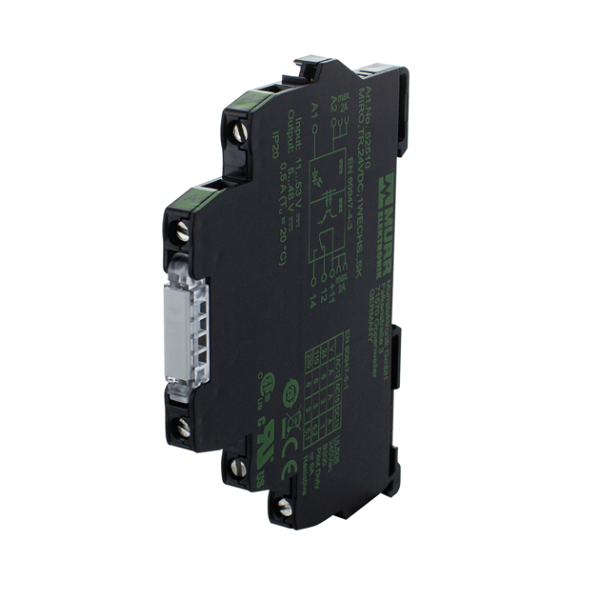

Murrelektronik rơ-le quang Opto-coupler 52510
– IN: 53 VDC – OUT: 48 VDC / 0,5 A
– Ngõ ra relay: NO/NC contact
– Screw terminal
– Kích thước (mm): 91 x 6.2 x 71
Murrelektronik rơ-le quang Opto-coupler 52510
– IN: 53 VDC – OUT: 48 VDC / 0,5 A
– Ngõ ra relay: NO/NC contact
– Screw terminal
– Kích thước (mm): 91 x 6.2 x 71
Thông số kỹ thuật – Murrelektronik rơ-le quang Opto-coupler 52510
Header
| Material short text | MIRO,TR,24VDC,1WECHS.,SK |
Electrical data | Input
| Input voltage DC min. | 10 V |
| Input voltage DC max. | 53 V |
| Input voltage OFF DC min. | 0 V |
| Input voltage OFF DC max. | 5 V |
| Current input AC | 65 mA |
Electrical data | Output
| Voltage drop DC max. | 12 V |
| Quiescent current OFF max. | 0.1 mA |
| Switch on delay max. | 40 µs |
| Switch off delay max. | 150 µs |
| Voltage switching DC min. | 5 V |
| Switching voltage DC max. | 48 V |
| Switching current min. | 0.1 mA |
| Switching current max. | 0.5 A |
| Switching frequency max. | 10 Hz |
Diagnostics
| Status indication LED | yellow |
Device protection | Electrical
| Rated insulation voltage | 3,750 V |
Device protection | Media
| Flame resistance | flame retardant |
Mechanical data | Material data
| Material housing | Plastic |
| Color housing | black |
Mechanical data | Mounting data
| Height | 91 mm |
| Width | 62 mm |
| Depth | 71 mm |
| Mounting method | geschnappt |
| Suitable for mounting type | (EN 60715), mounting rail |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
