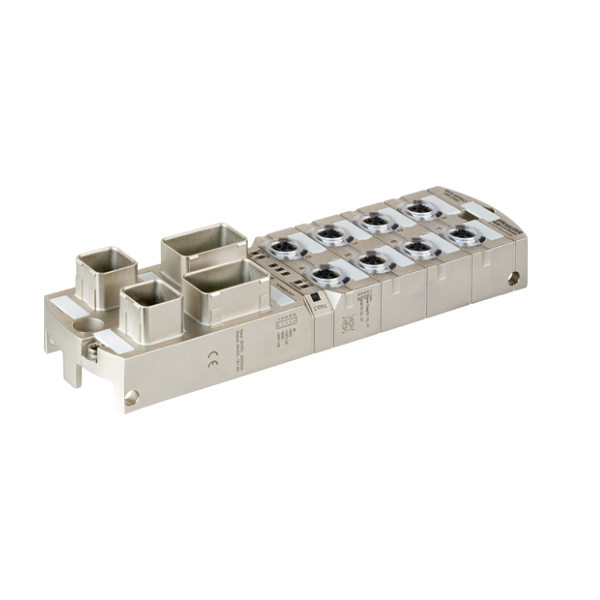

Murrelektronik MVK+ MPNIO DI8 DI8 IRT PUSH PULL 555280

Murrelektronik MVK+ MPNIO DI8 DI8 IRT PUSH PULL 555280 là một I/O mô-đun phân tán dạng fieldbus IP67. Giao thức mạng PROFINET.
Phiên bản vỏ kim loại. Cách ly về điện
– Đầu nối dữ liệu Push Pull RJ45
– DI8 DI8 (IRT); Ethernet 10/100 Mbit/s
– 5 chân kết nối; M12; A-coded

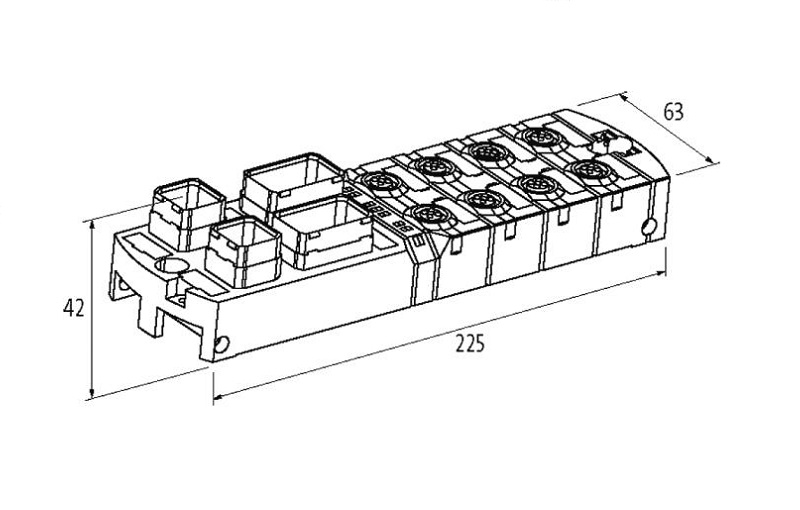

Murrelektronik-MVK-MPNIO-DI8-DI8-IRT-PUSH-PULL-555280 - Dimension
– Điện áp làm việc: 24 V DC
– Dùng cho cảm biến 3 dây hoặc công tắc cơ
– Vỏ bọc có lớp bảo vệ cách điện

Thông số kỹ thuật – Murrelektronik MVK+ MPNIO DI8 DI8 IRT PUSH PULL 555280

Electrical data | Supply

Norm operating voltage	EN 61131-2
Operating voltage US DC	24 V
Total current UA max.	12 A
Total current US max.	12 A

Electrical data | Input

Overload resistant	yes
Short-circuit protected	yes
Type input	PNP, for 3-wire sensors or mechanical switches
Sensor current US per input max.	0,2 A

Industrial communication

Supported protocol

PROFINET

Industrial communication | Profinet

Number of active connections (IO controller) max.	2
FSU (Fast-Start-Up)	yes
Fast start up time max.	0,5 s
IRT (network communication)	yes
MRP client	yes
PROFINET Netload Class	III
PROFINET addressing	DCP
PROFINET conformance class	C
PROFINET specification	V2.2
Shared device/input	yes

Diagnostics

Actuator warning	per channel via LED and BUS
Diagnostic	No voltage, Under voltage
Diagnostic via BUS	per module and channel
Diagnostic via LED	per module and channel
Short circuit diagnosis	yes
LED display	Ethernet connection/data traffic
Cable break	per port
Overload diagnosis	yes

Device protection | Electrical

Degree of protection (EN IEC 60529)

IP67

Mechanical data | Mounting data

Suitable for mounting type	2-hole screw mounting
Height	42,7 mm
Width	63 mm
Depth	225 mm

Environmental characteristics | Climatic

Operating temperature min.	0 °C
Operating temperature max.	55 °C
Storage temperature min.	-20 °C
Storage temperature max.	70 °C
