Murrelektronik MST 1-PHASE CONTROL AND ISOLATION 86153

Murrelektronik MST 1-PHASE CONTROL AND ISOLATION 86153

– Công suất: 2000 VA
– Điện áp đầu vào: 208…550 VAC
– Điện áp đầu ra: 2×115 VAC
– Lớp cách ly T 40/B

Murrelektronik MST 1-PHASE CONTROL AND ISOLATION 86153 là biến áp cách ly 1 pha, series MST

– Công suất điện làm việc: 2000VA
– Điện áp đầu vào: 208…550VAC
– Điện áp đầu ra: 2x115VAC

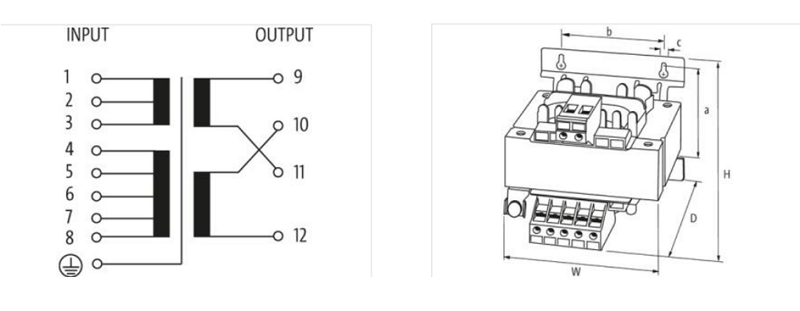

Murrelektronik MST 1-PHASE CONTROL AND ISOLATION 86153 - detail

– Lớp cách ly T 40/B
– Khối lượng: 27,5 kg
– Xuất xứ: Cộng hỏa Séc

Thông số kỹ thuật – Murrelektronik MST 1-PHASE CONTROL AND ISOLATION 86153

Electrical data | Supply

Power frequency 50 … 60 Hz

Electrical data | Input

Input voltage 1 AC 208 V
Input voltage 2 AC 550 V
Input voltage AC 208, 230, 380, 400, 420, 440, 460, 480, 500, 525, 550
Input current at input voltage 1 AC 10,2 A
Input current at input voltage 2 AC 3,86 A
Inrush current at input voltage 1 179 A
Inrush current at input voltage 2 68 A
Short-circuit current at input voltage 1 473 A
Short-circuit current at input voltage 2 180 A

Electrical data | Output

Output voltage 1 × 230 / 1 × 115 / 2 × 115 V AC
Output voltage AC 1 230 V
Output voltage AC 2 115 V
Output voltage adjustable yes
Power rating AC max. 2000 VA

Device protection | Electrical

Insulation test voltage input – output 4 kV

Mechanical data | Mounting data

Suitable for mounting type Schlüssellochaufhängung
Mounting dimension a 155 mm
Mounting dimension b 150 mm
Mounting dimension c 10 mm
Height 185 mm
Width 192 mm
Depth 185 mm
Diameter bore 10 mm
Length bore 18 mm

Environmental characteristics | Climatic

Operating temperature min. -20 °C
Operating temperature max. 40 °C
Storage temperature min. -40 °C
Storage temperature max. 80 °C

Conformity

Product standard EN 61558-1, EN 61558-2-4, EN 62041 category 0

Datasheet Murrelektronik MST 1-PHASE CONTROL AND ISOLATION 86153
