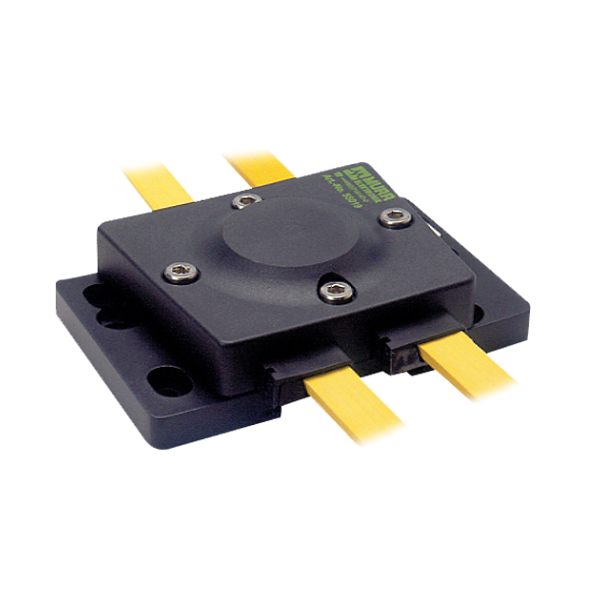

Murrelektronik MASI67 INSTALLATION TECHNOLOGY 55034
– Bộ chuyển đổi MASI67
– 1x profile – 3x profile cable
– Điện áp: 36 V DC
– Kích thước: 26 x 74 x 90 mm
– Screwed
– IP67
Murrelektronik MASI67 INSTALLATION TECHNOLOGY 55034
– Bộ chuyển đổi MASI67
– 1x profile – 3x profile cable
– Điện áp: 36 V DC
– Lắp đặt kiểu vit
– Kích thước: 26 x 74 x 90 mm
Thông số kỹ thuật – Murrelektronik MASI67 INSTALLATION TECHNOLOGY 55034
Electrical data | Supply
| Operating voltage DC max. | 36 V |
| Total current max. | 8 A |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Insulation strength ASI/Power | 200 V |
Mechanical data | Mounting data
| Mounting method | screwed, geschnappt |
| Suitable for mounting type | mounting rail, (EN 60715) |
| Height | 90 mm |
| Width | 74 mm |
| Depth | 26 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 80 °C |
Conformity
| Product standard | EN 60664-1 |
