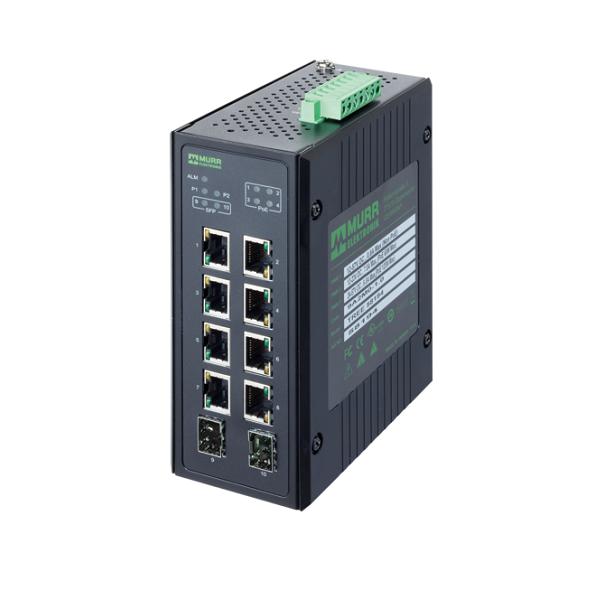

Murrelektronik 58194 10 Port unmanaged Gigabit Switch 4 PoE 2 SFP Ports IP20 metal
– 10 cổng Gigabit Ethernet
– Có 4 cổng POE; 2 cổng SFP
– Điện nguồn: 24 V DC
– Tốc độ truyền tín hiệu: 1000 MBit/s
– Plug-in terminals RK
– IP20
Murrelektronik 58194 – 10 Port unmanaged Gigabit Switch 4 PoE 2 SFP Ports IP20 metal là một Ethernet switch unmanaged
– 10 cổng Gigabit Ethernet
– Có 4 cổng POE; 2 cổng SFP
– Điện áp đầu vào: 24 V DC
– Tốc độ truyền tín hiệu: 1000 MBit/s
– Plug-in terminals RK
Thông số kỹ thuật – Murrelektronik 58194 10 Port unmanaged Gigabit Switch 4 PoE 2 SFP Ports IP20 metal
Electrical data | Supply
| Operating voltage DC min. | 12 V |
| Operating voltage DC max. | 57 V |
| PoE voltage amplifier | yes |
Industrial communication
| Data transmission rate max. | 1000 MBit/s |
Industrial communication | Ethernet functionality
| Auto-crossover | yes |
| Auto-negotiation | yes |
| duplex | Full duplex |
| Switch type | unmanaged |
| VLAN unmanaged (IEEE 802.1Q) | yes |
Diagnostics
| Alarm contact | yes |
| Diagnostic | No voltage |
| LED display | Ethernet connection/data traffic |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP20 |
Mechanical data | Material data
| Color housing | black |
| Material housing | Metal |
Mechanical data | Mounting data
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, (EN 60715) |

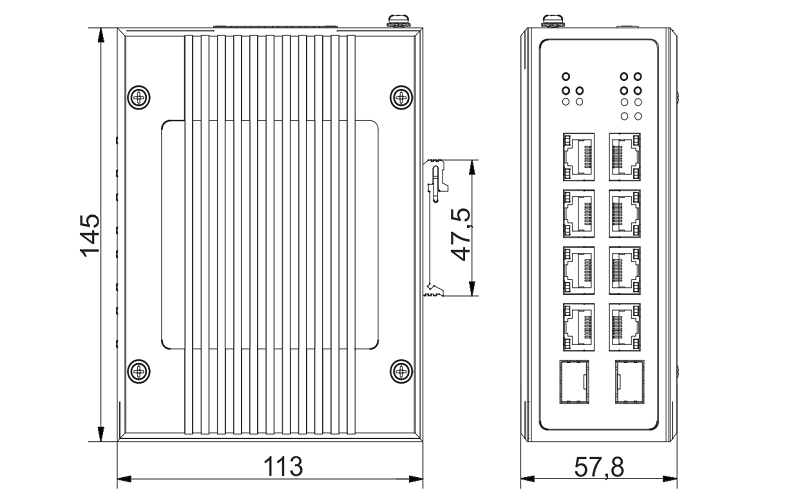

| Height | 145 mm |
| Width | 57,8 mm |
| Depth | 113 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 85 °C |
