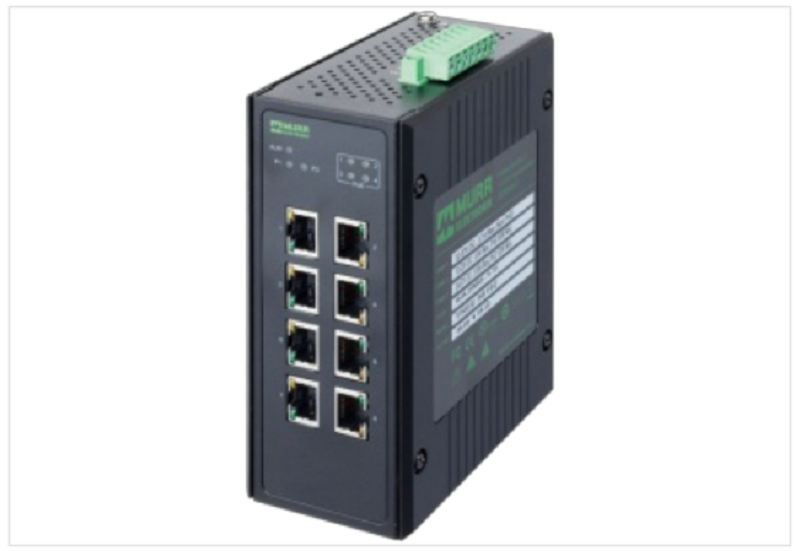

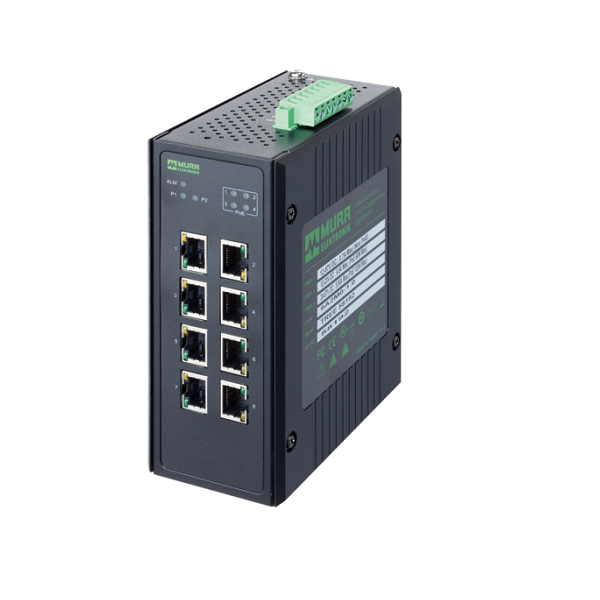

Murrelektronik 58192 8 Port unmanaged Gigabit Switch 4 PoE Ports IP20 metal
– Có 8 cổng Ethernet Gigabit; 4 cổng PoE
– Tốc độ truyền dữ liệu: 1000 MBit/s
– Điện áp làm việc: 24 V
– Plug-in terminals RK
– Kích thước: 113 x 57.8 x 145 mm
– IP20
Murrelektronik 58192 8 Port unmanaged Gigabit Switch 4 PoE Ports IP20 metal là một Ethernet switch, unmanaged của Murrelektronik
– Có 8 cổng Ethernet Gigabit; 4 cổng PoE
– Tốc độ truyền dữ liệu: 1000 MBit/s
– Điện áp nguồn: 24 V
– Plug-in terminals RK
– Kích thước: 113 x 57.8 x 145 mm
Thông số kỹ thuật – Murrelektronik 58192 8 Port unmanaged Gigabit Switch 4 PoE Ports IP20 metal
Electrical data | Supply
| Operating voltage DC min. | 12 V |
| Operating voltage DC max. | 57 V |
| PoE voltage amplifier | yes |
Industrial communication
| Data transmission rate max. | 1000 MBit/s |
Industrial communication | Ethernet functionality
| Auto-crossover | yes |
| Auto-negotiation | yes |
| duplex | Full duplex |
| Switch type | unmanaged |
| VLAN unmanaged (IEEE 802.1Q) | no |
Diagnostics
| Alarm contact | yes |
| Diagnostic | No voltage |
| LED display | Ethernet connection/data traffic |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP20 |
Mechanical data | Material data
| Color housing | black |
| Material housing | Metal |
Mechanical data | Mounting data
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, (EN 60715) |
| Height | 145 mm |
| Width | 57,8 mm |
| Depth | 113 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 85 °C |
