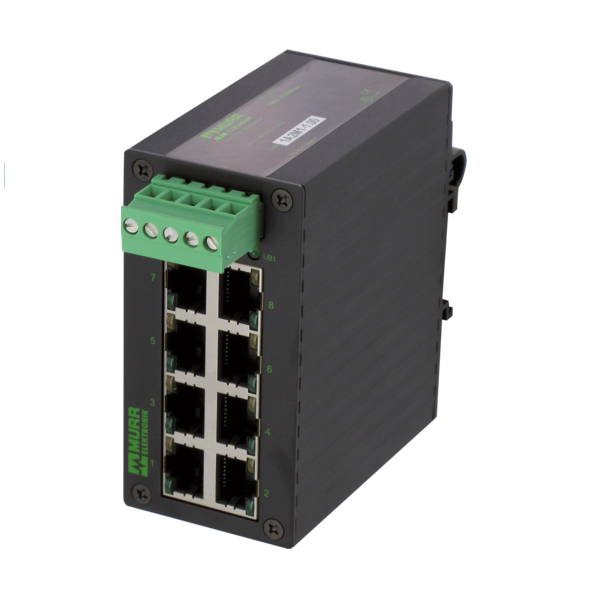

Murrelektronik 58173 TREE 8TX Metal GE
– Là bộ switch ethernet, unmanaged, 8 cổng, Gigabit
– Plug-in terminals RK
– Cổng kết nối: RJ45
– Kích thước: 78.7 x 45.2 x 90 mm
Murrelektronik 58173 TREE 8TX Metal GE
– Switch unmanaged, 8 cổng Gigabit
– Tốc độ truyền dữ liệu tối đa: 1000 MBit/s
– Kích thước: 78.7 x 45.2 x 90 mm
– Plug-in terminals RK
– IP40
Murrelektronik 58173 TREE 8TX Metal GE
– Là bộ switch ethernet, unmanaged, 8 cổng, Gigabit
– Plug-in terminals RK
– Cổng kết nối: RJ45
– Kích thước: 78.7 x 45.2 x 90 mm
Thông số kỹ thuật – Murrelektronik 58173 TREE 8TX Metal GE
Electrical data | Supply
Operating voltage DC min. | 9 V |
Operating voltage DC max. | 48 V |
Current consumption max. | 450 mA |
Industrial communication
Data transmission rate max. | 1000 MBit/s |
Industrial communication | Ethernet functionality
Auto-crossover | yes |
Auto-negotiation | yes |
duplex | Full duplex |
Switch type | unmanaged |
VLAN unmanaged (IEEE 802.1Q) | yes |
Diagnostics
Alarm contact | no |
Diagnostic | No voltage |
LED display | Ethernet connection/data traffic |
Device protection | Electrical
Degree of protection (EN IEC 60529) | IP40 |
Invers-polarity protection | yes |
Over voltage protection | yes |
Mechanical data | Material data
Color housing | black |
Material housing | Metal |
Mechanical data | Mounting data
Mounting method | geschnappt |
Suitable for mounting type | Mounting rail TH35, (EN 60715) |

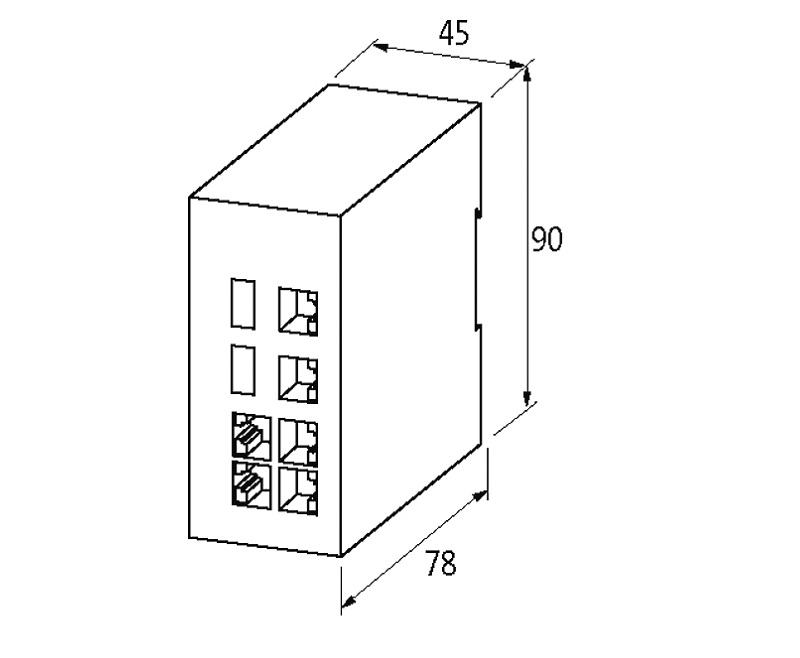

Height | 90 mm |
Width | 45,2 mm |
Depth | 78,7 mm |
Environmental characteristics | Climatic
Operating temperature min. | -10 °C |
Operating temperature max. | 70 °C |
Storage temperature min. | -40 °C |
Storage temperature max. | 85 °C |
