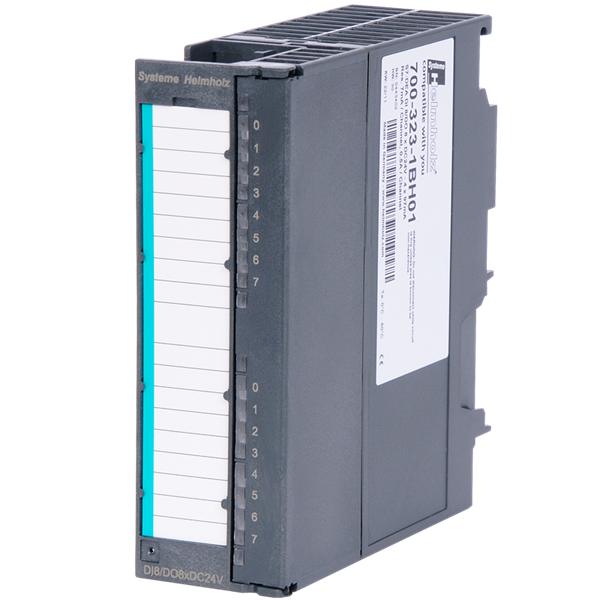

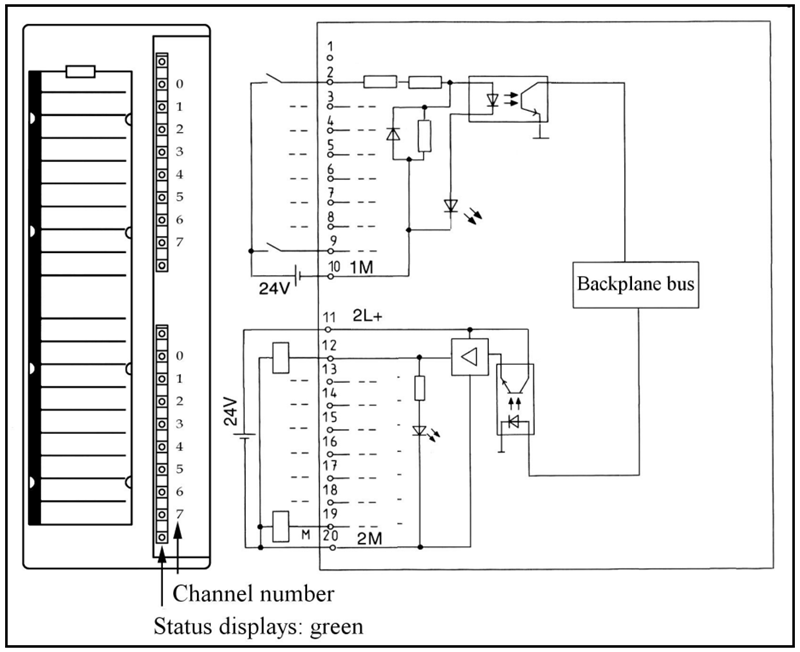

Mô-đun ngõ vào ra số 8 input 8 output DEA 300 700-323-1BH01

General information

• Order number 700-323-1BH01
• Article name DEA 300, DC 24 V, 0.5 A, 8 inputs (DC 24 V)/8 outputs (DC 24 V, 0.5 A)
• Scope of delivery DEA 300, DC 24 V, 0.5 A, 8 inputs (DC 24 V)/8 outputs (DC 24 V, 0.5 A)
• Dimensions (DxWxH) 116 x 40 x 125 mm
• Weight Approx. 220g
• Number of inputs 8
• Number of outputs 8
• Rated value 0.5 A
• Short-circuit protection Electronic
• Inductive cutoff voltage limit -48 V
• Power dissipation (nominal operation) typ. 3.5 W
• Front connectors 20-pin

Input voltage

• For signal “0” -3 … +5 V
• For signal “1” +13 … +30 V
• Rated value 24 V DC
• Input current for signal “1” typ. 7 mA
• Delay time 1.2 … 4.8 ms
• Can accommodate 2-wire initiator Yes

Cable length

• Unshielded 600 m
• Shielded 1000 m

Electrical isolation

• from the backplane bus Yes (optocoupler)
• in groups to 8

Supply voltage UP, US

• Rated value 24 V DC
• Ripple USS max. 3.6 V
• Permissible range (with ripple) +20 … +30 V

Current draw

• Internal (backplane bus) typ. 55 mA
• External (from +24 V/L+) Max. 60 mA

Ambient conditions

• Ambient temperature 0 °C … +60 °C
• Transport and storage temperature -25 °C … +75 °C
• Pollution degree 2
• Protection rating IP20
• Approvals CE
