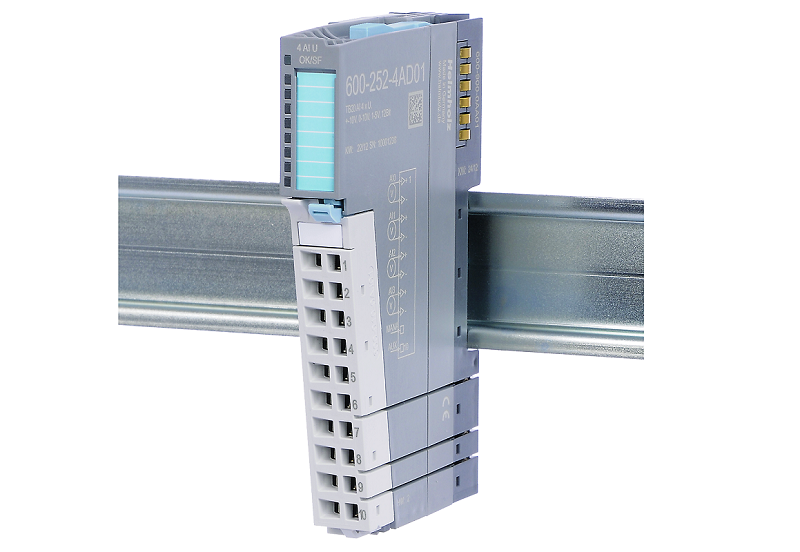

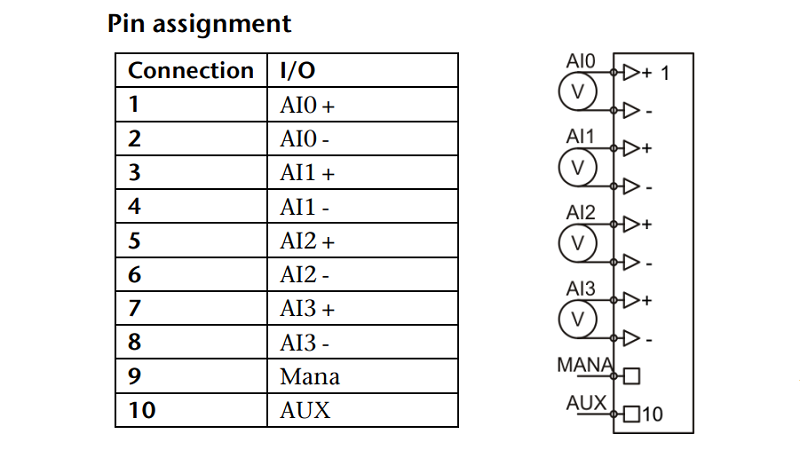

Mô-đun ngõ vào 4AI điện áp DC 12bit

General information

• Order number 600-252-4AD01
• Article name AI 4x U, ±10 V, 0-10 V, 1-5 V, 12 bits
• Scope of delivery AI 4x U, ±10 V, 0-10 V, 1-5 V, 12 bits
• Dimensions (DxWxH) 110 x 14 x 73 mm
• Weight Approx. 70 g
• Internal Max. 95 mA
• Power dissipation Max. 0.7 W

Electrical isolation

• from the backplane bus Yes
• Between the channels No
• Parameter configuration length 22 bytes
• General error indicator Red LED
• Hot-swap capable Yes
• Hot-swap capable Yes

Measuring

• Measuring ranges / load resistance
  • 0 … 10 V/30 kohm,
  • 1 … 5 V/30 kohm,
  • ±10 V/30 kohm,
  • ±5 V/30 kohm,
  • ±2,5 V/30 kohm
• Measuring method Integration
• Measurement resolution 11 bit + sign
• Interference frequency suppression None | 10 Hz | 50 Hz | 60 Hz | 400 Hz
• Interference frequency suppression None | 10 Hz | 50 Hz | 60 Hz | 400 Hz
• Refresh rate / conversion rate
  • Number of active channels x conversion time +16 ms for wire break detection for each channel when activated.
  • The conversion time will depend on the interference frequency suppression:
  • None: 8 ms
  • 400 Hz: 45 ms
  • 60 Hz: 109 ms
  • 50 Hz: 128 ms
  • 10 Hz: 342 ms
• Diagnoses Upper measuring range limit exceeded (overflow), lower measuring range limit fallen below (underflow), wire break (for 1 … 5 V only), parameter assignment error
• Process alarms Upper and lower limit per channel

Error limits

• Operational error limit in the entire temperature range ±0.5 % relative to the nominal range
• Basic error limit at 25 °C ±0.3 % relative to the nominal range
• Temperature error ±0.005 %/K relative to the nominal range
• Linearity error ±0.05 %/K relative to the nominal rangesv
• Repeating accuracy in steady state at 25 °C ±0.05 %/K relative to the nominal range
• Repeating accuracy in steady state at 25 °C ±0.05 %/K relative to the nominal range

Ambient conditions

• Ambient temperature 0 °C … +60 °C
• Transport and storage temperature -20 °C … +80 °C
• Relative air humidity -20 °C … +80 °C 95 % r H without condensation
• Protection rating IP 20
• Certifications CE, UL

UL

• Surrounding Air Temperature 0 °C … +60°C
• Pollution degree 2

CE

• Noise immunity DIN EN 61000-6-2 “EMC Immunity”
• Interference emission DIN EN 61000-6-4 “EMC Emission”
• Vibration and shock resistance DIN EN 60068-2-6:2008 „Vibration“, DIN EN 60068-2-27:2010 „Shock”
• RoHS Yes
• REACH Yes
