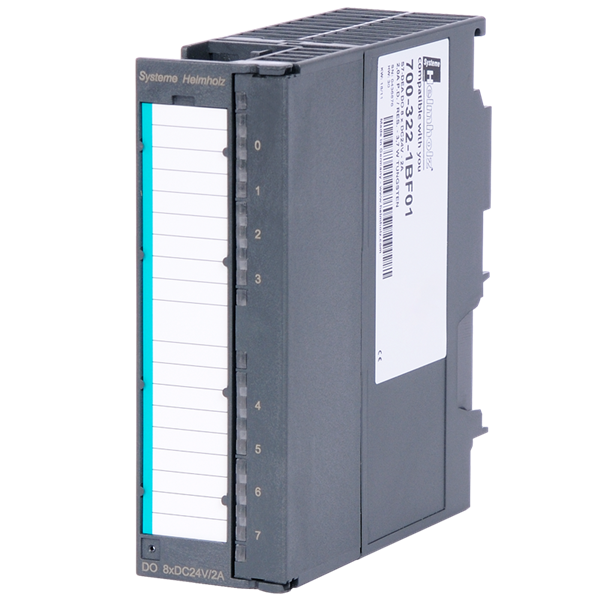

Mô-đun ngõ ra số 8-output 24 VDC 2 A DEA 300 700-322-1BF01

General information

• Order number 700-322-1BF01
• Article name DEA 300, DC 24 V, 2 A, 8 outputs
• Scope of delivery DEA 300, DC 24 V, 2 A, 8 outputs
• Dimensions (DxWxH) 116 x 40 x 125 mm
• Weight Approx. 220g
• Number of outputs 8
• Rated value 2 A
• Power dissipation (nominal operation) typ. 6.8 W
• Front connectors 20-pin

Electrical isolation

• from the backplane bus Yes (optocoupler)
• in groups to 4

Supply voltage UP, US

• Rated value 24 V DC
• Ripple USS max. 3.6 V
• Permissible range (with ripple) +20 … +30 V
• Voltage for t < 10 ms max. 40 V

Short-circuit protection

• Short-circuit protection Electronic
• Short-circuit current Typ. 12 A clocked
• Inductive cutoff voltage limit -23 V

Cable length

• Unshielded max. 600 m
• Shielded max. 1000 m

Current draw

• Current draw typical typ. 40 mA
• Current draw maximal Max. 60 mA

Ambient conditions

• Ambient temperature 0 °C … +60 °C
• Transport and storage temperature -25 °C … +75 °C
• Pollution degree 2
• Protection rating IP20
• Approvals CE
