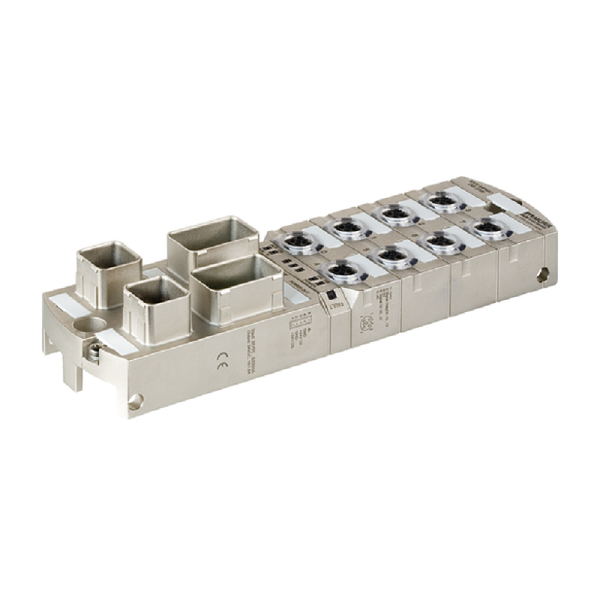

Mô-đun I/O phân tán mạng Profinet IP67 DIO8 55529

Mô-đun I/O phân tán mạng Profinet IP67 DIO8 55529: là một module I/O phân tán (Distributed I/O Module) IP67

– DI8 DO8, M12, 5 chân, A-coded
– Tốc độ truyền tín hiệu Ethernet: 10/100 Mbit/s
– Lắp đặt: 2-hole screw mounting
– Điện áp nguồn: 24 V DC

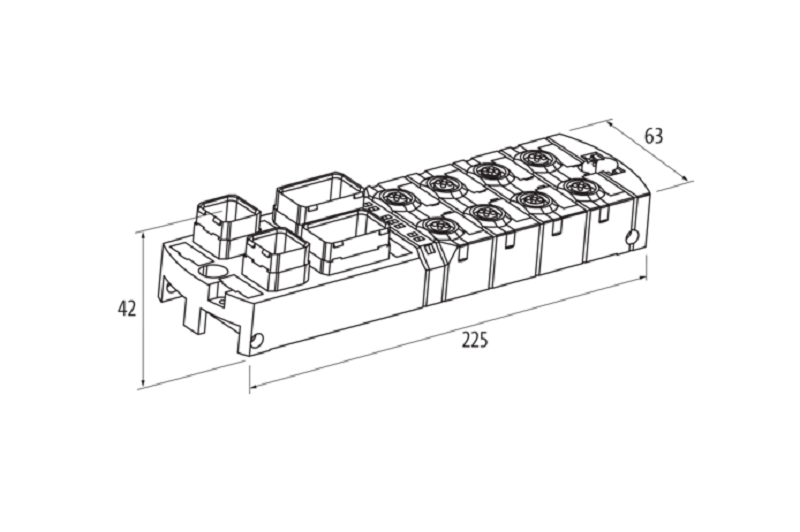

Mô-đun I/O phân tán mạng Profinet IP67 DIO8 55529 - DIMENSION

– Cổng kết nối Ethernet: RJ45
– KÍch thước: 225 x 63 x 39 mm

Thông số kỹ thuật – Mô-đun I/O phân tán mạng Profinet IP67 DIO8 55529

Electrical data | Supply

Electrical data | Input

Sensor current US per input max.	0.2 A
Short-circuit protected	yes
Overload resistant	yes
Type input	for 3-wire sensors or mechanical switches, PNP

Electrical data | Output

Industrial communication

Supported protocol	PROFINET

Industrial communication | Profinet

PROFINET conformance class	C
PROFINET addressing	DCP
PROFINET Netload Class	III
PROFINET specification	V2.2
IRT (network communication)	yes
MRP client	yes
FSU (Fast-Start-Up)	yes
Fast start up time max.	0.5 s
Shared device/input	yes
Number of active connections (IO controller) max.	2

Diagnostics

Actuator warning	per channel via LED and BUS
Short circuit diagnosis	yes
Overload diagnosis	yes
Cable break	per port
Diagnostic	No voltage, Under voltage
Diagnostic via BUS	per module and channel
Diagnostic via LED	per module and channel
LED display	Ethernet connection/data traffic

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP67

Mechanical data | Mounting data

Environmental characteristics | Climatic
