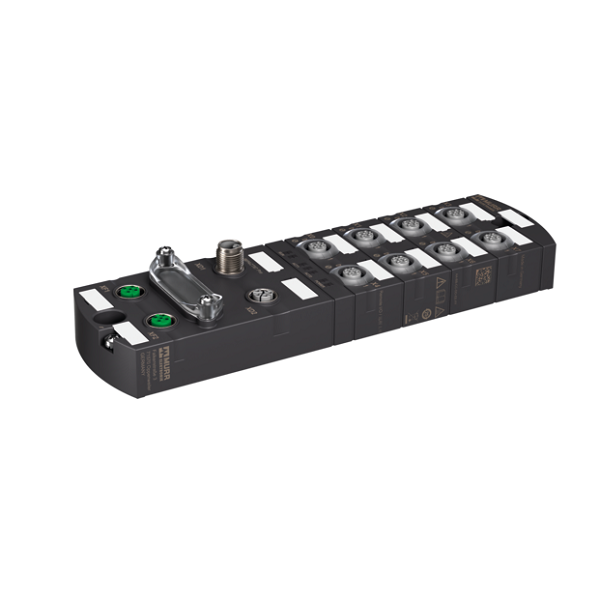

Mô-đun I/O mạng EtherCAT DIO8 IOL8 IMPACT67

Mô-đun I/O mạng EtherCAT DIO8 IOL8 IMPACT67 54632: là một thiết bị mô-đun I/O phân tán Ethernet/IP dạng fieldbus IP67

– Kiểu tín hiệu PNP, dành cho cảm biến 3 dây hoặc công tắc cơ học; Thiết bị IO-Link
– M12 Power, 5 chân, L-coded
– M12, 5 chân, A-coded
– 2-hole screw mounting

Mô-đun I/O mạng EtherCAT DIO8 IOL8 IMPACT67 54632 - DETAIL

– Điện áp nguồn: 24 V DC

Sản phẩm tương tự

Thông báo kỹ thuật – Mô-đun I/O mạng EtherCAT DIO8 IOL8 IMPACT67 54632

Header

Material short text	IMPACT67 Pro EC DIO8 IOL8 M12L 5P

Electrical data | Supply

Norm operating voltage	IEC/EN 61131-2
Operating voltage US DC	24 V
Total current US max.	16 A
Operating voltage UA DC	24 V
Total current UA max.	16 A

Electrical data | Input

Sensor current US per input max.	2 A
Current carrying capacity max.	10 A
Short-circuit protected	yes
Overload resistant	yes
Type input	for 3-wire sensors or mechanical switches, IO-Link Devices, PNP

Electrical data | Output

Output current per pin max.	2 A
Max. current output per port	4 A
Actuator current UA per output max.	2 A
Total current outputs max.	10 A
Overload resistant	yes
Short-circuit protected	yes

Industrial communication

Web interface	yes

Industrial communication | Bus data

Address setting type	automatic, Rotary switch
SYNC manager	4

Industrial communication | Ethercat

Protocols EtherCAT	CoE, FoE, EoE, AoE
EtherCAT function	ESM, EMCY
FMMU	8

Industrial communication | IO-Link

IO-Link type	8× Master
Port Class	A, B
IO-Link transmission rate	COM1, COM2, COM3
IO-Link process data length input	32 bytes
IO-Link process data length output	32 bytes
Automatic baudrate detection	yes

Industrial communication | IIoT functions

JSON integration	REST-API, MQTT
OPC UA transport	UA TCP, UA Binary Encoding, UA Secure Conversation
Publishing interval OPC UA min.	100 ms
Number of sessions / clients OPC UA max.	5
Voltage monitoring	yes
Current Monitoring	yes

Diagnostics

Actuator warning	per channel via LED and BUS
Temperature control	yes
Cable break	per port
Diagnostic via BUS	per module and channel
Diagnostic via LED	per module and channel
LED display	Ethernet connection/data traffic
IO-Link events	Undervoltage supply, No voltage

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP67

Mechanical data | Mounting data

Height	37 mm
Width	63 mm
Depth	225 mm
Suitable for mounting type	2-hole screw mounting

Environmental characteristics | Climatic

Operating temperature min.	-40 °C
Operating temperature max.	70 °C
Storage temperature min.	-40 °C
Storage temperature max.	80 °C
