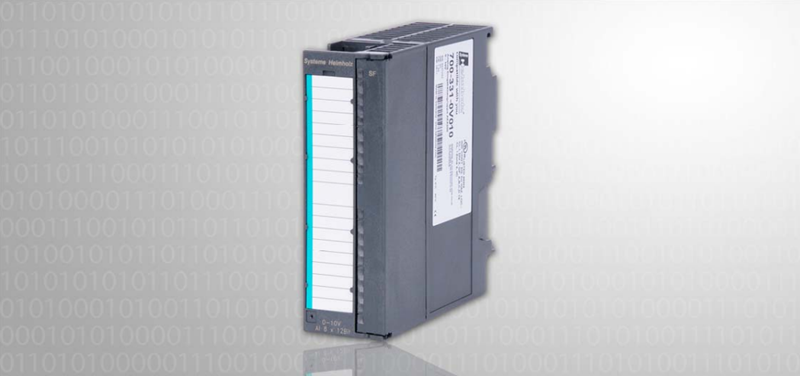

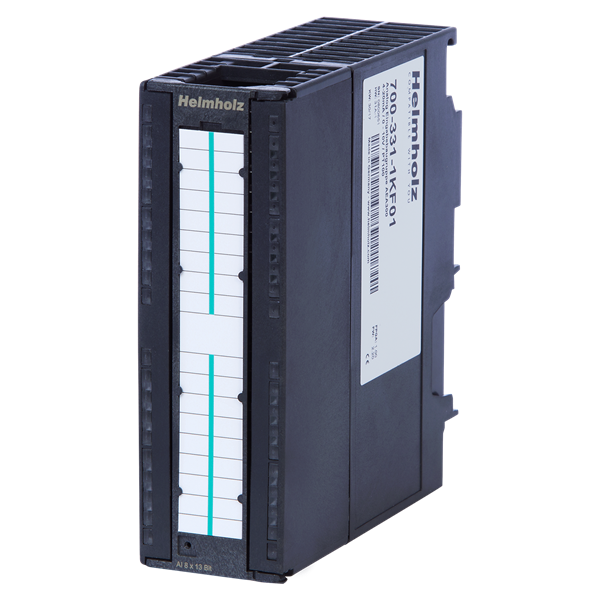

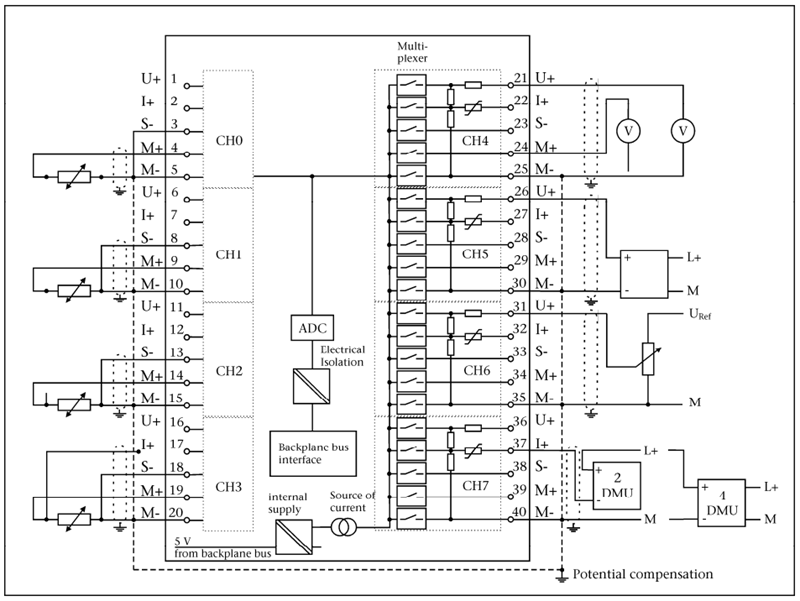

Mô-đun 8 ngõ vào analog dòng áp DC và RTD dùng cho S7-300 700-331-1KF01

General information

• Order number 700-331-1KF01
• Article name AEA 300, 8 inputs, for connection of current, voltage transmitters, resistors
• Scope of delivery AEA 300, 8 inputs, for connection of current, voltage transmitters, resistors
• Dimensions (DxWxH) 116 x 40 x 125 mm
• Weight Approx. 220g
• Power dissipation (nominal operation) ca. 0.8 W
• Front connectors 40-pin

Measuring ranges

• Voltage ±50 mV, ±500 mV, ±1 V, ±5 V, ±10V, 1 … 5V, 0 … 10 V
• Current ±20 mA, 0 … 20 mA, 4 … 20 mA
• Resistance 0 … 6 kΩ, 0 … 600 Ω
• Resistance thermometer (standard and climate) Pt100, Ni100, Ni1000, LG-Ni1000

Basic error limit at 25 °C

• Voltage input ±0.4 %
• Current input ±0.4 %
• Resistance ±0.4 %
• Resistance thermometer ± 0.8 K Pt100 standard, ±1 K

Operational error limit in the entire temperature range

• Voltage input ±0.6 %
• Current input ±0.6 %
• Resistance ±0.6 %
• Resistance thermometer ±1 K, Pt100, Ni100, standard ±1.2 K

Voltage supply

• Voltage supply 5 V DC via backplane bus
• Current draw Typ. 160 mA at 5 V (from backplane bus)

Ambient conditions

• Ambient temperature 0 °C … +60 °C
• Transport and storage temperature -25 °C … +75 °C
• Pollution degree 2
• Protection rating IP20
• Approvals CE
