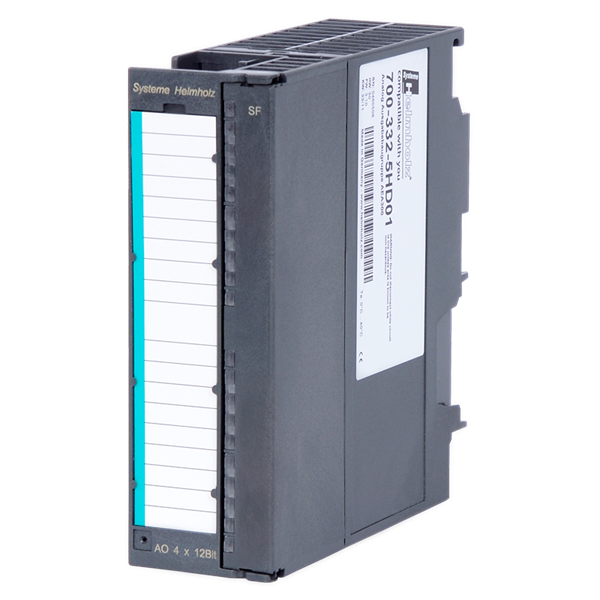

Mô-đun 4 ngõ ra analog dòng áp DC của Helmholz 700-332-5HD01

General information

• Order number 700-332-5HD01
• Article name AEA 300, 0-10 V/ 4 -20 mA, 4-channel
• Scope of delivery AEA 300, 0-10 V/ 4 -20 mA, 4-channel
• Dimensions (DxWxH) 116 x 40 x 125 mm
• Weight Approx. 220g
• Number of outputs 2
• Diagnostic alarm Yes, parameterizable
• Diagnoses Red LED for group error indicator
• Load voltage L+/L –24 V DC
• Shielded 200 M
• Power dissipation (nominal operation) typ. 3 W

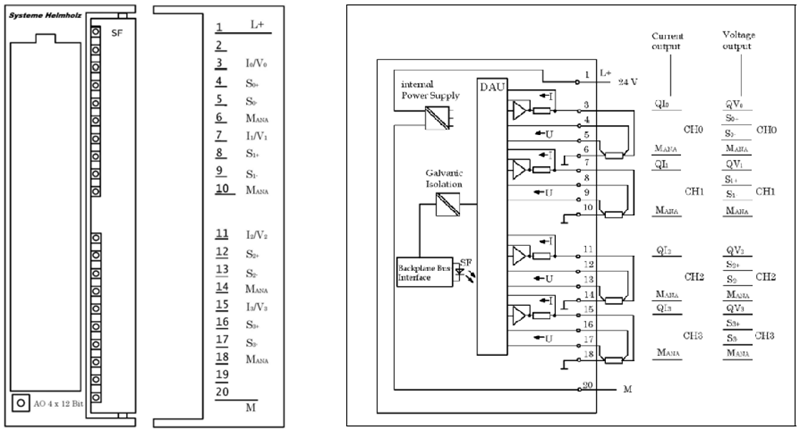

• Front connectors 20-pin

Output ranges

• Voltage outputs 0 … 10 V, ±10 V, 1 … 5 V
• Current outputs 4 … 20 mA, ±20 mA, 0 … 20 mA

Measuring ranges / load resistance

• With voltage outputs min. 1 kΩ
• With current outputs max. 500 Ω
• Under capacitive load max. 1 μF
• Under inductive load max. 10 mH

Short-circuit protection

• Short-circuit protection Yes
• Short-circuit current Max. 25 mA
• No-load voltage max. 18 V
• Isolation from the backplane bus Yes

Operational error limit in the entire temperature range

• Voltage input ±0.5%
• Current input ±0.6%

Basic error limit at 25 °C

• Voltage input ±0.4 %
• Current input ±0.5 %

Current draw

• External 240 mA
• Internal (backplane bus) 100 mA

Ambient conditions

• Ambient temperature 0 °C … +60 °C
• Transport and storage temperature -25 °C … +75 °C
• Pollution degree 2
• Protection rating IP20
• Approvals CE
