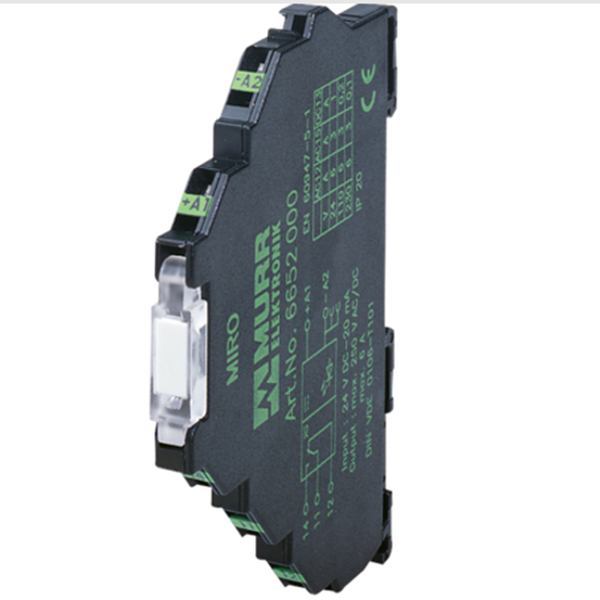

MIRO 6.2 opto-coupler module 526071 (Murrelektronik)
– IN: 35 VDC – OUT: 30 VDC / 0.2 A max. 20 kHz
– Đầu nối spring clamp
– Kích thước (mm): 91 x 6.2 x 70
MIRO 6.2 opto-coupler module 526071 (Murrelektronik) là một loại module rơ-le cách ly quang (opto-coupler) do Murrelektronik sản xuất, dùng để cách ly tín hiệu điện trong công nghiệp
– IN: 35 VDC – OUT: 30 VDC / 0.2 A max. 20 kHz
– Đầu nối kiểu spring clamp
– Kích thước (mm): 91 x 6.2 x 70
– Slim 6.2 mm
THÔNG SỐ KỸ THUẬT – MIRO 6.2 opto-coupler module 526071 (Murrelektronik)
Electrical data | Input
| Input voltage OFF DC min. | 0 V |
| Input voltage OFF DC max. | 5 V |
| Input voltage DC min. | 10 V |
| Input voltage DC max. | 35 V |
| Input current DC max. | 6 mA |
Electrical data | Output
| Switch off delay max. | 7 µs |
| Switch on delay max. | 5 µs |
| Quiescent current OFF max. | 0,025 mA |
| Switching frequency inductive max. | 200 Hz |
| Switching frequency ohmic max. | 20000 Hz |
| Voltage switching DC min. | 10 V |
| Switching voltage DC max. | 30 V |
| Switching current min. | 1 mA |
| Switching current max. | 0,2 A |
| Voltage drop AC max. | 0,3 V |
| Voltage drop DC max. | 0,3 V |
Diagnostics
| Status indication LED | green |
Device protection | Electrical
| Rated surge voltage | 2,5 kV |
Device protection | Media
| Flame resistance | flame retardant |
Mechanical data | Material data
| Color housing | black |
| Material housing | Plastic |

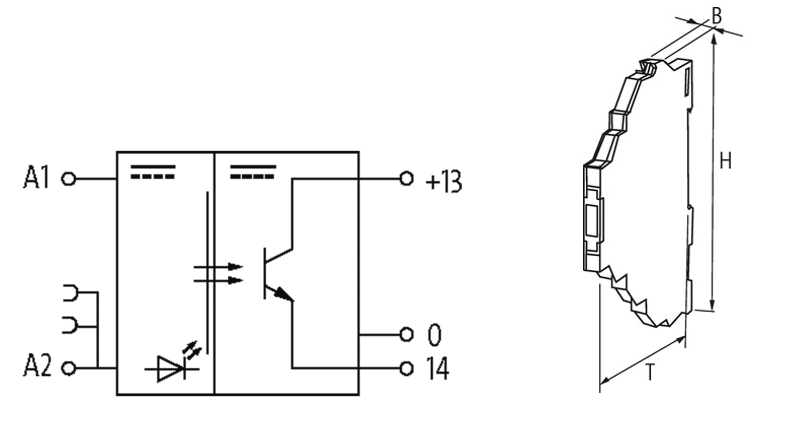

Mechanical data | Mounting data
| Mounting method | geschnappt |
| Suitable for mounting type | mounting rail, (EN 60715) |
| Height | 91 mm |
| Width | 6,2 mm |
| Depth | 70 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
