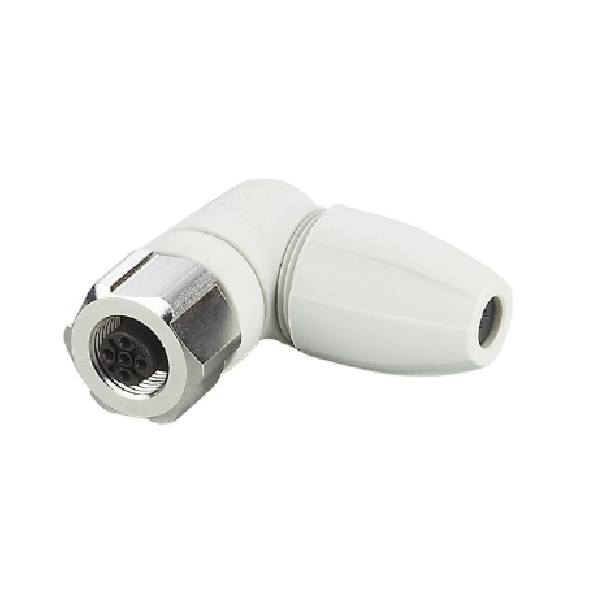

M12 Wirable socket IFM EVF566
– Là đầu nối 90°, M12
– Female (đầu nối cái), 4 chân, A-cod.
– IP65; IP67; IP68; IP69K
M12 Wirable socket IFM EVF566 là đầu nối 90°, 4 chân, female (đầu nối cái), M12, A-cod.
– Screw terminals: 0.25…1 mm²; Cable sheath: Ø 3.5…6 mm; AWG 23…17
– Connector: 1 x M12, angled; coding: A; Moulded body: PA 6.6, grey; Locking: stainless steel (316L/1.4404); Sealing: EPDM
Wirable socket M12 IFM EVF566 – độ tin cậy cao, dải nhiệt độ hoạt động rộng, kết nối dạng ốc vít chắc chắn, phù hợp với môi trường khắc nghiệt trong công nghiệp
Thông số kỹ thuật – M12 Wirable socket IFM EVF566
| Special feature | Free from silicone; Gold-plated contacts |
| Application | hygienic and wet areas in the food industry |
| Free from silicone | yes |
| Operating voltage[V] | < 250 AC / < 300 DC |
| Protection class | II |
| Max. current load total[A] | 4; (…40 °C) |
| Ambient temperature[°C] | -25…100 | |
| Storage temperature[°C] | -25…55 | |
| Storage humidity[%] | 10…100 | |
| Other climatic conditions for storage according to stated class |
|
|
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Weight[g] | 41.8 |
| Moulded-body material | PA 6.6 |
| Material nut | stainless steel (316L/1.4404) |
| Sealing material | EPDM |
| Pack quantity | 1 pcs. |
| screw terminals: 0.25…1 mm²; Cable sheath: Ø 3.5…6 mm; AWG 23…17 |
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: PA 6.6, grey; Locking: stainless steel (316L/1.4404); Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6…1.2 Nm; Take into account the maximum value of the counterpart! |
