IMPACT67 EthernetIP I/O module Murrelektronik 55143
IMPACT67 Ethernet/IP I/O module Murrelektronik 55143
– Hỗ trợ mạng Ethernet/IP
– 14 DIO, 2 IO-link master
– PNP input/ Output max. 1.6 A
– IP67. Housing fully potted

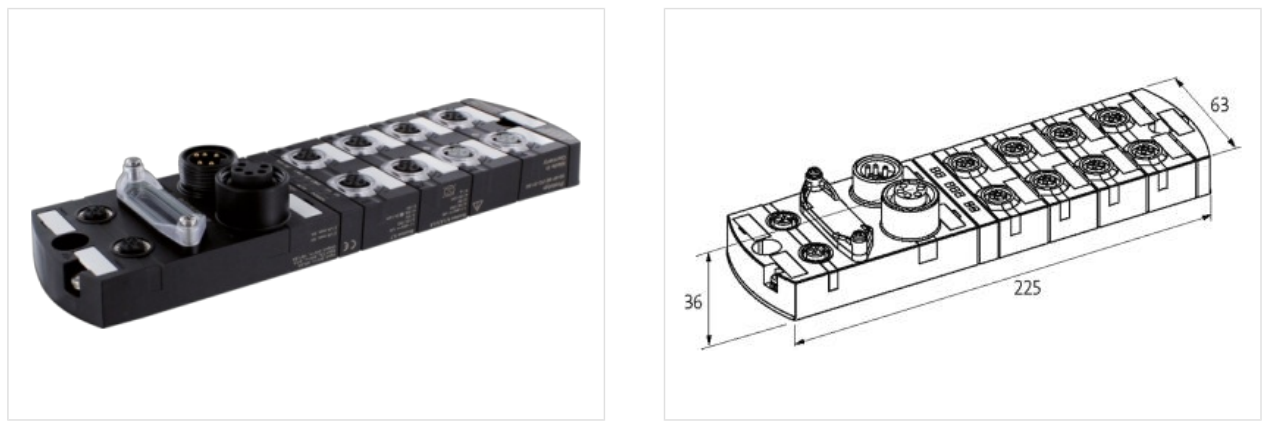

IMPACT67 Ethernet/IP I/O module Murrelektronik 55143 là I/O mô-đun phân tán mạng Ethernet/IP dạng fieldbus IP67
Hỗ trợ giao thức mạng Ethernet/IP

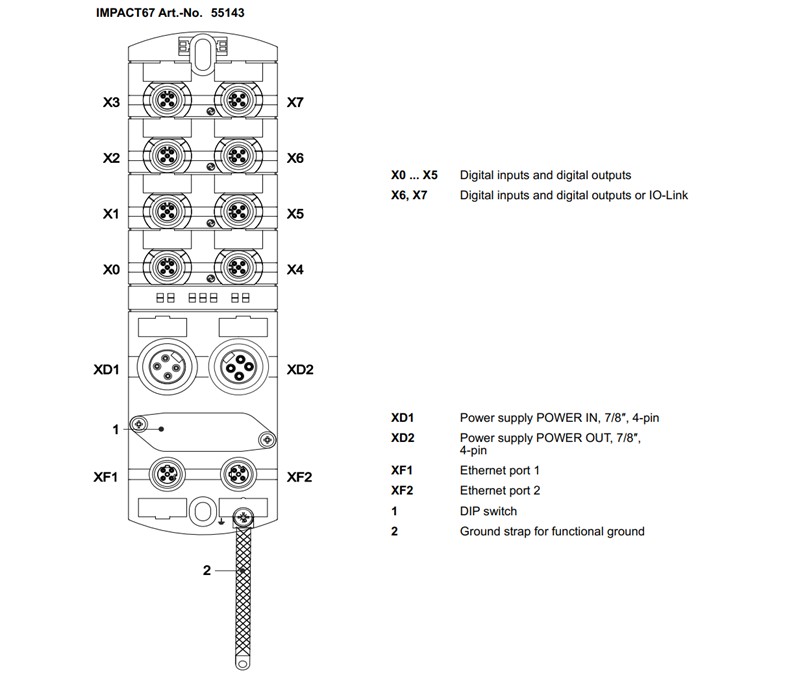

– Ethernet 10/100 Mbit/s; M12, D-coded
– Cấp nguồn qua cổng 7/8″, 4-pole, 2× max. 9 A
– Cổng tín hiệu M12, 5-pole, A-coded
– DLR (Device Level Ring)
– Tích hợp 14 DIO, 2 IOL
– IO-Link Master V1.1.2

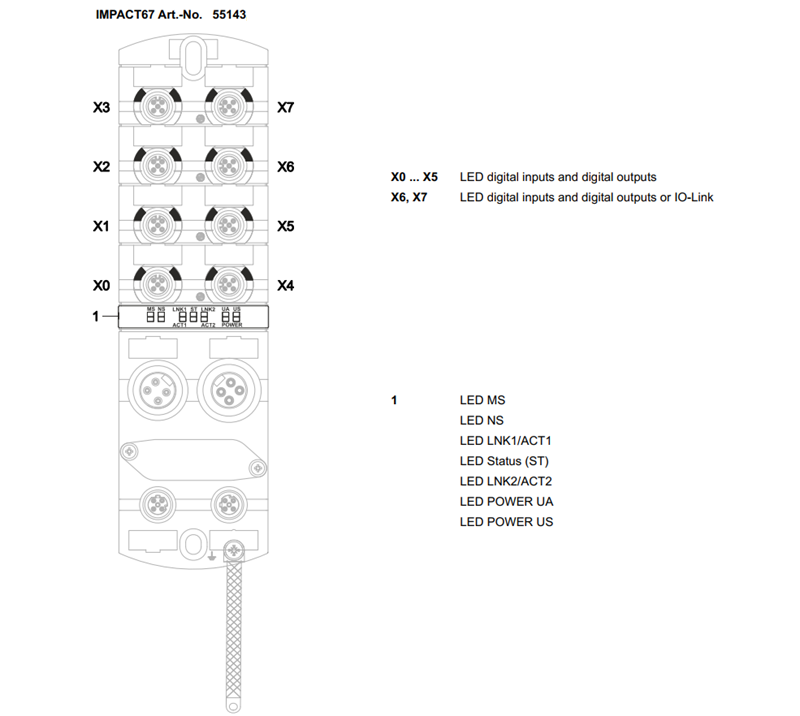

– Chẩn đoán nhanh khi có lỗi thông qua các đèn LED trên mỗi port
– IP67
Thông số kỹ thuật IMPACT67 EthernetIP I/O module Murrelektronik 55143
ELECTRICAL DATA | SUPPLY
| Norm operating voltage | EN 61131-2 |
| Operating voltage US DC | 24 V |
| Operating voltage UA DC | 24 V |
| Total current UA max. | 9 A |
| Total current US max. | 9 A |
ELECTRICAL DATA | INPUT
| Overload resistant | yes |
| Short-circuit protected | yes |
| Type input | PNP, for 3-wire sensors or mechanical switches, IO-Link Devices |
| Sensor current US per input max. | 0,2 A |
ELECTRICAL DATA | OUTPUT
| Overload resistant | yes |
| Short-circuit protected | yes |
| Output current per pin max. | 1,6 A |
| Lamp load | 10 W |
INDUSTRIAL COMMUNICATION | ETHERNET/IP
| CIP Sync | yes |
| Composite Test Revision | CT14 |
| DLR (Device Level Ring) | yes |
| EtherNet/IP addressing | BOOTP, DHCP, DIP switch |
| Multiple connections | yes |
| Supports quick connection (QC) max. | 360 ms |
INDUSTRIAL COMMUNICATION | IO-LINK
| IO-Link type | 2× Master |
| Port Class | B |
| IO-Link transmission rate | COM1, COM2, COM3 |
| IO-Link process data length input | 32 Bytes |
| IO-Link process data length output | 32 Bytes |
| Automatic baudrate detection | yes |
