Hộp nối điện PP 8 lỗ M20 COMBI 308 10060400

Hộp nối điện PP 8 lỗ M20 COMBI 308 10060400

– Hộp nối cho 8 cáp vào theo cable gland M20 x 1.5
– IP66 / IP67
– Gasket TPE
– Kích thước: 85 x 85 x 51mm

(Junction box 85x85x51mm, polypropylene, RAL 7035)

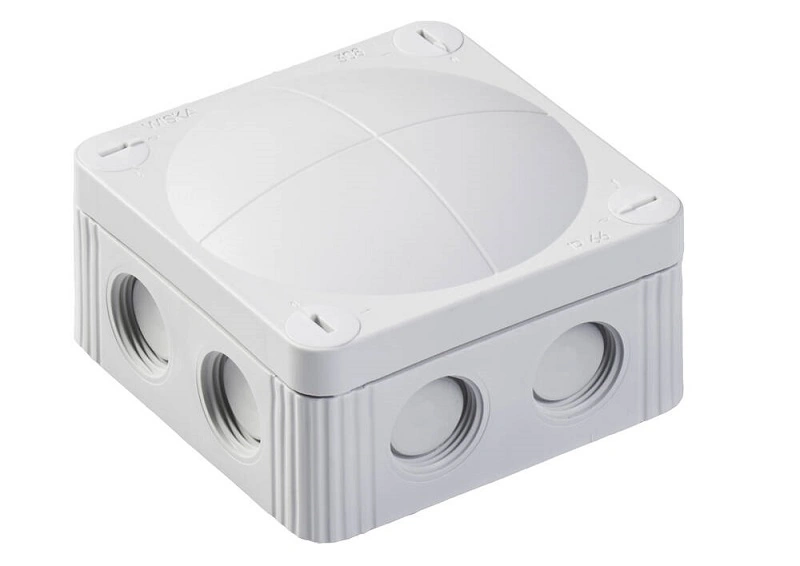

Hộp nối điện PP 8 lỗ M20 COMBI 308 10060400 - body

– Hộp nối cho 8 cáp vào theo cable gland M20 x 1.5
– IP66 / IP67
– Gasket TPE

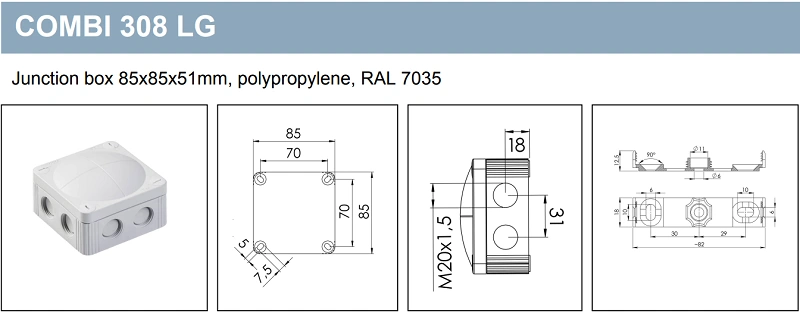

Hộp nối điện PP 8 lỗ M20 COMBI 308 10060400 - detail

– Kích thước: 85 x 85 x 51mm

Thông số kỹ thuật – Hộp nối điện PP 8 lỗ M20 COMBI 308 10060400

Material	Polypropylene
Material sealing gasket	TPE
Temp. range min	-30 °C
Temp. range max	100 °C
Temperatures during install.	-5 °C – 60 °C
Protection class	IP66 / IP67
Glow wire test	750 °C
Voltage	400 V
Rated cross section	4 mm²
Fixing	4 internal openings
Ø cable diameter min	3 mm
Ø cable diameter max	12 mm
External dimensions LxWxH	85 x 85 x 51mm
Type of cable gland	M 20 x 1,5
Using for cable gland
Product Color	RAL 7035
WISKA-Order no.	10060400
Type	COMBI 308 LG
Packing unit	5
ETIM-Classification	EC002600
EAN number	4007685604000
Tariff number	39269097
Remarks: IP66: using the membrane entry IP67: using the threaded entry together with ESKV cable gland Equipment: – 8 M20 threaded membrane entries – 4 captive cover screws – including mounting clip Fixing: With mounting clip or 4 internal openings outside of the sealing area

Datasheet Hộp nối điện PP 8 lỗ M20 COMBI 308 10060400
