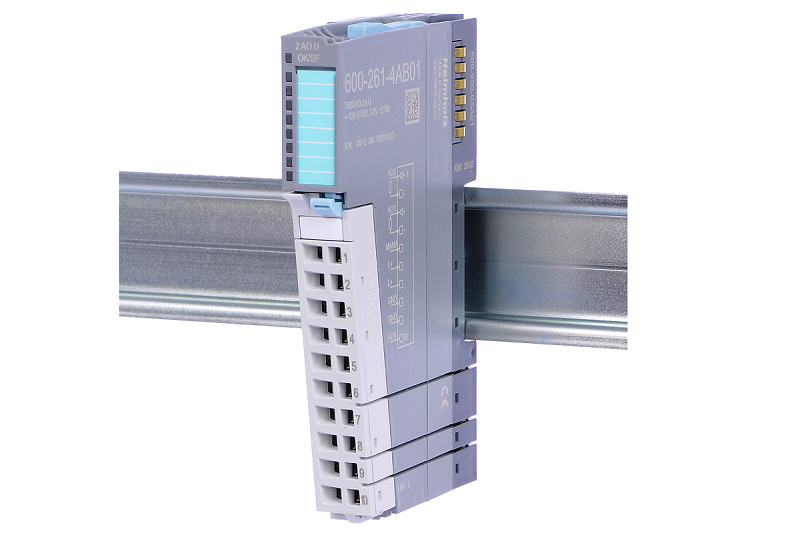

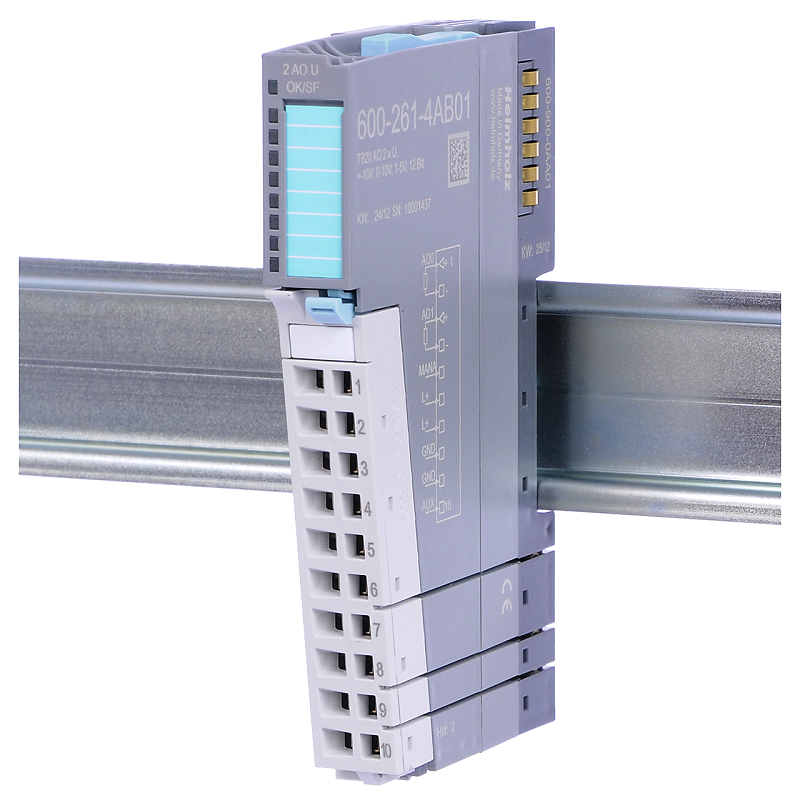

Helmholz Analoge output module, U, 12 Bit 2AO (600-261-4AB01)
Helmholz Analog Output Module 2AO 600-261-4AB01 – mô-đun analog output 2 kênh cho TB20
– 2 kênh ngõ ra analog: +/10 VDC/ 0 … 10 VDC, 1 … 5 VDC, 12 bit
– Có đèn LED cảnh báo màu đỏ
– Có thể tháo lắp “nóng”
Helmholz Analog Output Module 2AO 600-261-4AB01 là mô-đun ngõ ra analog 2 kênh được sử dụng cho hệ thồng I/O TB20
– 2 kênh ngõ ra analog: +/10 VDC/ 0 … 10 VDC, 1 … 5 VDC, 12 bit
– Có đèn LED cảnh báo màu đỏ
– Tháo lắp “nóng”
Thông số kỹ thuật Helmholz Analog Output Module 2AO 600-261-4AB01
General information
- Order number: 600-261-4AB01
- Article name: AO 2 x U, ±10 V, 0–10 V, 1–5 V, 12 bit
- Scope of delivery: AO 2 x U, ±10 V, 0–10 V, 1–5 V, 12 bit
- Dimensions (DxWxH): 110 x 14 x 73 mm
- Weight: 70 g
- Parameter configuration length: 7 bytes
- General error indicator: Red LED
- Hot-swap capable: Yes
- Hot-swap capable: Yes
Output
- Number of outputs: 2
- Measurement resolution: 11 bit + sign
- Refresh time: 2 ms
- Settling time: 2 ms for resistive loads, 2.2 ms for capacitive loads, 0.5 ms for inductive loads (<=1 mH), 3.3 ms for inductive loads (<=3.3 mH)
- Diagnoses: External reference voltage missing (L+), short circuit to GND, parameter assignment error
- Output ranges:
- ±10 V,
- 0–10 V,
- 1–5 V
- Power dissipation: 1.6 W
- Connection for actuators: 2-wire connection
- Load resistance: 1 kohm
- Capacitive load: 1 µF
Electrical isolation
- from the backplane bus: Yes
- Between the channels: No
Current draw
- External: 45 mA
- Internal: 24 mA
- Interna:l 24 mA
Short-circuit protection
- Short-circuit protection: Yes
- Short-circuit current: 25 mA
Error limits
- Operational error limit in the entire temperature range: ±0.5 % relative to the nominal range
- Basic error limit at 25 °C: ±0.3 % relative to the nominal range
- Temperature error: ±0.005 %/K relative to the nominal range
- Linearity error: ±0.05 %/K relative to the nominal range
- Repeating accuracy in steady state at 25 °C: ±0.05 %/K relative to the nominal range
Ambient conditions
- Ambient temperature: 0 °C … +60 °C
- Transport and storage temperature: -20 °C … +80 °C
- Relative air humidity: 95 % r H without condensation
- Protection rating: IP 20
- Certifications: CE, UL
UL
- Surrounding Air Temperature: 0 °C … +60°C
- Pollution degree: 2
CE
- Noise immunity: DIN EN 61000-6-2 “EMC Immunity”
- Interference emission: DIN EN 61000-6-4 “EMC Emission”
- Vibration and shock resistance: DIN EN 60068-2-6:2008 „Vibration“, DIN EN 60068-2-27:2010 „Shock”
