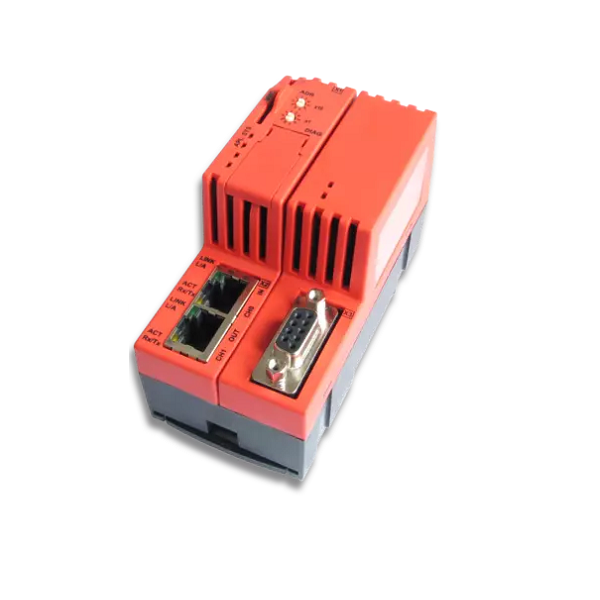

Gateway Hilscher NT 100-RE-DP/+ML 1712.180 + 8211.000
– Mạng Ethernet thời gian thực: EtherCAT Slaves, PROFINET IO-Devices, EtherNet/IP Adapters, Sercos-Slaves
– PROFIBUS Master/ Slaves (license 8211.000)
– Nguồn cấp: 24 V DC ± 6 V
– Kích thước: 100 x 52 x 70 mm
– Bộ nhớ: 8 MB SDRAM
– IP20

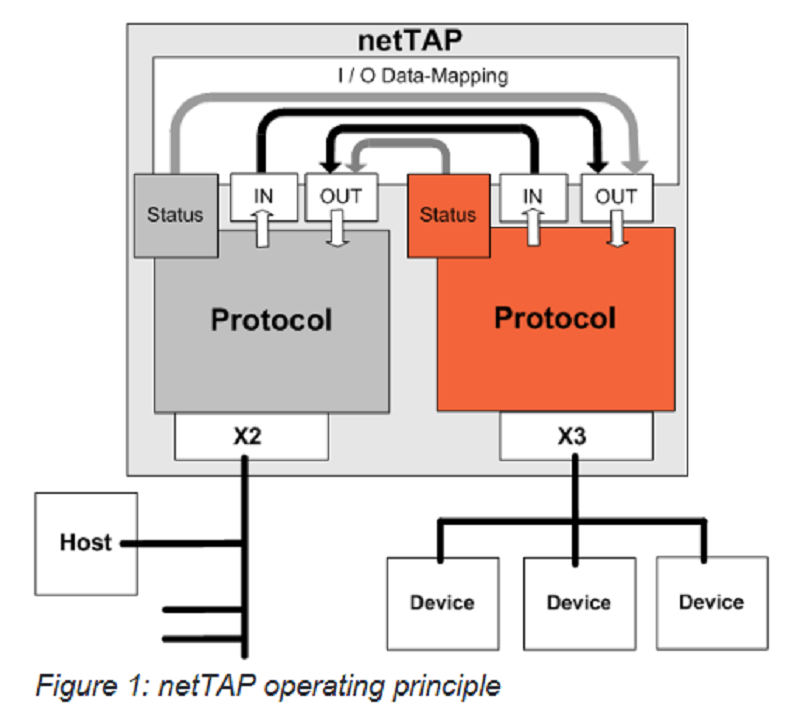

Gateway Hilscher NT 100-RE-DP/+ML 1712.180 + 8211.000 là một thiết bị chuyển đổi giao thức truyền thông công nghiệp, dùng để kết nối và trao đổi dữ liệu giữa các hệ thống mạng ethernet công nghiệp khác nhau và mạng Profibus
– Mạng Ethernet thời gian thực: EtherCAT Slaves, PROFINET IO-Devices, EtherNet/IP Adapters, Sercos-Slaves
– PROFIBUS Master/ Slaves (license 8211.000)
– Bộ nhớ: 8 MB SDRAM
– IP20
– Nguồn cấp: 24 V DC ± 6 V
– Kích thước: 100 x 52 x 70 mm
| Product | Product name | NT 100-RE-DP |
| Part number | 1712.180 | |
| Brief description | Gateway Real-Time-Ethernet to PROFIBUS DP | |
| Communication controller | netX | netX 100 |
| Integrated Memory | RAM | 8 MB SDRAM |
| FLASH | 4 MB serial Flash | |
| Memory card | Type and size | SD or MMC card, max. 2 GByte |
| Power supply | Supply voltage | 24 V DC ± 6 V |
| Maximum Current at 24 V (typically) | 130 mA | |
| Typical power consumption | 3,2 W | |
| Connector | Mini-COMBICON, 2-pin | |
| Reverse voltage protection | yes | |
| Requirement to the power supply | For UL compliant usage: Device shall be supplied by an isolated voltage source | |

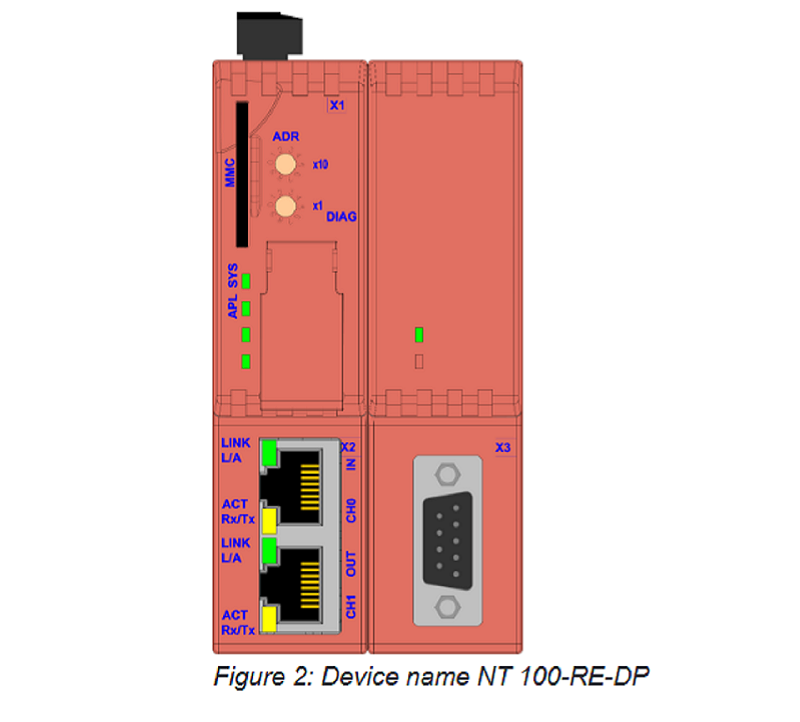

| Communication interface X2 | Communication standard | Ethernet |
| Interface type | 100BASE-TX or 10BASE-T, isolated | |
| Connector | 2 * RJ45 | |
| Communication interface X3 | Communication standard | PROFIBUS-DP |
| Interface type | RS-485, optically isolated | |
| Connector | D-Sub, socket, 9-pin | |
| Diagnostic interface | Type | USB |
| Connector | Mini-USB, 5-pin | |
| Displays | LED displays | SYS System status |
| APL Application status | ||
| LINK Link LED green | ||
| ACT Activity LED yellow | ||
| COM Communication status Duo LED red/green | ||
| Operating elements | Network address | Network address, 2 rotary switches |
| Permitted ambient conditions | Ambient temperature (operation) | 0 … + 60 °C |
| Humidity | no condensation permitted | |
| Pollution degree | For UL-compliant usage: Device must be used in a pollution degree 2 environment | |
| Altitude | 0 … 2000 m | |
| Device | Dimensions (L x W x H) | 100 x 52 x 70 mm (without connector) |
| Weight | appr. 150 g | |
| Degree of protection | IP 20 | |
| Mounting | on DIN rail EN 60715 | |
| Configuration | Configuration software | SYCON.net |
| Conformity | RoHS | Yes |
| UL certification | UL | The device is UL 508 certified |
| UL file | UL-File No E334100 | |
| Conformance with EMC directives | CE sign | Yes |
| UKCA sign | Yes | |
| Emission | CISPR 11 Class A | |
| Immunity | EN 61131-2 / BS EN 61131-2 | |
| Electrostatic discharge (ESD) according to EN 61000-4-2 / BS EN 61000-4-2 (Air discharge method) | ±8 kV Criterion B | |
| Electrostatic discharge (ESD) according to EN 61000-4-2 / BS EN 61000-4-2 (Contact discharge method) | ±4 kV Criterion A | |
| Fast transient interferences (Burst), according to EN 61000-4-4 / BS EN 61000-4-4 | ±2 kV Criterion B | |
| Surge voltage, according to EN 61000-4-5 / BS EN 61000-4-5 (Communication and data lines) | ±1 kV Criterion A |
