Gateway Bihl+Wiedemann BWU3363 là một thiết bị chuyển đổi mạng mạng AS-i và mạng PROFINET
– Giao diện Fieldbus: PROFINET (RJ-45)
– 2 AS-i master
– Điện áp: 30 V DC
– Tích hợp 2-Port-Switch; IRT capability
– Chẩn đoán và cấu hình qua PROFINET

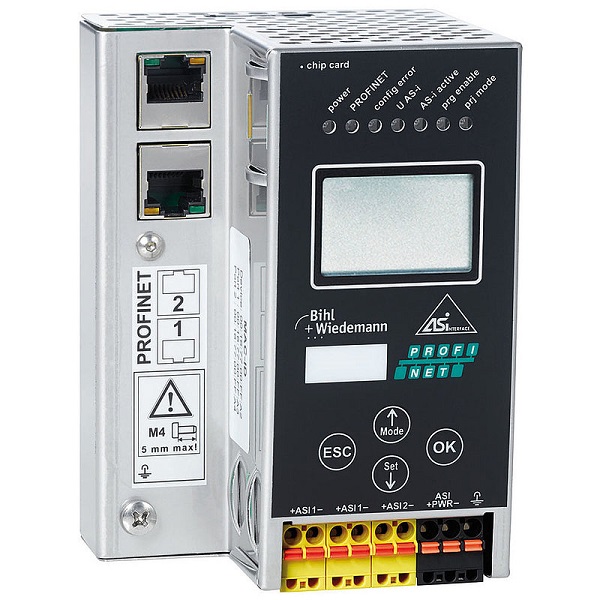

Gateway Bihl+Wiedemann BWU3363
Gateway Bihl+Wiedemann BWU3363
– 2 AS-i master
– Giao diện Fieldbus: PROFINET (RJ-45)
– Điện áp nguồn: 30 V DC
– Tốc độ truyền: 100 MBaud
– IP20
Thông số kỹ thuật – Gateway Bihl+Wiedemann BWU3363
| Article no. | BWU3363 |
| Fieldbus interface | |
| Type | PROFINET
2 x RJ-45, integrated 2-Port-Switch, IRT capability |
| 2 x RJ-45, integrated 2-Port-Switch, IRT capability
Conformance Class B integrated switch complies with Class C (IRT capability) |
|
| Baud rates | 100 MBaud |
| Conformance Class | Class B
integrated switch complies with Class C (IRT capability) |
| Function | PROFINET IO Device
Media Redundancy Protocol (MRP) Shared Device |
| Card slot | Chip card (BW2222) for storage of configuration data |
| ASi | |
| ASi specification | ASi-3 |
| Cycle time | 150 μs * (number of ASi-3 nodes + 2) |
| Operating voltage | 30 VDC (20 … 31,6 V) (PELV voltage) |
| Operating current | ca. 250 mA |

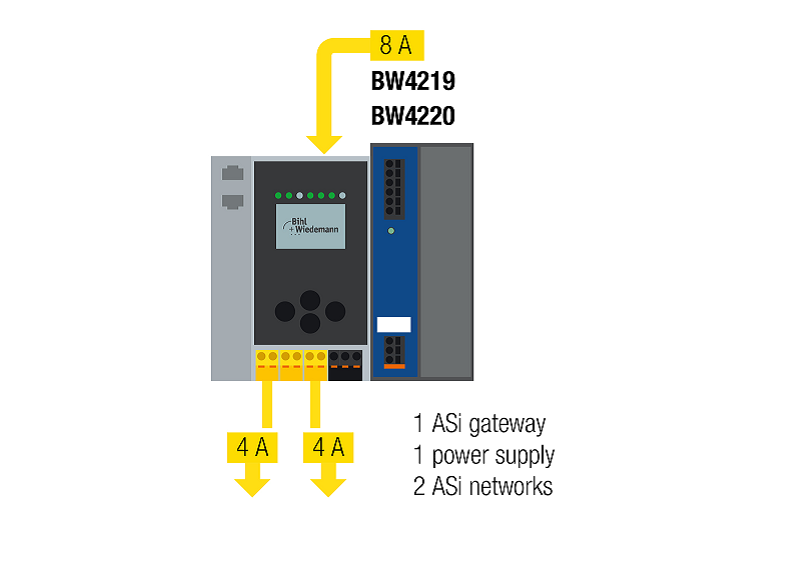

| Current per ASi network | max. 4 A |
| ASi Power24V capability (1) | yes |
| Display | |
| LCD | menu, indication of ASi addresses, error messages in plain text |
| LED power (green) | power ON |
| LED PROFINET (green/red) | green: PROFINET communication activered
red: PROFINET communication not active |
| LED config error (red) | configuration error |
| LED U ASi (green) | ASi voltage o.k. |
| LED ASi active (green) | ASi normal operation active |
| LED prg enable (green) | automatic address programming enabled |
| LED prj mode (yellow) | in configuration mode |
| UL-specifications (UL508) | |
| External protection | An isolated voltage source with a PELV/SELV voltage ≤30 VDC must have internal or external current limiting |
| In general | UL mark does not provide UL certification for any functional safety rating or aspects of the abovedevices. |
| Environment | |
| Applied standards | EN 60529
EN 61000-6-2 EN 61000-6-4 |
| Operating altitude | max. 2000 m |
| Operating temperature | 0 °C … +55 °C |
| Storage temperature | -25 °C … +85 °C |
| Housing | Stainless Steel, for DIN rail mounting |
| Protection category | IP20 |
| Tolerable loading referring to impacts and vibrations | according to EN 61131-2
|
| Voltage of insulation | ≥500 V |
| Weight | 500 g |

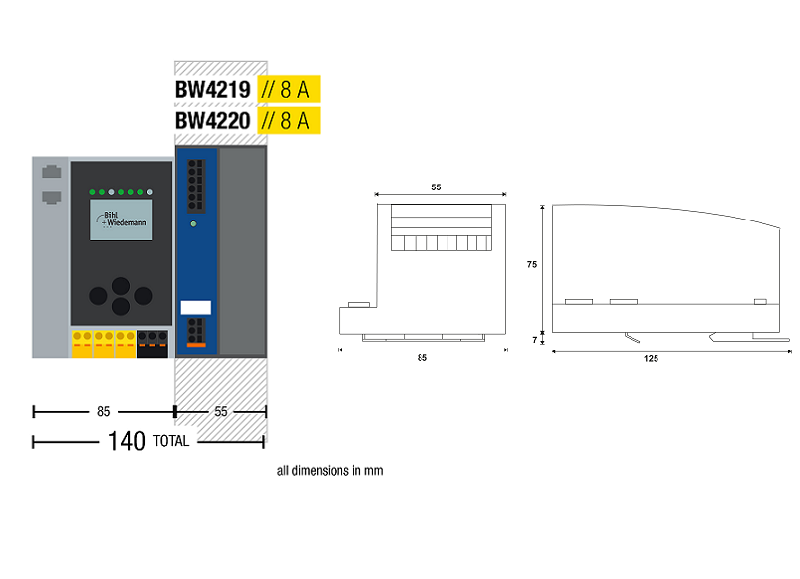

| Dimensions (W / H / D in mm) | 85 / 120 / 83 |
