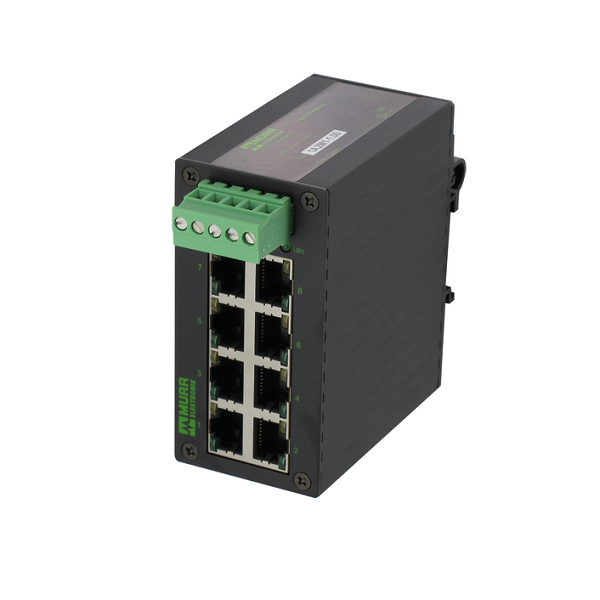

Ethernet switch unmanaged 8 cổng TREE 8TX METALL 58171
– Switch unmanaged, 8 cổng Ethernet, Gigabit
– Tốc độ truyền dữ liệu tối đa: 100 MBit/s
– Plug-in terminals RK
– Cổng kết nối: RJ45
– IP40
Ethernet switch unmanaged 8 cổng TREE 8TX METALL 58171
– Là switch ethernet, unmanaged, 8 cổng Ethernet, Gigabit
– Tốc độ truyền dữ liệu tối đa: 100 MBit/s
– Plug-in terminals RK
– Cổng kết nối: RJ45

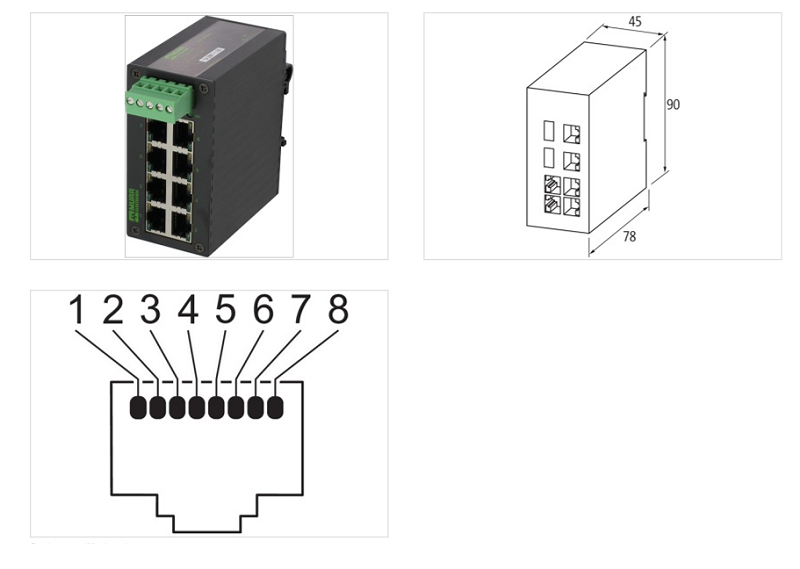

– Kích thước: 78 x 45.2 x 90 mm
Thông số kỹ thuật – Ethernet switch unmanaged 8 cổng TREE 8TX METALL 58171
| Material short text | Tree 8TX Metal |
|---|
| Operating voltage DC min. | 9 V |
|---|---|
| Operating voltage DC max. | 48 V |
| Current consumption max. | 350 mA |
| Data transmission rate max. | 100 Mbit/s |
|---|
| VLAN unmanaged (IEEE 802.1Q) | Yes |
|---|---|
| Switch type | unmanaged |
| duplex | Full duplex |
| Auto-negotiation | Yes |
| Auto-crossover | Yes |
| Alarm contact | No |
|---|---|
| Diagnostic | No voltage |
| LED display | Ethernet connection/data traffic |
| Degree of protection (EN IEC 60529) | IP40 |
|---|---|
| Invers-polarity protection | Yes |
| Over voltage protection | Yes |
| Material housing | Metal |
|---|---|
| Color housing | black |
| Height | 90 mm |
|---|---|
| Width | 45,2 mm |
| Depth | 78 mm |
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, (EN 60715) |
| Operating temperature min. | -10 °C |
|---|---|
| Operating temperature max. | 70 °C |
| Ambient temperature (storage, transport) | -40 °C |
