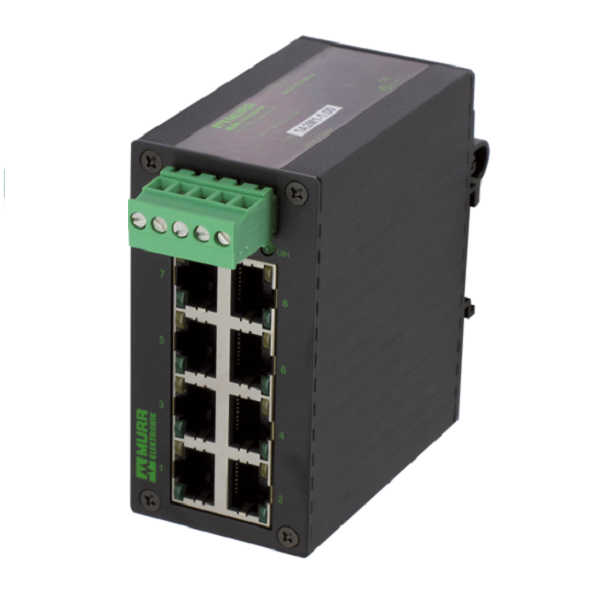

Ethernet switch Murrelektronik 8 port TREE 58171
– 8 cổng Ethernet RJ45
– Tốc độ truyền tín hiệu: 100 MBit/s
– Plug-in terminals RK

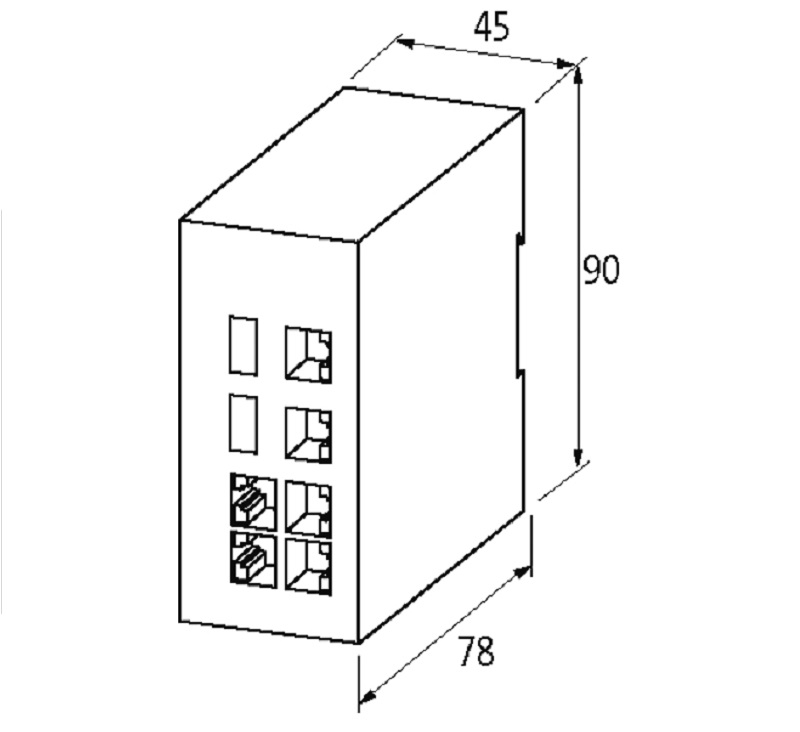

– Kích thước: 78 x 45.2 x 90 mm
– IP40
Ethernet switch Murrelektronik 8 port TREE 58171: là một switch Ethernet unmanaged
– 8 cổng Ethernet RJ45
– Tốc độ truyền tín hiệu: 100 MBit/s
– Plug-in terminals RK
– Kích thước: 78 x 45.2 x 90 mm
Thông số kỹ thuật – Ethernet switch Murrelektronik 8 port TREE 58171
Electrical data | Supply
| Operating voltage DC min. | 9 V |
| Operating voltage DC max. | 48 V |
| Current consumption max. | 350 mA |
Industrial communication
| Data transmission rate max. | 100 MBit/s |
Industrial communication | Ethernet functionality
| Auto-crossover | yes |
| Auto-negotiation | yes |
| duplex | Full duplex |
| Switch type | unmanaged |
| VLAN unmanaged (IEEE 802.1Q) | yes |
Diagnostics
| Alarm contact | no |
| Diagnostic | No voltage |
| LED display | Ethernet connection/data traffic |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP40 |
| Invers-polarity protection | yes |
| Over voltage protection | yes |
Mechanical data | Material data
| Color housing | black |
| Material housing | Metal |
Mechanical data | Mounting data
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, (EN 60715) |
| Height | 90 mm |
| Width | 45,2 mm |
| Depth | 78 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 85 °C |
