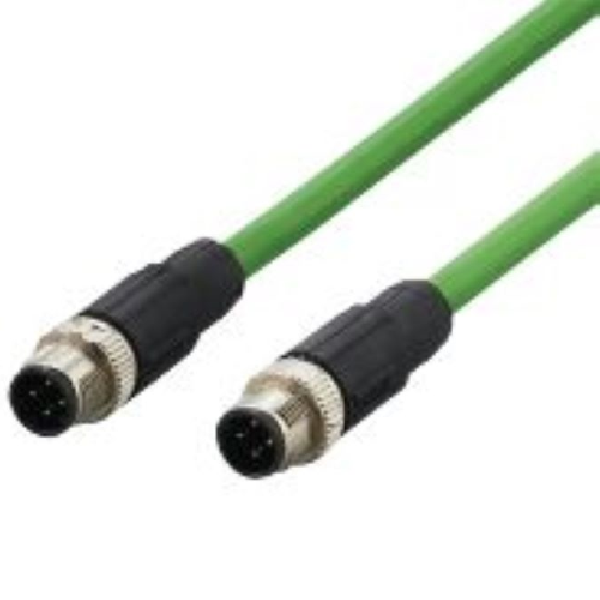

Ethernet cable M12 male to m12 male IFM E21137
– Là đầu nối thẳng, male (đầu nối đực), Có sẵn cáp dài 10m, PVC, M12
– Male, 4 chân, D-cod
– IP 65, IP 67

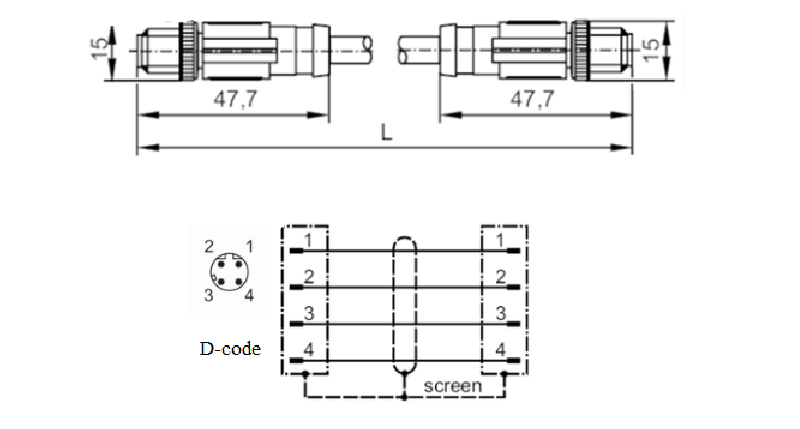

Ethernet cable M12 male to m12 male IFM E21137 là cáp thẳng, có sẵn cáp dài 10m, M12, PVC, male (đầu nối đực), 4 chân, D-cod
– Cable: PVC, green, Ø 6.5 mm, shielded (có giáp chống nhiễu); PROFINET; 4 x 0.34 mm² (7 x Ø 0.25 mm)
– Connector: 1 x M12, straight; coding: D; Moulded body: TPU, black; Locking: diecast zinc, nickel-plated
– Truyền tín hiệu ổn định, có khả năng chống chịu tốt trong môi trường công nghiệp
Thông số kỹ thuật – Ethernet cable M12 male to m12 male IFM E21137
| Special feature | Gold-plated contacts; Screened cable |
| Design | Ethernet cable, D-coded |
| Operating voltage[V] | 48 AC / 60 DC |
| Protection class | III |
| Max. current load total[A] | 4 |
| Ambient temperature[°C] | -25…70 |
| Protection | IP 65; IP 67 |
| Weight[g] | 687 |
| Moulded-body material | TPU |
| Material nut | diecast zinc, nickel-plated |
| Pack quantity | 1 pcs. |
| Connector: 1 x M12, straight; coding: D; Moulded body: TPU, black; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.4 Nm; Shielded connection cable: screen connected |
| Connection | Cable: 10 m, PVC, green, Ø 6.5 mm, shielded; PROFINET; 4 x 0.34 mm² (7 x Ø 0.25 mm ) |
| Connector: 1 x M12, straight; coding: D; Moulded body: TPU, black; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: 0.4 Nm; Shielded connection cable: screen connected |
