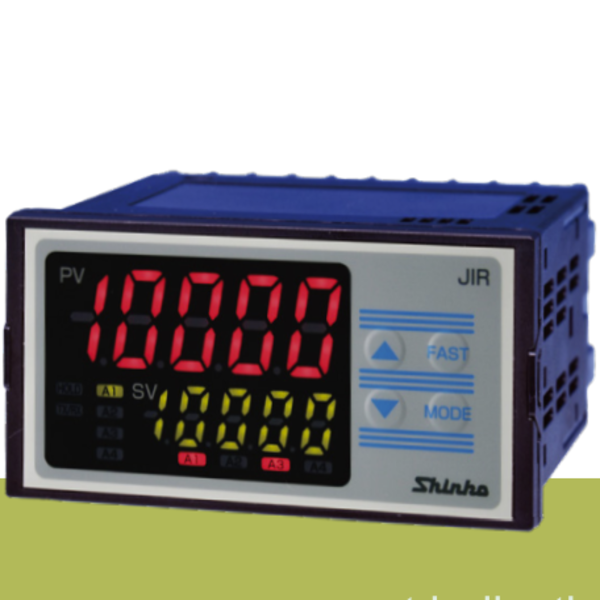

Đồng hồ hiển thị Shinko JIR-301-M - header

Đồng hồ hiển thị Shinko JIR-301-M

Đồng hồ hiển thị số Shinko JIR-301-M

– Multi-input: Thermocouple (10 loại), RTD (2 loại), dòng DC (2 loại) và áp DC (4 loại)
– Ngõ ra 0-20 mA/ 4-20 mA DC transmission
– Nguồn cấp 100 to 240 V AC
– Kích thước W x H x D (mm): 96 x 48 x 100
– IP66 (mặt trước)

Đồng hồ hiển thị số Shinko JIR-301-M

Đồng hồ hiển thị Shinko JIR-301-M - giao diện
– Nhiều loại ngõ vào
Thermocouple (10 loại), RTD (2 loại), dòng DC (2 loại) và áp DC (4 loại)

– Ngõ ra Transmission chuẩn, 3 ngõ ra alarm
– Tín hiệu ngõ ra là 0-20 mA/ 4-20 mA DC transmission.
– 3 ngõ ra alarm được trang bị như một chức năng chuẩn.

– IP66
IP66 (bảo vệ trước mặt tủ) cho phép dùng trong môi trường có hơi nước và bụi.

– Kích thước

Đồng hồ hiển thị Shinko JIR-301-M - kích thước

Thông số kỹ thuật Đồng hồ hiển thị số Shinko JIR-301-M

Spec



Input
Thermocouple K, J, R, S, B, E, T, N, PL-II, C(W/Re5-26)
External resistance: 100  max. (for B input, 40  max.)
RTD Pt100, JPt100 3-wire type (Allowable input lead wire resistance: 10  max. per wire)
Direct current 0 to 20 mA DC, 4 to 20 mA DC
Input impedance: 50  max.
Allowable input current: 50 mA DC max.
DC voltage 0 to 1 V DC
Input impedance: 1 M min.
Allowable input voltage: 5 V DC max.
Allowable signal source resistance: 2 k max.
0 to 5 V DC, 1 to 5 V DC, 0 to 10 V DC
Input impedance: 100 k min.
Allowable input voltage: 15 V DC max.
Allowable signal source resistance: 100  max.
Accuracy
Thermocouple Within 0.2% of each input span 1 digit, or within 2  (4 ), whichever is greater
However R, S inputs, 0 to 200  (32 to 392 ): Within 6  (12 )
B input, 0 to 300  (32 to 572 ): Accuracy is not guaranteed.
K, J, E, T, N inputs, Less than 0  (32 ): Within 0.4% of input span 1 digit
RTD Within 0.1% of each input span1 digit, or within 1  (2 ), whichever is greater
Direct current,
DC voltage		 Within 0.2% of each input span1 digit
Input sampling peirod 125 ms
Event input function Selects Event input function from 3 types of HOLD function and 2 types of Alarm HOLD function. Not available if Serial communication (C5 option) is ordered.
A1 output,
A2 output,
A3 output		 The alarm action point can be set at random (process alarm), and if the input reaches the randomly set action point, the alarm output turns ON or OFF corresponding to the alarm type and Energized/De-energized selection. The alarm type can be selected from; No alarm action, High limit alarm, Low limit alarm, High limit with standby alarm, Low limit with standby alarm and High/Low limit range alarm (for A3 output only). High/Low limit range alarm can be selected when A1 High limit alarm (High limit with standby alarm) and A2 Low limit alarm (Low limit with standby alarm) are combined, or when A1 Low limit alarm (Low limit with standby alarm) and A2 High limit alarm (High limit with standby alarm) are combined.

Action ON/OFF action
Hysteresis 0.1 to 100.0  ()
Direct current, DC voltage input: 1 to 1000 (The placement of the decimal point follows the selection.)
Alarm HOLD function Enables/Disables the Alarm HOLD function.
If Alarm HOLD function is set to “Enabled”, and if the alarm is ON, the alarm output ON status will be maintained until the following is conducted.
• The FAST key is pressed for approx. 3 seconds.
• The power is turned OFF.
• The HOLD is cancelled by the Event input function.
During Alarm HOLD, corresponding alarm action indicator flashes.
Output Relay contact 1a
Control capacity: 3 A 250 V AC (resistive load)
Electrical life: 100,000 cycles
Transmission output 1 Converting the PV to analog signal every 125 ms, outputs the value in direct current. (Unaffected by the HOLD function) (When using the Transmission output 1 value as an input for other instruments, check that the input impedance of these instruments is smaller than the maximum load resistance of Transmission output 1.)

Resolution 12000
Direct current 4 to 20 mA DC (Load resistance: Max. 550 )
Output accuracy Within 0.3% of transmission output span
Response time 400 ms+ Input sampling period (0%→90%)
Power supply voltage
Model JIR-301-M JIR-301-M 1
Power supply voltage 100 to 240 V AC 50/60Hz 24 V AC/DC 50/60Hz
Allowable voltage fluctuation range 85 to 264 V AC 20 to 28 V AC/DC
Power consumption
Supply Voltage Power Consumption
100 to 240 V AC Approx. 8 VA (When maximum options are ordered: Approx.10 VA)
24 V AC Approx. 6 VA (When maximum options are ordered: Approx.9 VA)
24 V DC Approx. 4 W (When maximum options are ordered: Approx.7 W)
Options Serial communication(RS-485),
Alarm output 4(A4),
Insulated power output,
Power for 2-wire transmitter,
Transmission output 2,
User specified transmission output,
Terminal cover, etc.
