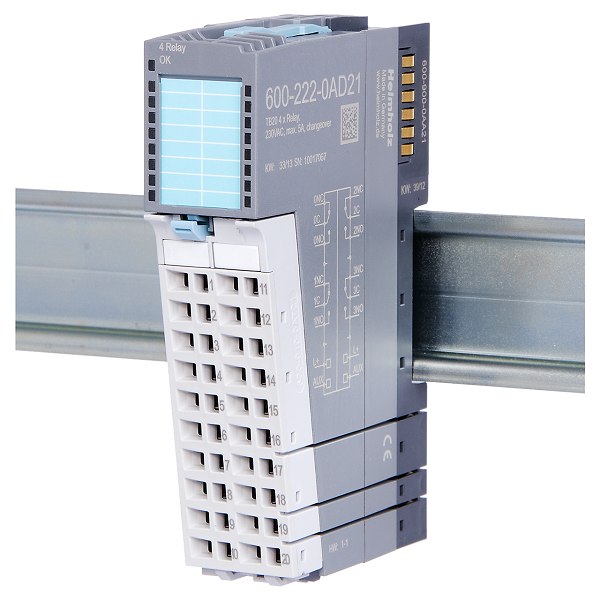

Helmholz Digital Output Module 4 relay output 600-222-0AD21 - header

Digital output module, relay, 5A, changeover 4x – 600-222-0AD21

Helmholz Digital Output Module 600-222-0AD21 là mô-đun ngõ ra relay dùng cho hệ thống I/O TB20

– 4 ngõ ra relay, 5A, 230 VAC, changeover
– Có đèn LED báo trạng thái
– Tháo lắp “nóng”

Helmholz Digital Output Module 4 relay output 600-222-0AD21 là mô-đun ngõ ra relay được sử dụng cho hệ thống I/O TB20

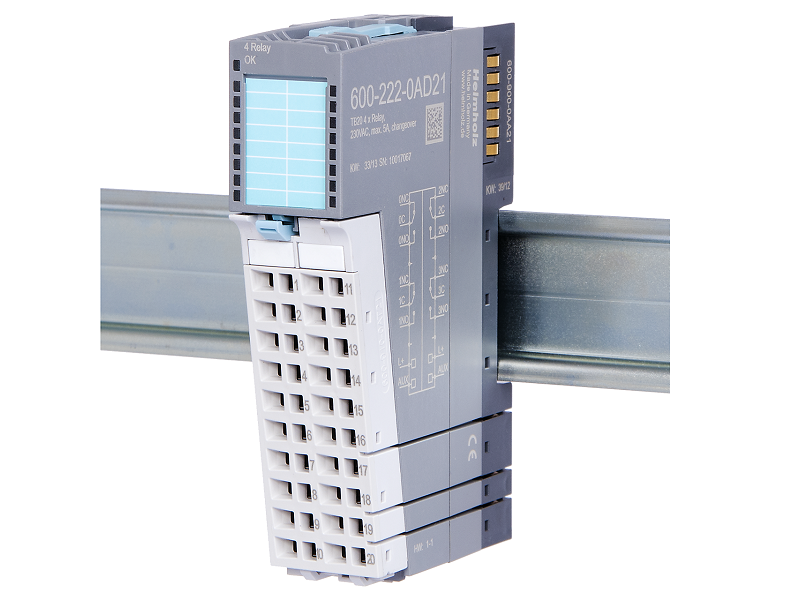

Helmholz Digital Output Module 4 relay output 600-222-0AD21 - body

– 4 ngõ ra relay, 5A, 230 VAC, changeover
– Có đèn LED báo trạng thái hoạt động từng ngõ ra (xanh lá) và LED báo trạng thái mô-đun (xanh dương)
– Tháo lắp “nóng”

Helmholz Digital Output Module 16DO 600-220-0AP21 hotplug

Thông số kỹ thuật Helmholz Digital Output Module 4 relay output 600-222-0AD21

General information

  • Order number600-222-0AD21
  • Article nameDO 4x relays, 5 A, AC 230 V, changeover
  • Scope of deliveryDO 4x relays, 5 A, AC 230 V, changeover
  • Dimensions (DxWxH)110 x 25 x 73 mm
  • Weight 120 g
  • Number of outputs8 (four changeover relays)
  • Hot-swap capableYes

Electrical isolation

  • from the backplane busYes
  • Between the channelsYes

Supply voltage UP, US

  • Rated value24 V DC
  • Ripple USS 3.6 V
  • Permissible range (with ripple)20 … 30 V
  • Voltage for t < 10 ms50 V

Current draw

  • External 60 mA
  • Internal 60 mA

Relays

  • Number4
  • continuous current / max. inrush current5 A/10 A
  • Rated voltage / max. switching voltage250 V AC/400 V AC
  • switching power for utilization category AC-11500 VA
  • switching power AC15 (230 V AC)300 VA
  • Single-phase motor load, AC3 – running (230 V AC)185 kW
  • switching current for utilization category DC-1: 30/110/220 V6/0.2/0.12 A
  • switching capacity500 mW (12 V/10 mA)
  • Mechanical life10 * 106 switching operations
  • Electrical life for utilization category AC-160000 switching operations
  • Dielectric strength, coil to contact6 kV (8 mm)
  • Dielectric strength across open contacts1000 V AC
  • switching frequency (internal protection)10 Hz
  • switching frequency (internal protection)10 Hz

Ambient conditions

  • Ambient temperature0 °C … +60 °C
  • Transport and storage temperature-20 °C … +80 °C
  • Relative air humidity95 % r H without condensation
  • Protection ratingIP 20
  • CertificationsCE, UL

UL

  • Surrounding Air Temperature0 °C … +60°C
  • Pollution degree2

CE

  • Noise immunityDIN EN 61000-6-2 “EMC Immunity”
  • Interference emissionDIN EN 61000-6-4 “EMC Emission”
  • Vibration and shock resistanceDIN EN 60068-2-6:2008 „Vibration“, DIN EN 60068-2-27:2010 „Shock”
