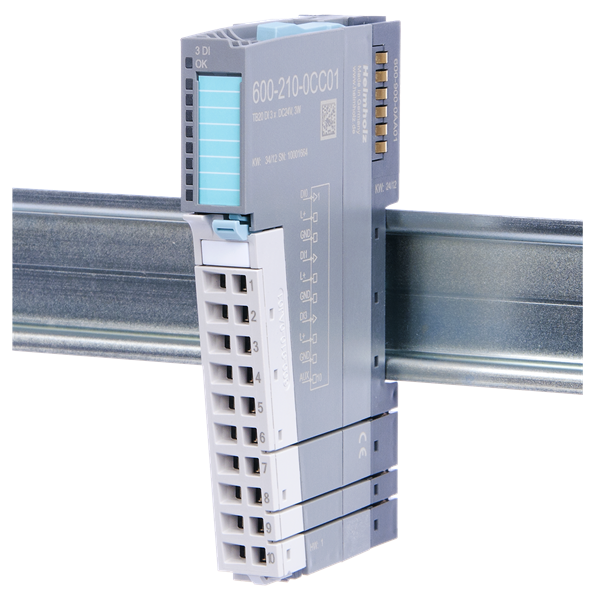

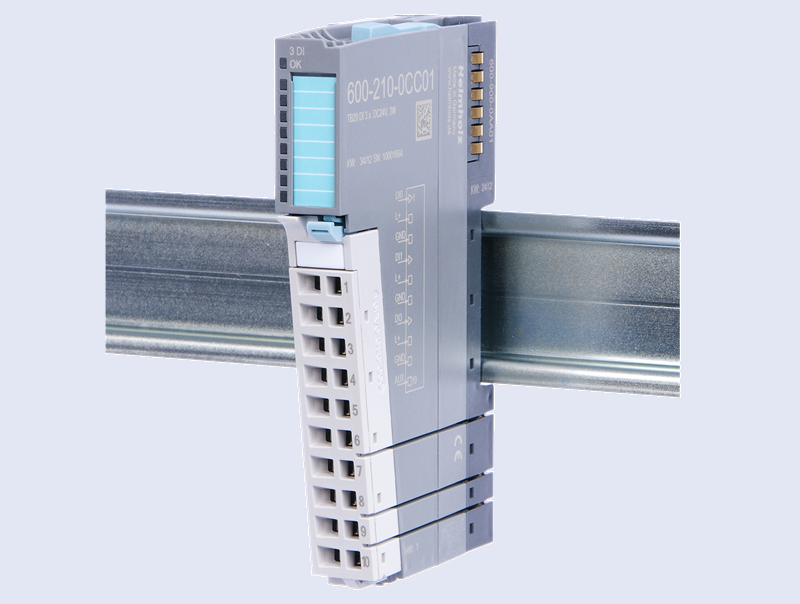

Digital Input 3-wire 3DI DC 24 V 600-210-0CC01

General information

• Order number 600-210-0CC01
• Article name DI 3 x DC 24 V, 3-wire
• Scope of delivery DI 3 x DC 24 V
• Dimensions (DxWxH) 110 x 14 x 73 mm
• Weight Approx. 70 g
• Number of inputs 3
• Power dissipation Max. 0.7 W
• Input characteristic curve Type 2, EN 61131-2
• Reverse polarity protection for inputs Yes
• Hot-swap capable Yes

Electrical isolation

• from the backplane bus Yes
• Between the channels No

Current draw

• External Max. 0 mA
• Internal Max. 22 mA
• Internal Max. 22 mA

Input voltage

• For signal “0” -3 V … 9 V
• For signal “1” 12 V … 30 V
• L+ fuse 4 A
• L+ fuse 4 A

Ambient conditions

• Ambient temperature 0 °C … +60 °C
• Transport and storage temperature -20 °C … +80 °C
• Relative air humidity 95 % r H without condensation
• Protection rating IP 20
• Certifications CE, UL

UL

• Surrounding Air Temperature 0 °C … +60°C
• Pollution degree 2

CE

• Noise immunity DIN EN 61000-6-2 “EMC Immunity”
• Interference emission DIN EN 61000-6-4 “EMC Emission”
• Vibration and shock resistance DIN EN 60068-2-6:2008 „Vibration“, DIN EN 60068-2-27:2010 „Shock”
