Dây cáp Murrelektronik 7000-C0101-6540000
– Trống cáp Ø 355mm (100m)
– 4 ruột × 0.34 mm²
– Điện áp tối đa: 300VAC
– Phù hợp với C-tracks, robot
Dây cáp Murrelektronik 7000-C0101-6540000 được bọc bằng chất liệu PUR (Polyurethane), drum cáp có đường kính Ø 355mm (100m), cấu tạo gồm 4 ruột 0.34 mm²
(PUR 4×0.34 bk UL/CSA+robot+drag ch. 100mm)
– Phù hợp trong lĩnh vục robot, các ứng dụng hàn, cáp có thể hoạt động ổn định trong môi trường yêu cầu chuyển động liên tục
– Phù hợp cho C-tracks
Cáp có thể làm việc trong các điều kiện khắc nhiệt, khả năng chống lại tia UV, chống lửa, hóa chất, xăng dầu tốt, có thể chống lại tia lửa hàn
Thông số kỹ thuật – Dây cáp Murrelektronik 7000-C0101-6540000
General data | Cable
| Cable identification | 654 |
| Cable Type | 5 |
| Jacket Color | black |
| Type of Certificate | cURus |
Structure | Cable
| Amount stranding | 1 |
| Stranding | 4 wires twisted |

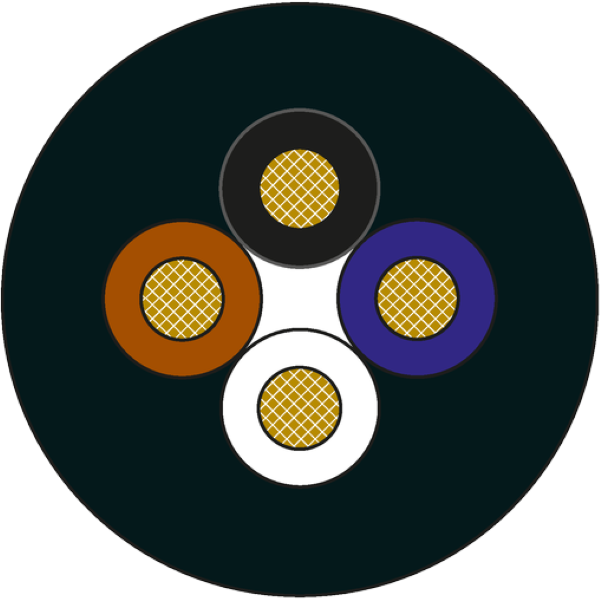

| wire arrangement | brown, black, blue, white |
Mechanical data | Cable
| Cable weigth | 36,3 g/m |
| Material jacket | PUR |
| Shore hardness jacket | 58 ± 3 Shore D |
| Freedom from ingredients (jacket) | lead-free, cadmium-free, CFC-free, halogen-free, silicone-free |
| Outer-diameter (jacket) | 4,7 mm |
| Tolerance outer diameter (sheath) | ± 5 % |
| Material wire insulation | PP |
| Amount wires | 4 |
| Outer diameter insulation | 1,25 mm |
| Outer diameter tolerance core insulation | ± 5 % |
| Shore hardness wire insulation | 74 ± 3 Shore D |
| Ingredient freeness wire insulation | lead-free, cadmium-free, CFC-free, halogen-free, silicone-free |
| Amount strands (wire) | 42 |
| Diameter of single wires | 0,1 mm |
| Conductor crosssection (wire) | 0,34 mm² |
| Material conductor wire | Stranded copper wire, bare |
| Conductor type (wire) | strand class 6 |
Electrical data | Cable
| Nominal voltage AC max. | 300 V |
| Current load capacity (standard) | to DIN VDE 0298-4 |
| Current load capacity min. wire | 4,8 A |
| Electrical resistance line constant wire | 60 Ω/km @ 20 °C |
| AC withstand voltage (wire – wire) | 2,5 kV @ 60 s |
| Power frequency withstand voltage (wire – jacket) | 2,5 kV @ 60 s |
Temperature range | Cable
| Min. operating temperature (static) | -40 °C |
| Max. operating temperature (fixed) | 80 °C / 90 °C @ 10000 h Operation |
| Operating temperature min. (dynamic) | -25 °C |
| Operating temperature max. (dynamic) | 80 °C / 90 °C @ 10000 h Operation |
Resistances | Cable
| UV resistance | DIN EN ISO 4892-2 A |
| Flame resistance | UL 1581 § 1100 FT2 | IEC 60332-2-2 | UL 1581 § 1090 |
| chemical resistance | Good, application-related testing |
| Gasoline resistance | Good, application-related testing |
| Oil resistance | Good, application-related testing | DIN EN 60811-404 |
| Welding spark resistance | Good, application-related testing |
Installation | Cable
| Bending radius (fixed) | 5 x Outer diameter |
| Bending radius (dynamic) | 10 x Outer diameter |
| No. of bending cycles (C-track) | 10 Mio. @ 25 °C |
| Traversing distance (C-track) | 5 m @ 25 °C | horizontal |
| Travel speed (C-track) | 3,3 m/s @ 25 °C |
| No. of torsion cycles | 1 Mio. |
| Torsion stress | ± 360 °/m |
| Torsion speed | 35 cycles/min |
