Dây cáp Murrelektronik 7000-C0101-6300000
– Dây cáp Murrelektronik 7000-C0101-6300000
– Trống cáp Ø 355mm ( 100m)
– 3 lõi dây × 0.25 mm²
– Điện áp tối đa: 300VAC
– Phù hợp với C-tracks
Dây cáp Murrelektronik 7000-C0101-6300000 được bọc bằng chất liệu PUR (Polyurethane), drum cáp có đường kính Ø 355mm (100m), cấu tạo gồm 3 ruột 0.25 mm²
(PUR 3×0.25 bk UL/CSA+drag ch. 100m)
– Cáp có thể hoạt động ổn định trong môi trường yêu cầu chuyển động liên tục
– Phù hợp cho C-tracks
Cáp có thể làm việc trong các điều kiện khắc nhiệt, khả năng chống lại tia UV, chống lửa, hóa chất, xăng dầu tốt
Thông số kỹ thuật – Dây cáp Murrelektronik 7000-C0101-6300000
General data | Cable
| Cable identification | 630 |
| Cable Type | 3 |
| Jacket Color | black |
| Type of Certificate | cURus |
Structure | Cable
| Amount stranding | 1 |
| Stranding | 3 wires twisted |

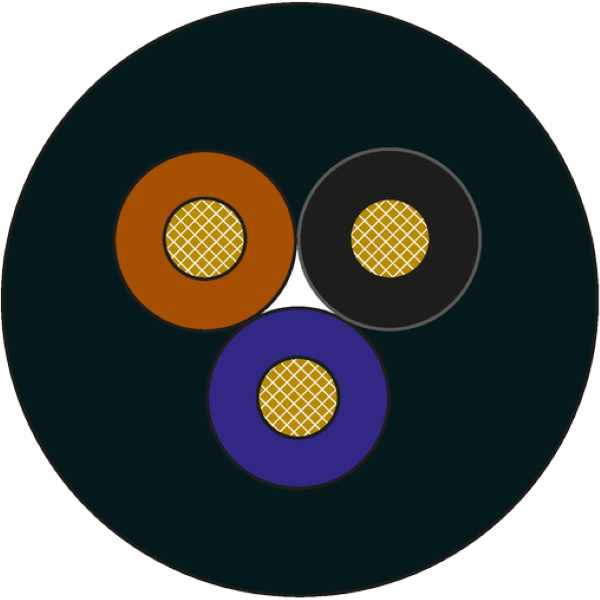

| wire arrangement | brown, black, blue |
Mechanical data | Cable
| Cable weigth | 26,4 g/m |
| Material jacket | PUR |
| Shore hardness jacket | 90 ± 5 Shore A |
| Freedom from ingredients (jacket) | lead-free, cadmium-free, CFC-free, halogen-free, silicone-free |
| Outer-diameter (jacket) | 4,1 mm |
| Tolerance outer diameter (sheath) | ± 5 % |
| Material wire insulation | PP |
| Amount wires | 3 |
| Outer diameter insulation | 1,25 mm |
| Outer diameter tolerance core insulation | ± 5 % |
| Shore hardness wire insulation | 70 ± 5 Shore D |
| Ingredient freeness wire insulation | lead-free, cadmium-free, CFC-free, halogen-free, silicone-free |
| Amount strands (wire) | 32 |
| Diameter of single wires | 0,1 mm |
| Conductor crosssection (wire) | 0,25 mm² |
| Material conductor wire | Stranded copper wire, bare |
| Conductor type (wire) | strand class 6 |
Electrical data | Cable
| Nominal voltage AC max. | 300 V |
| Current load capacity (standard) | to DIN VDE 0298-4 |
| Current load capacity min. wire | 4,5 A |
| Electrical resistance line constant wire | 79 Ω/km @ 20 °C |
| AC withstand voltage (wire – wire) | 2,5 kV @ 60 s |
| Power frequency withstand voltage (wire – jacket) | 2,5 kV @ 60 s |
Temperature range | Cable
| Min. operating temperature (static) | -40 °C |
| Max. operating temperature (fixed) | 80 °C / 90 °C @ 10000 h Operation |
| Operating temperature min. (dynamic) | -25 °C |
| Operating temperature max. (dynamic) | 80 °C / 90 °C @ 10000 h Operation |
Resistances | Cable
| UV resistance | DIN EN ISO 4892-2 A |
| Flame resistance | UL 1581 § 1090 | UL 1581 § 1100 FT2 | IEC 60332-2-2 |
| chemical resistance | Good, application-related testing |
| Gasoline resistance | Good, application-related testing |
| Oil resistance | Good, application-related testing | DIN EN 60811-404 |
Installation | Cable
| Bending radius (fixed) | 5 x Outer diameter |
| Bending radius (dynamic) | 10 x Outer diameter |
| No. of bending cycles (C-track) | 10 Mio. @ 25 °C |
| Traversing distance (C-track) | 10 m @ 25 °C | horizontal |
| Travel speed (C-track) | 3 m/s @ 25 °C |
| No. of torsion cycles | 2 Mio. |
| Torsion stress | ± 180 °/m |
| Torsion speed | 35 cycles/min |
