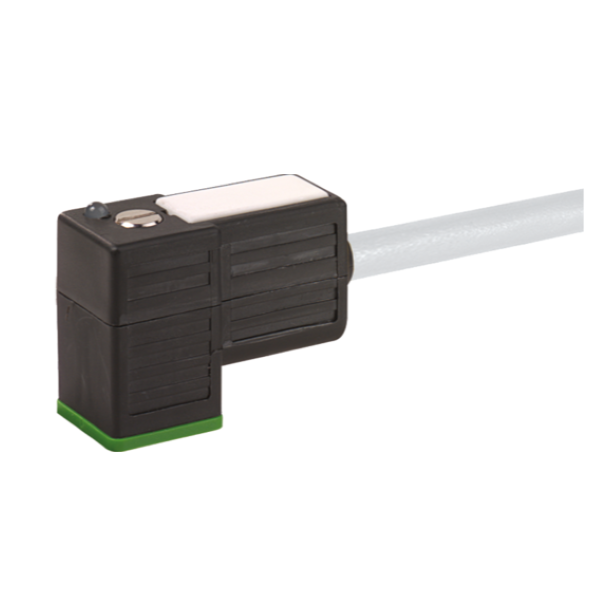

Đầu nối van Murrelektronik MSUD valve plug C-8mm with cable 7000-80021-2260500

Đầu nối van Murrelektronik MSUD valve plug C-8mm with cable 7000-80021-2260500 là đầu nối dùng cho van điện từ, có sẵn cáp dài 5m, 3 chân, Form C (8 mm), họ MSUD
(PUR 3×0.75 gy UL/CSA 5m)
Có LED báo trạng thái, có chống xung áp

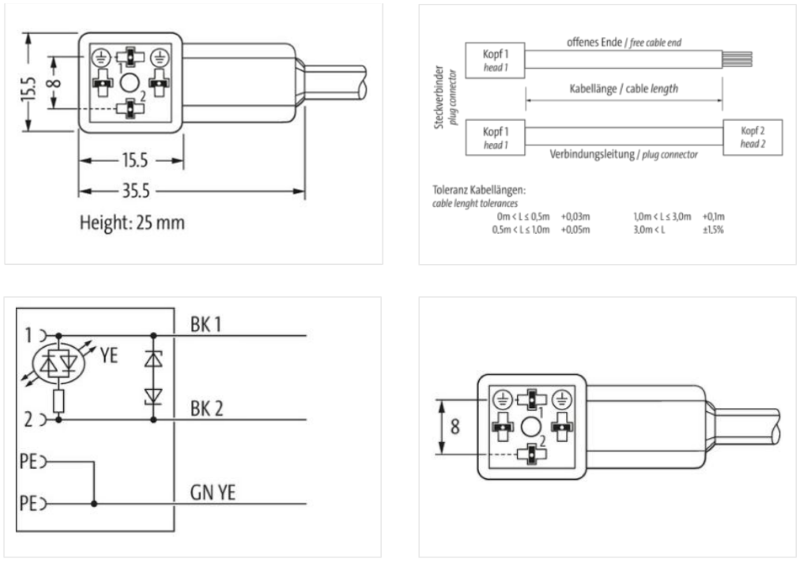

Đầu nối van Murrelektronik MSUD valve plug C-8mm with cable 7000-80021-2260500 - detail

Thông số kỹ thuật – Đầu nối van Murrelektronik MSUD valve plug C-8mm with cable 7000-80021-2260500

Cable length	5 m

Side 1

Tightening torque	0,4 Nm
Thread	M2.5

Electrical data

Drop-out delay time max.	20 ms

Electrical data | Supply

Operating voltage AC	24 V
Operating voltage AC min.	19,2 V
Operating voltage AC max.	28,8 V
Operating voltage DC	24 V
Operating voltage DC min.	18 V
Operating voltage DC max.	30 V
Cut-off peak voltage max.	55 V
Current operating per contact max.	4 A

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP67
Additional condition protection degree	inserted, screwed

Mechanical data | Material data

Color housing	black
Material housing	Plastic

Mechanical data | Mounting data

Mounting method	inserted, screwed

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
