Đầu nối van form BI có 5m cáp 7000-11021-0260500

Đầu nối van form BI có 5m cáp 7000-11021-0260500: là một đầu nối van điện từ, 3 chân, Form BI (11 mm), họ MSUD của Murrelektronik

(PUR 3×0.75 ye UL/CSA 5m)
– Dùng cho van điện từ, có sẵn cáp dài 5m
– Form BI (11 mm), 3 chân, họ MSUD
– Nguồn cấp: 24 V AC ±20% / DC ±25%

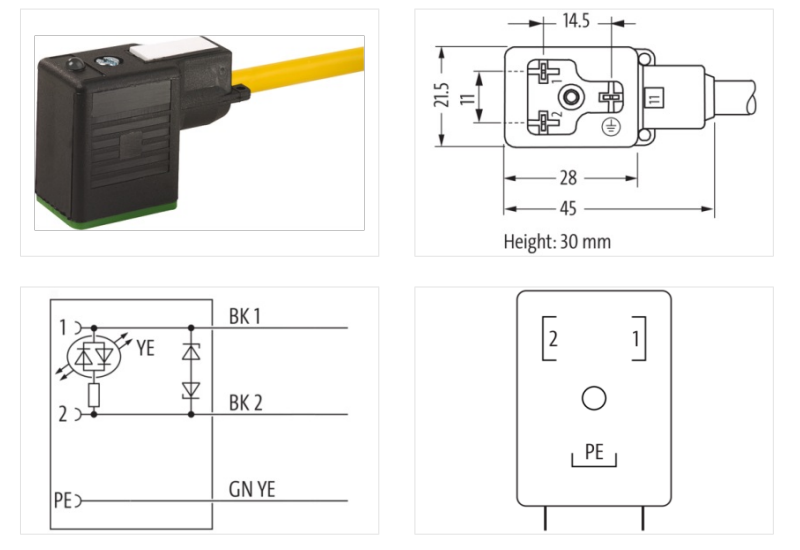

Đầu nối van form BI có 5m cáp 7000-11021-0260500 - DETAIL 1

– Có LED báo trạng thái
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt

Thông số kỹ thuật – Đầu nối van form BI có 5m cáp 7000-11021-0260500

Header

Material short text	MSUDS-IB1Z-026_5.0
Cable length	5,00 m

Side 1

Electrical data

Drop-out delay time max.	20 ms

Electrical data | Supply

Operating voltage AC	24 V
Operating voltage AC min.	19,2 V
Operating voltage AC max.	28,8 V
Operating voltage DC	24 V
Operating voltage DC min.	18 V
Operating voltage DC max.	30 V
Current operating per contact max.	4 A
Cut-off peak voltage max.	55 V
Current consumption max.	15 mA

Diagnostics

Status indication LED	yellow

Installation | Connection

Mounting set	M3x31

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Additional suppressor	Diode, Z-Diode
Rated surge voltage	0,8 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
