Đầu nối van form A có 5m cáp 7000-18061-2260500
– Dùng cho van điện từ, có sẵn cáp dài 5m
– Form A (18 mm), 3 chân, họ MSUD
– Nguồn cấp: 230 V AC/DC ±10%
– Có LED báo trạng thái
– IP67
Đầu nối van form A có 5m cáp 7000-18061-2260500: dùng cho van điện từ hoặc công tắc áp lực, có sẵn cáp dài 5m, 3 chân, Form A (18 mm), họ MSUD của Murrelektronik
– PUR 3×0.75 gy UL/CSA 5m
– Có LED báo trạng thái
– Nguồn cấp: 230 V AC/DC ±10%
– Vỏ nhựa có khả năng kháng dầu và hóa chất tốt

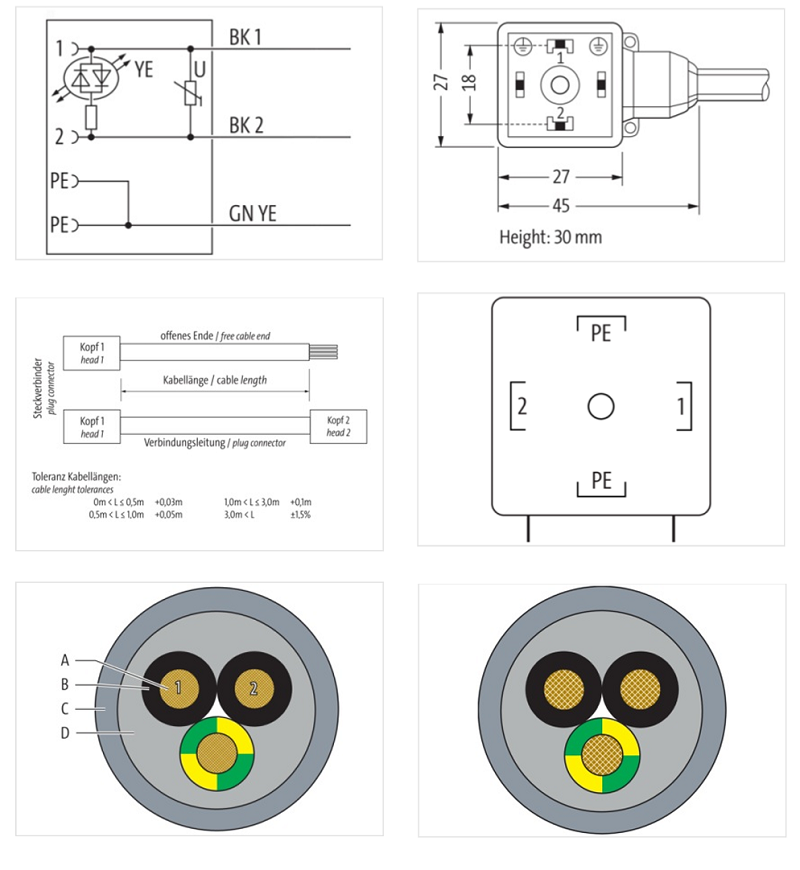

Thông số kỹ thuật – Đầu nối van form A có 5m cáp 7000-18061-2260500
| Cable length | 5,00 m |
|---|
| Family construction form | Valve connector form A |
|---|---|
| Mounting method | inserted, screwed |
| Thread | M3x31 |
| Tightening torque | 0,4 Nm |
| Material | PBT |
| Degree of protection (EN IEC 60529) | IP67 |
| Drop-out delay time max. | 20 ms |
|---|
| Operating voltage AC | 230 V |
|---|---|
| Operating voltage AC min. | 207 V |
| Operating voltage AC max. | 253 V |
| Operating voltage DC | 230 V |
| Operating voltage DC min. | 207 V |
| Operating voltage DC max. | 253 V |
| Current operating per contact max. | 4 A |
| Cut-off peak voltage max. | 560 V |
| Mounting set | M3x31 |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Material housing | Plastic |
|---|---|
| Color housing | Black |
| Material screw connection | Steel |
| Coating of fitting | galvanized |
| Mounting method | inserted, screwed |
|---|
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
