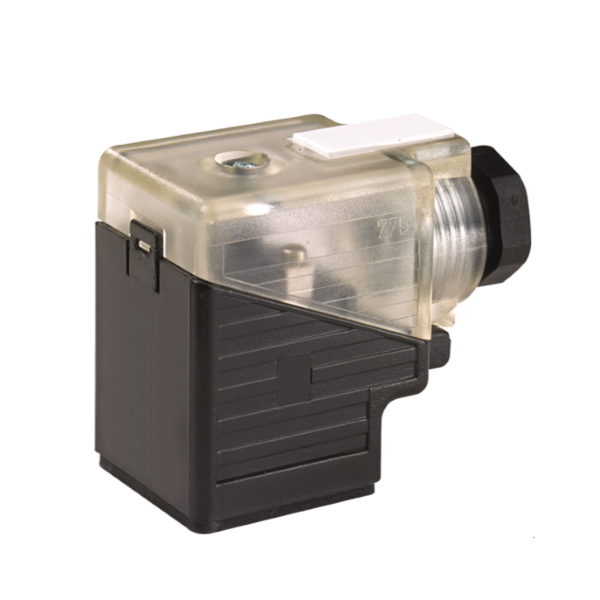

Đầu nối van form A 18mm Murrelektronik 7000-29041-0000000
– 2 chân + PE, Form A (18 mm)
– Điện áp 24 V AC/DC ±25%
– LED và RC
– Screwed terminal
– IP65
Đầu nối van form A 18mm Murrelektronik 7000-29041-0000000 là đầu nối dùng cho van điện từ/ công tắc áp lực, Form A (18 mm), 2 chân + PE. Họ SVS Eco
(24V LED+RC M16x1.5)
Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt.

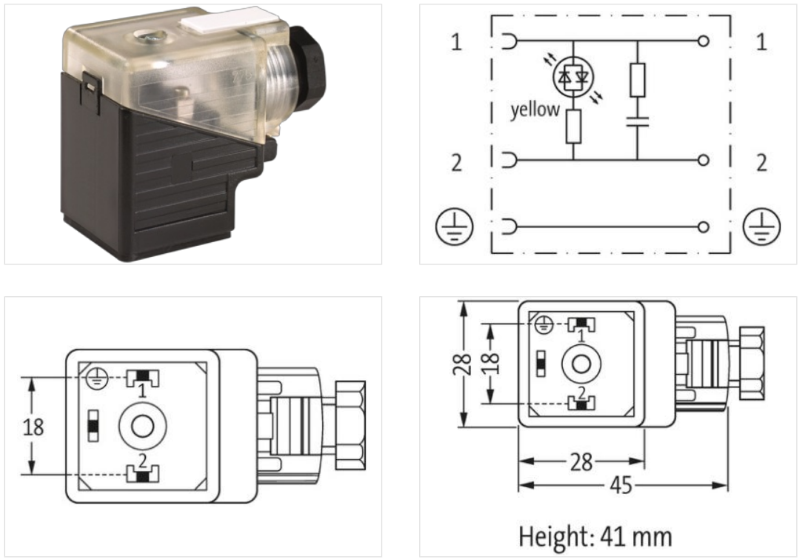

Thông số kỹ thuật – Đầu nối van form A 18mm Murrelektronik 7000-29041-0000000
Side 1
| Degree of protection (EN IEC 60529) | IP65 |
Electrical data | Supply
| Operating voltage AC | 24 V |
| Operating voltage DC | 24 V |
| Current operating per contact max. | 2 A |
Diagnostics
| Status indication LED | yellow |
Installation | Connection
| Tightening torque | 0,4 Nm |
| Mounting set | M3 |
Installation | Pin assignment
| No. of poles | 2 + PE |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
