Đầu nối tín hiệu M12 male 0° A-code Push-Lock 5 chân 7000-13901-0000000
– Là đầu nối thẳng, M12
– Male (đực) 0°, 5 chân, A-code
– Kết nối kiểu Push-Lock
– IP67, IP65
Đầu nối tín hiệu M12 male 0° A-code Push-Lock 5 chân 7000-13901-0000000 là đầu nối dùng để kết nối tín hiệu điều khiển, không cáp
– 5-pol., 0,08 – 0,75mm², 4 – 8mm
– M12, A-code, 5 chân
– Kết nối kiểu Push-Lock
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

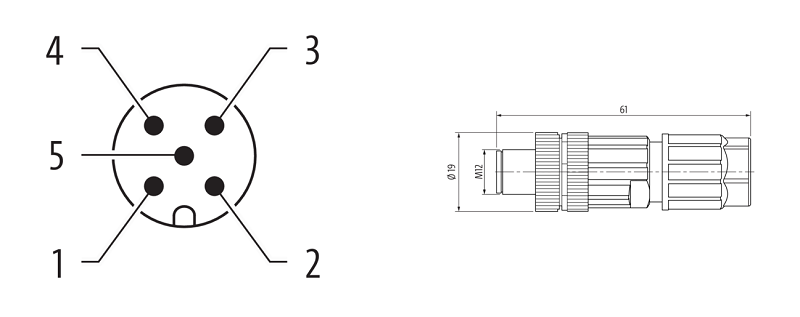

Thông số kỹ thuật – Đầu nối tín hiệu M12 male 0° A-code Push-Lock 5 chân 7000-13901-0000000
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.4 Nm |
| Cable outlet | straight |
| Material contact | Bronze |
| Degree of protection (EN IEC 60529) | IP67, IP65 |
| Family construction form | Push-Lock spring clamp connection |
|---|---|
| Mounting method | field-wireable |
| Operating voltage AC | 48 V |
|---|---|
| Operating voltage DC | 60 V |
| Operating current per contact max. (40°C) | 4 A |
| Operating voltage AC max. (UL-listed) | 250 V |
| Current operating per contact (UL) | 4 A |
| Status indication LED | no |
|---|
| Cross section connection with wire end ferrule min. | 0.08 mm² |
|---|---|
| Cross section connection with wire end ferrule max. | 0.5 mm² |
| Cross section connection with wire end ferrule AWG min. | 28 |
| Cross section connection with wire end ferrule AWG max. | 20 |
| Cross section connection without wire end ferrule min. | 0.14 |
| Cross section connection without wire end ferrule max. | 0.75 |
| Cross section connection without wire end ferrule AWG min. | 26 |
| Cross section connection without wire end ferrule AWG max. | 18 |
| Mating cycles min. | 100 |
|---|---|
| Connection information | Push-Lock spring clamp connection |
| Coding | A |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Overvoltage category (EN 60950-1) | II |
| Insulation resistance min. | 100 kΩ |
| Material housing | PA |
|---|---|
| Material contact carrier | PA66 |
| Coating contact | gold plated |
| Material gasket | NBR |
| Combustibility class (UL94) | V-0 |
| Mounting method | inserted, screwed, Shaking protection |
|---|---|
| Clamping range min. | 4 mm |
| Clamping range max. | 8 mm |
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
