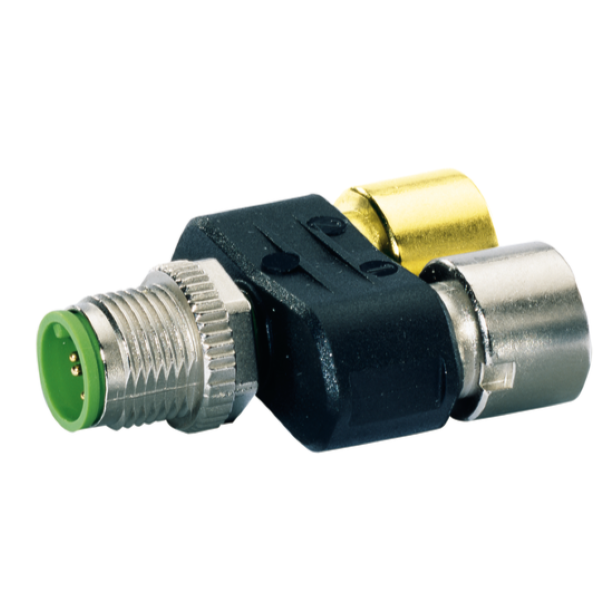

Đầu nối T-Coupler M12 male / 2x M12 female A-code 7000-41131-0000000
– Là đầu nối chuyển đổi: 1 x M12 male (đực) 5 chân –> 2 x M12 female (cái) 4 chân
– A-cod
– Pluggable, screwed
– IP67

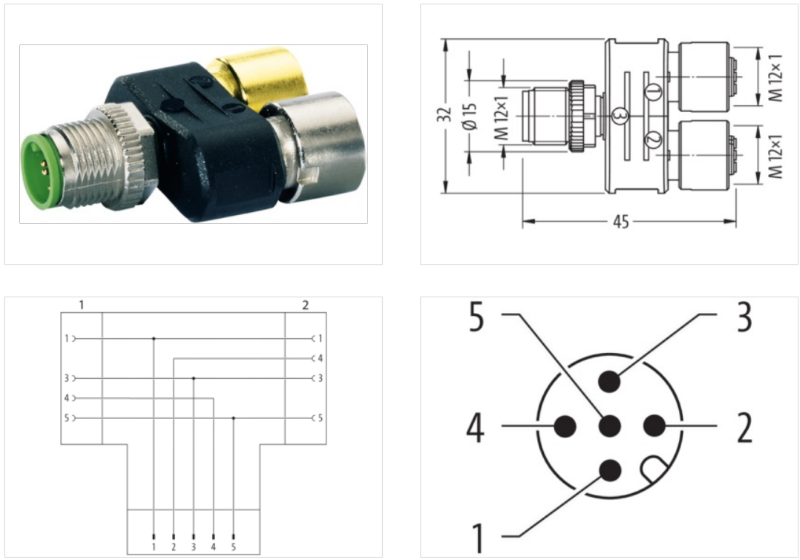

Đầu nối T-Coupler M12 male / 2x M12 female A-code 7000-41131-0000000 là đầu nối chia hình chữ T dùng cho kết nối công nghiệp, gồm 1 đầu đực M12 (5 chân, A-code) và 2 đầu cái M12 (4 chân, A-code), giúp chia tín hiệu hoặc nguồn giữa các thiết bị làm tăng tính linh hoạt cho việc kết nối
(5-pol. / 2x 4-pol)
Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Thông số kỹ thuật – Đầu nối T-Coupler M12 male / 2x M12 female A-code 7000-41131-0000000

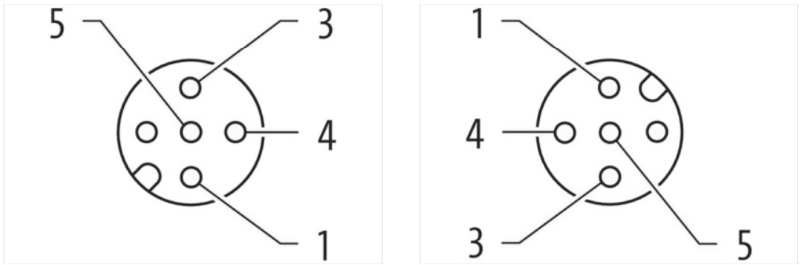

Side 1
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
Side 3
| Family construction form | M12 |
| No. of poles | 5 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
Diagnostics
| Status indication LED | no |
Installation | Connection
| Tightening torque | 0.6 Nm |
| Mounting set | M12 x 1 |
| Width across flats | SW 13 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1.5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material screw connection | Zinc die-casting |
| Coating of fitting | brass-plated, nickel plated |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | DIN EN 61076-2-101 |
