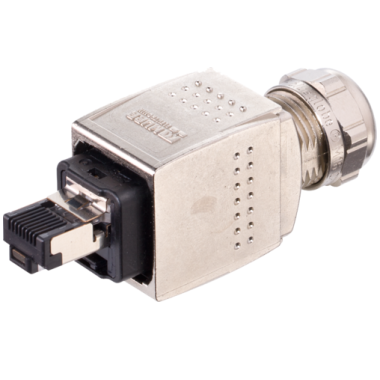

Đầu nối RJ45 push-pull 7000-74041-0000000 Murrelektronik
– Là đầu nối thẳng, male

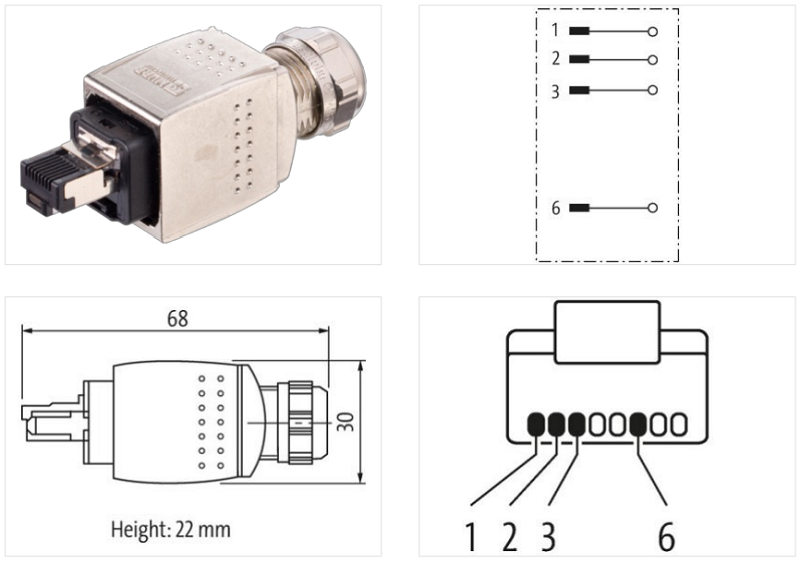

– RJ45PP, 4 chân
– IDC terminals
– IP65, IP67
Đầu nối RJ45 push-pull 7000-74041-0000000 Murrelektronik là đầu nối thẳng, RJ45PP, male (đực), 4 chân, công nghệ kết nối nhanh gọn, tiện lợi, an toàn
Phù hợp trong tự động hóa công nghiệp để truyền dữ liệu giữa các thiết bị mạng Ethernet
Thông số kỹ thuật – Đầu nối RJ45 push-pull 7000-74041-0000000 Murrelektronik
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 2 A |
Industrial communication
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Data transmission rate max. | 100 MBit/s |
Industrial communication | Ethernet functionality
| duplex | Full duplex |
Installation
| Connection cross section min. | 0,14 mm² |
| Connection cross section max. | 0,34 mm² |
| AWG number min. | 26 |
| AWG number max. | 22 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67 |
| Additional condition protection degree | inserted, screwed |
Mechanical data | Mounting data
| Clamping range min. | 4 mm |
| Clamping range max. | 11 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | IEC 61076-3-117 V.14 |
