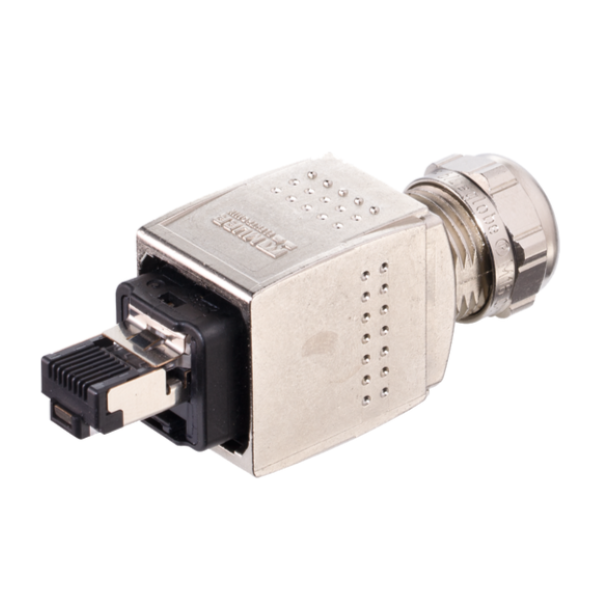

Đầu nối RJ45 CAT5 push-pull male IDC 4 chân 7000-74041-0000000
– Là đầu nối thẳng, male
– RJ45PP, 4 chân
– IDC terminals
– IP65, IP67
Đầu nối RJ45 CAT5 push-pull male IDC 4 chân 7000-74041-0000000 là đầu nối thẳng, RJ45PP, male (đực), 4 chân, công nghệ kết nối nhanh gọn, tiện lợi, an toàn push-pull
( 4-pol., 0,14 – 0,34mm², 4,5 – 11mm, shielded, CAT5 )
– PROFINET, RJ45PP, 4 chân
– IDC terminals (hàn)
– Tốc độ truyền tín hiệu: 100 MBit/s
Sản phẩm tương tự – Đầu nối nguồn Murrelektronik kiểu push-pull 7000-99601-0000000

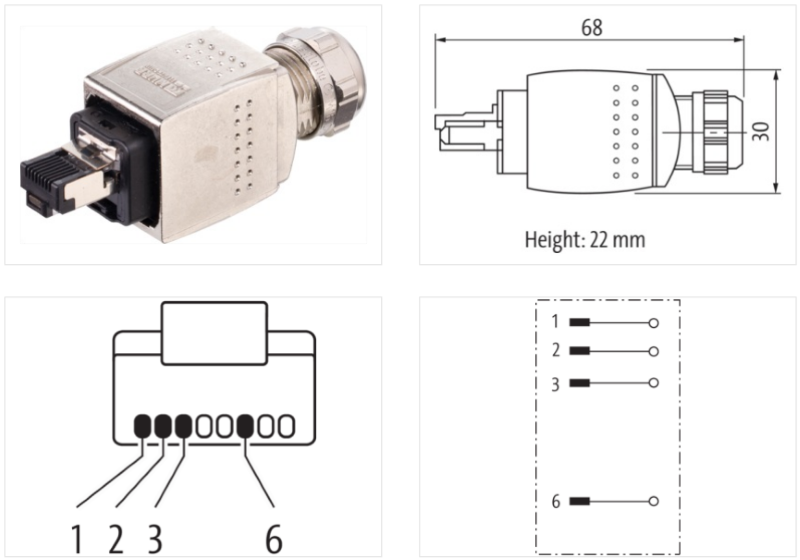

Thông số kỹ thuật – Đầu nối RJ45 CAT5 push-pull male IDC 4 chân 7000-74041-0000000
Side 1
| Family construction form | RJ45 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 2 A |
Industrial communication
| Data transmission rate max. | 100 MBit/s |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
Industrial communication | Ethernet functionality
| duplex | Full duplex |
Installation
| Connection cross section min. | 0.14 |
| Connection cross section max. | 0.34 |
| AWG number min. | 26 |
| AWG number max. | 22 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67, IP65 |
| Additional condition protection degree | inserted, screwed |
Mechanical data | Mounting data
| Clamping range min. | 4 mm |
| Clamping range max. | 11 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | IEC 61076-3-117 V.14 |
