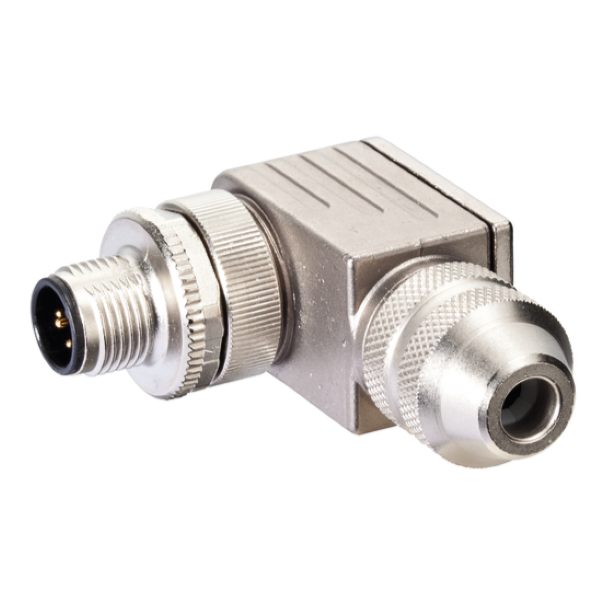

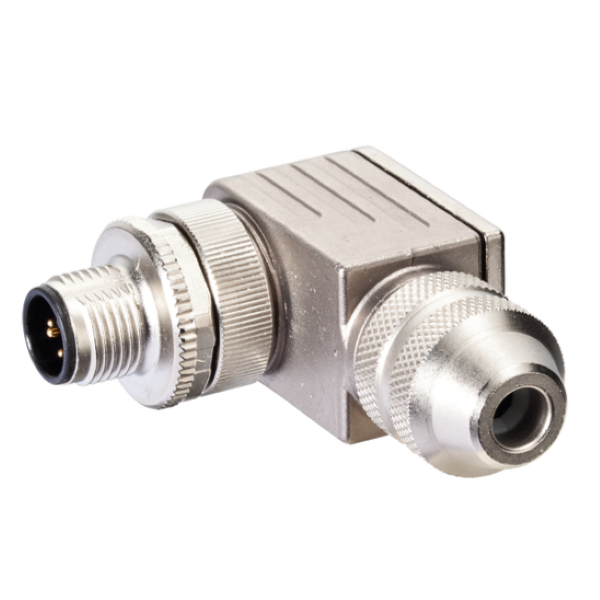

Đầu nối Profibus M12 male 90° B-code chống nhiễu 7000-14011-0000000
– Đầu nối M12, 5 chân, B-code
– Đầu nối đực, 90°
– IP67
Đầu nối Profibus M12 male 90° B-code chống nhiễu 7000-14011-0000000 là đầu nối M12, 5 chân, loại đực, B-code, dùng cho kết nối PROFIBUS hoặc Interbus
Thiết kế chống nhiễu, đầu nối dây bằng ốc siết (screw terminal), phù hợp với cáp đường kính 6–8 mm. Đảm bảo kết nối chắc chắn, tín hiệu ổn định trong môi trường công nghiệp.
(5-pol., max. 0.75mm², 6 – 8mm, shielded)

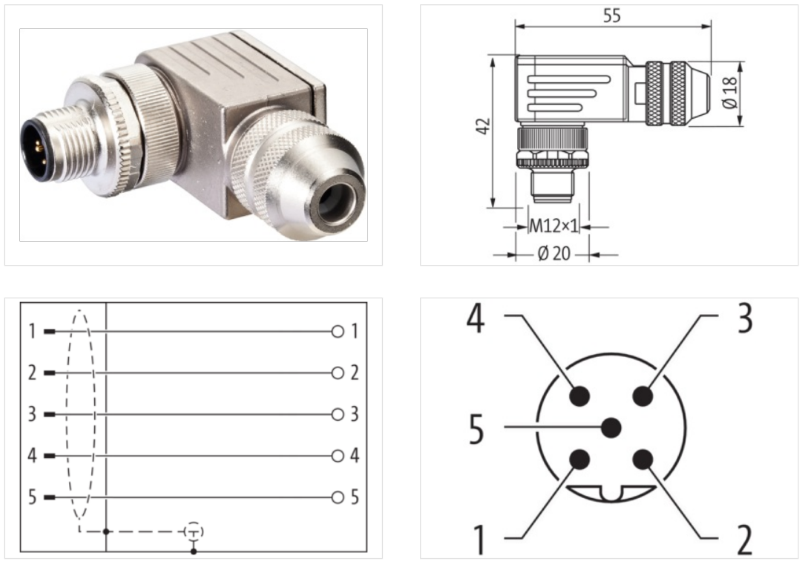

Thông số kỹ thuật – Đầu nối Profibus M12 male 90° B-code chống nhiễu 7000-14011-0000000
Side 1
| Family construction form | M12 |
| No. of poles | 5 |
| Coding | B |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW18 |
| Cable outlet | angled |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Mounting method | field-wireable |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Installation
| Rotation option | 90° (4 outlet directions) |
| Connection cross section max. | 0.75 mm² |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0.8 kV |
| Material group (IEC 60664-1) | III |
Mechanical data | Material data
| Material housing | Brass |
| Coating housing | nickel plated |
Mechanical data | Mounting data
| Clamping range min. | 6 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
