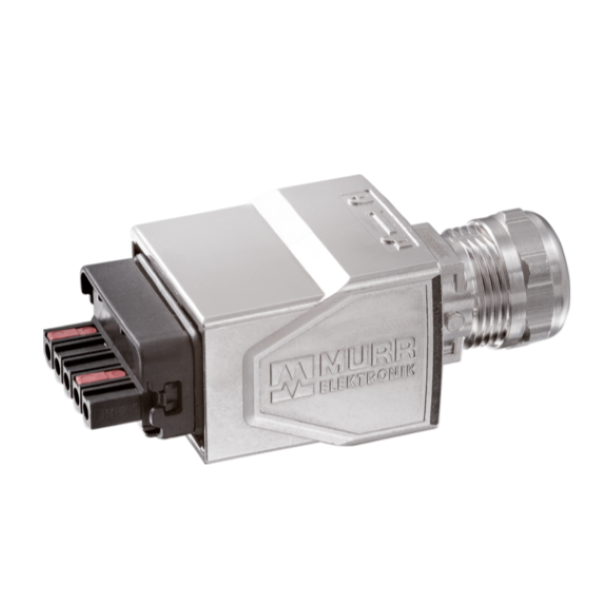

Đầu nối nguồn Murrelektronik kiểu push-pull 7000-99601-0000000
– Là đầu nối thẳng, male, 5 chân, PPP
– Spring clamp terminals
– Push Pull Power
– IP65, IP67
Đầu nối nguồn Murrelektronik kiểu push-pull 7000-99601-0000000 là đầu nối thẳng, PPP, 5 chân, sử dụng kiểu đấu nối Spring clamp tiện lợi và an toàn
(5-pol., 0,75 – 2,5mm², 9 – 13mm)
Thông só kỹ thuật – Đầu nối nguồn Murrelektronik kiểu push-pull 7000-99601-0000000
| Operating voltage AC max. | 24 V |
| Operating voltage DC max. | 24 V |
| Current operating per contact max. | 16 A |
Installation
| Connection cross section min. | 0,75 mm² |
| Connection cross section max. | 2,5 mm² |
| AWG number min. | 18 |
| AWG number max. | 14 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 2 |
| Rated surge voltage | 4 kV |
Mechanical data | Material data
| Coating housing | Nickeled |
| Material housing | Zinc die-casting |
Mechanical data | Mounting data
| Clamping range min. | 9 mm |
| Clamping range max. | 13 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
